Caterpillar Engine Tools Cat Overhaul 3512 Page 100

Operation and Maintenance Manual

Page of 420

/ 420

2590058

2590080

3-100

Engine Tools

Cylinder Block and Liners

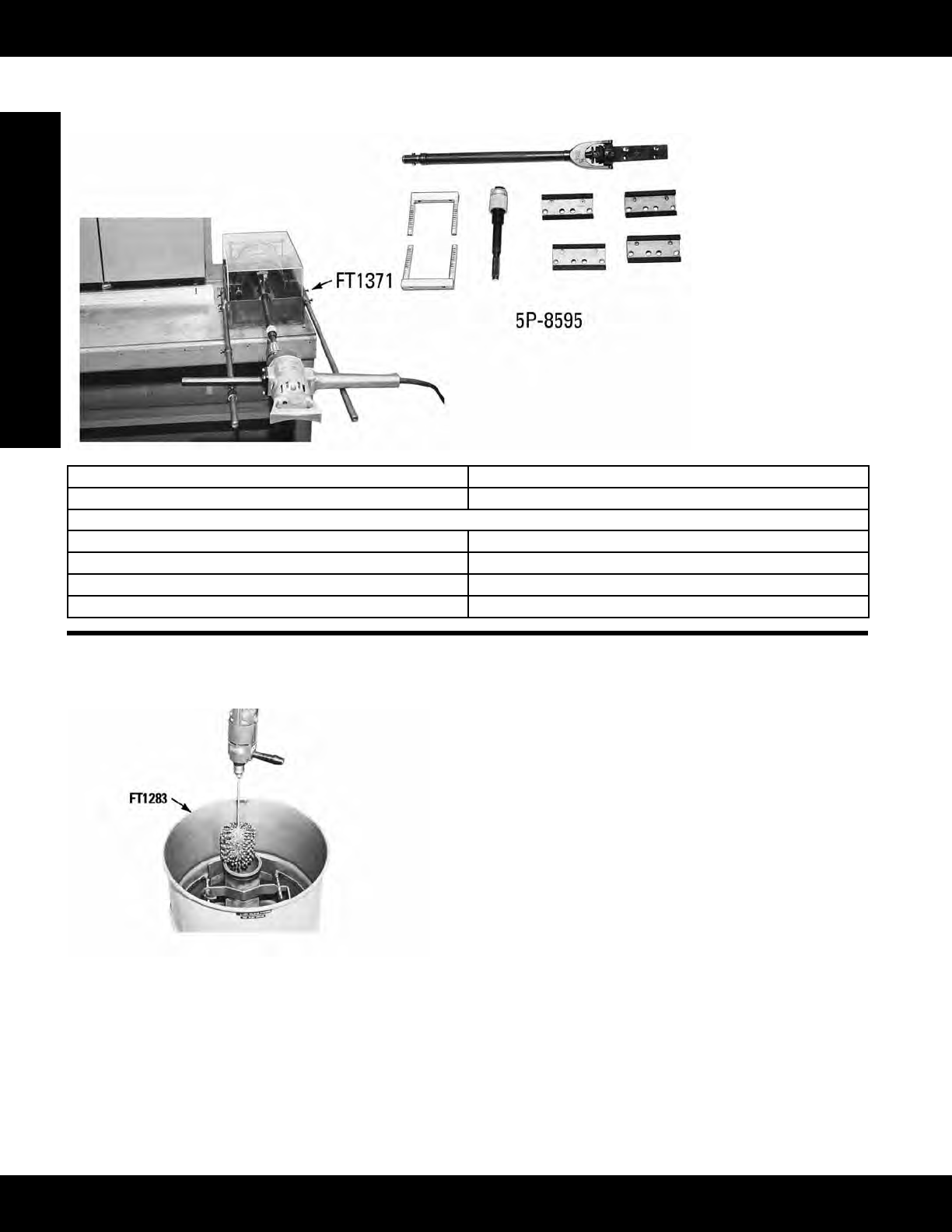

5P-8595 Honing Tool Group (Continued)

Model: 6.25 inch Bore, 6-Cylinder Diesel Engines

Warranty: Six Months

Part Number Description

5P-8595 Honing Tool Group

Service/Repair Parts

5P-8592 Stone, 114.03 - 182.88 mm (4.5 - 7.2 in) Diameter (70 Grit)

5P-8593 Stone, 114.03 - 182.88 mm (4.5 - 7.2 in) Diameter (600 Grit)

5P-8591 Holder, Stone

6V-7853 Stone, 101.6 - 142.24 mm (4.0 - 5.6 in) Diameter (70 Grit)

FT1283 Cylinder Liner Holding Fixture

Model: Multiple Engine Models

Warranty: None

• Holdscylinderlinersrmlyinpositionwhileusing

Flex-Hone (Flex-Hone powered by 1/2 inch electric drill

suspendedwithcableandpulleyarrangement;otherend

of cable is counterweighted to make honing easier)

• Additional FT1283 Fixture can be set up for cleaning liners

after honing
