Caterpillar Engine Tools Cat Overhaul 3512 Page 363

Operation and Maintenance Manual
2599792
2599807
2599823
3-363

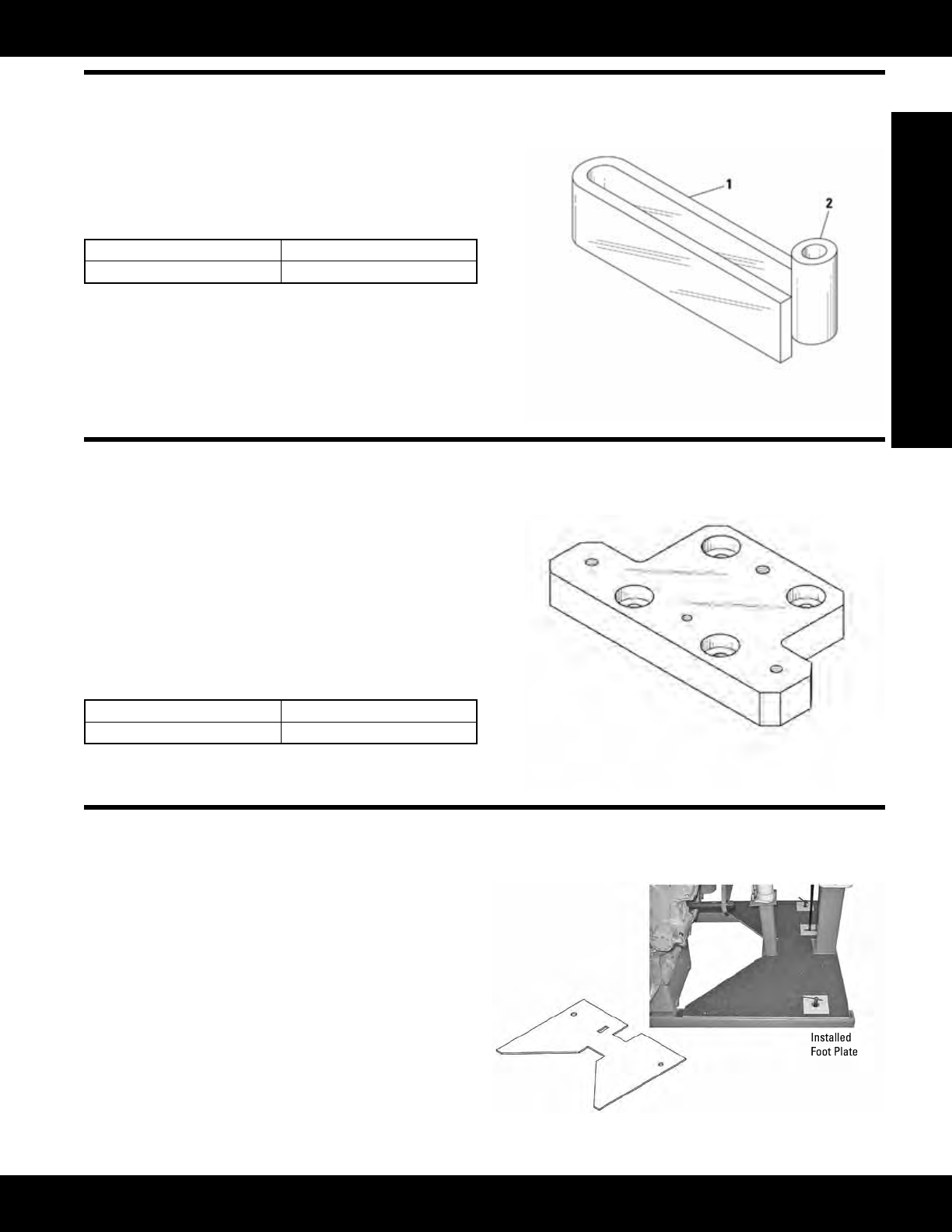

Engine Tools
Engine Lifting and Positioning
FT2942 Transmission Support Assembly
Model: 924G and 928G Medium Wheel Loader
Warranty: None
• Used to mount transmission to an engine repair stand
• Used with 1U-5750 Engine Repair Stand
Reference
ServiceManual,924Gand928GPowerTrainDisassemblyand
Assembly
Material for item 1 SAE 1020M steel
Material for item 2 ASTM A513 steel
350-4401 Transmission Adapter
Model: CX28, CX31, CX35 Transmissions
Warranty: none
• Used to mount transmissions to engine repair stand
• Used with 1U-5750 Engine Repair Stand
• Supports transmission during disassembly and assembly
References
KENR8152,CX31-P600PetroleumTransmissionWellServicing,
Disassembly and Assembly
KENR8128, CX35-P800 Petroleum Transmission and Petroleum
Power Train Packages, Disassembly and Assembly
KENR5098, CX28 On-Highway Transmission, Disassembly and
Assembly
Part Number Description
350-4401 Transmission Adapter
206-0030 Foot Plate
Model:1U-5750RolloverStand
Warranty: Six Months
• Usedtoprovideaplaceforoperatortostandand/ora
place for tools or parts
• Used with 1U-5750 Engine Repair Stand
• Enhancesusabilityofrolloverstand
• Speciallyshapedtollinspacebetweenhydraulicjack
and end post
• Coatedwithanti-skidmaterialandpaintedwithhighvis-
ibility yellow paint
• Steel construction 9.5 mm (0.38 in) thick
Installation Instructions
1. Installswithoutdisassemblingrolloverstand.
2. Parking brake pins must be unscrewed and reinstalled
when positioning plate.
(Continued)
