Caterpillar Engine Tools Cat Overhaul 3512 Page 239

Operation and Maintenance Manual
2594964
2594986
2595005
3-239

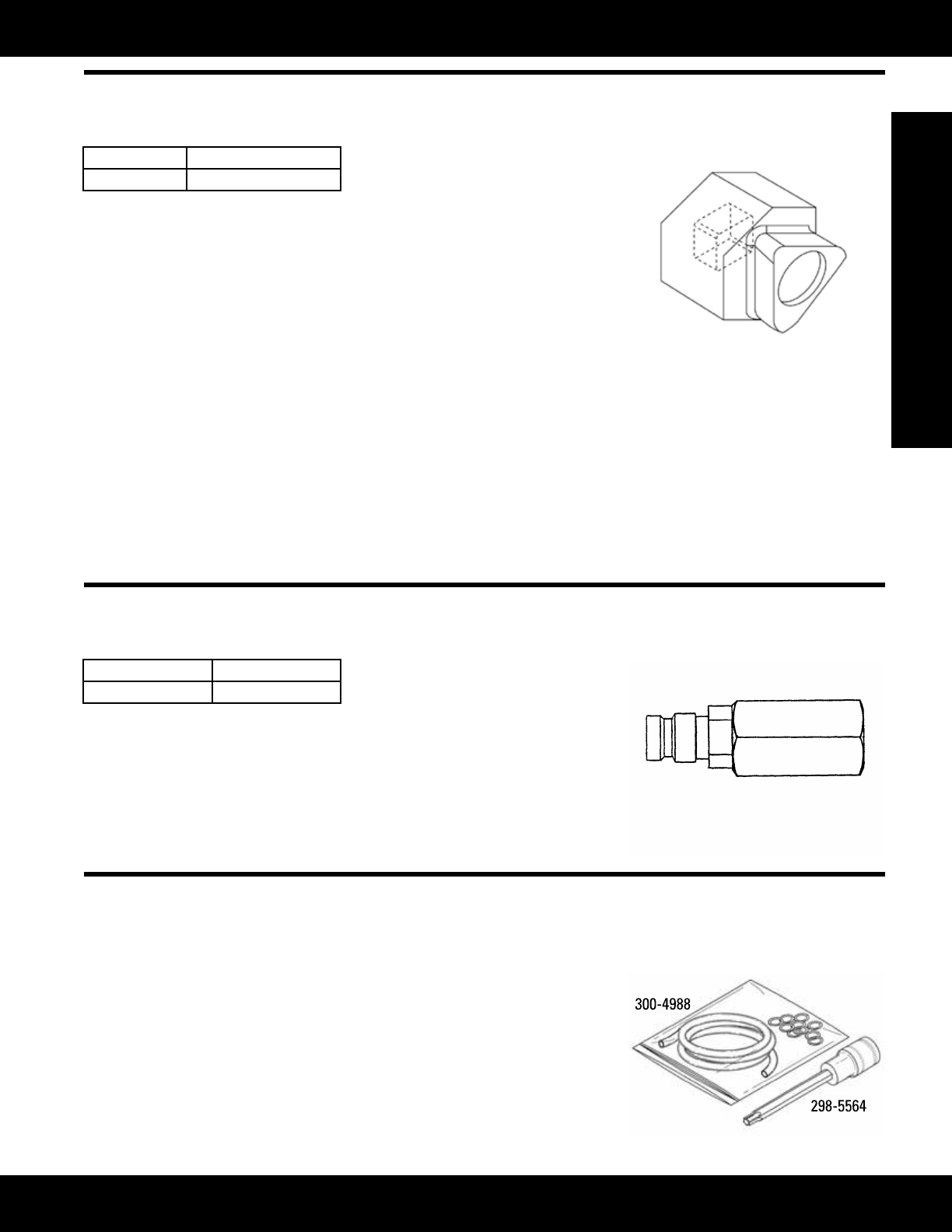

Engine Tools
Fuel System Test Tools
148-3605 Wrench
Model: 3116 Engines
Warranty: One Year
Model: 3116 Engines
• Replaces discontinued 131-5009
Wrench
• Usedtoremoveandinstalltamper
resistantplugson3116governors
installed after 01/01/96
• Used with standard socket and
ratchetoratwrench
• Short hex design works well in
connedspaces
• 3/8squaredrive(requiredfordual
Hpgovernors)
• Tamper resistant plugs protect
load stop and fuel air ratio control
settingsonsomeTypeIVgovernors
and fuel air ratio control setting only
onsomeTypeVgovernors
• Hex head diameter: 22.23 mm ( 7/8
in)
Reference
SENR6454,ServiceManualModule,
3114/3116and3116EngineGovernors
(MUI)
Part Number Description
148-3605 Wrench
4C-9309 Adapter
Model: 3114, 3116
Warranty: Six Months
• Usedtotest2.3gaingovernor
(availablein1991)for1.1LEngines
on1U-7326GovernorCalibration
Bench (adapters for earlier pumps
included with 1U-7326)
• Usedongovernortransferpump
outlettting
• Use 3K-0360 or 8M-5260 O-ring Seal
with adapter
Reference
SEHS8868, Special Instruction
Part Number Description
4C-9309 Spanner Pin Group
Fuel System Tools
Essential Tool
Model: C4.4 and C6.6 Engines
Warranty: Six Months except 298-5564 which is Manufacturer’s Lifetime
300-4988 Fuel Leak Kit
• Used to measure fuel leak rates on C4.4 and C6.6 engines
• Aids in diagnosing faulty fuel injectors on hard-to-start engines
298-5564 T40 Torx Socket
• Used to install injector hold down bolt on C4.4 and C6.6 engines
• Eliminates risk of damaging injector or inlet rocker arm
• 3/8inchsquaredrivewithT40Torxbit
• Overalllength:114.3mm(4.5in)
(Continued)
