Caterpillar Engine Tools Cat Overhaul 3512 Page 407

Operation and Maintenance Manual
2601149
2601168
2601186
3-407
Engine Tools
3600 Engine Tools

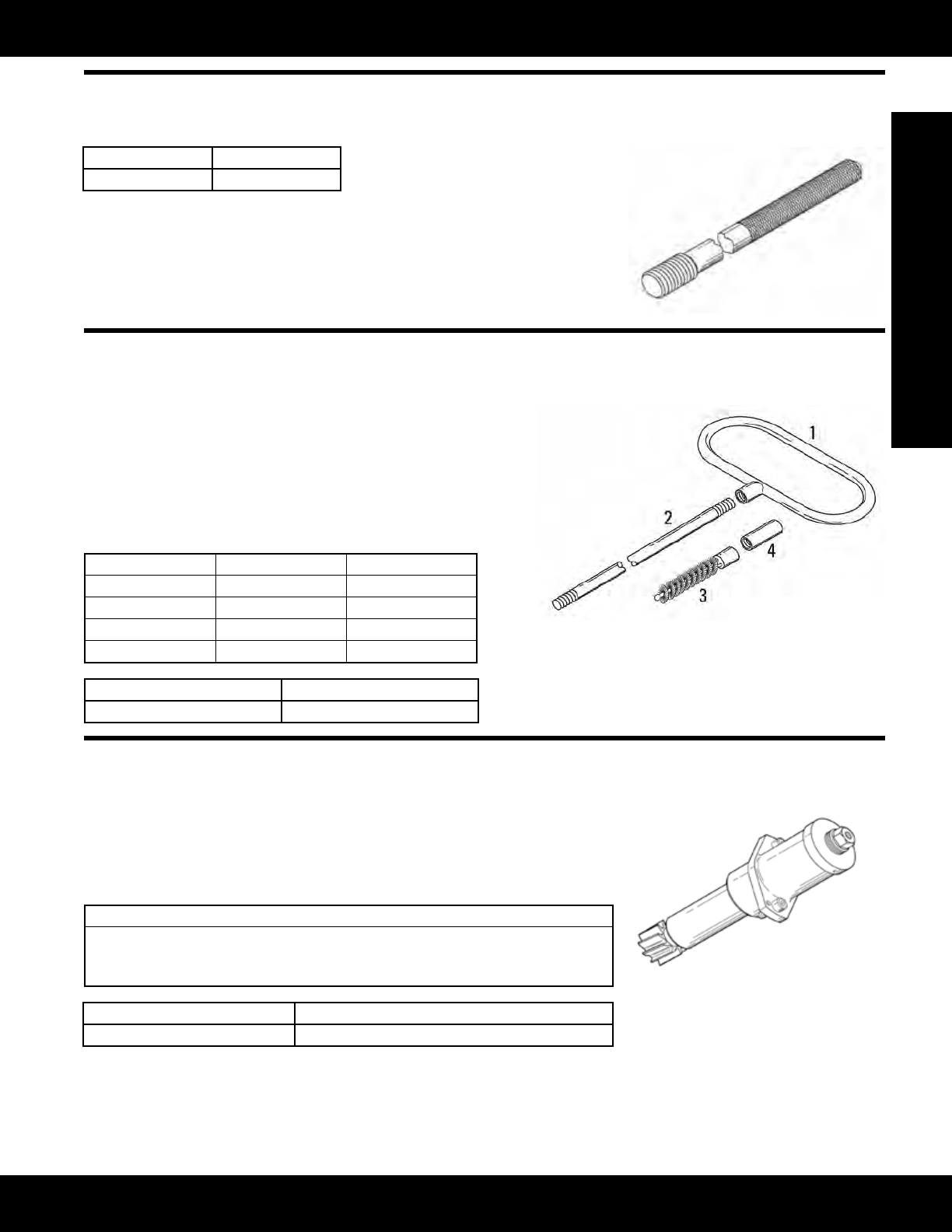

178-5063 Rod Cap Guide (3618)
Model: 3618 Engines (2MW1-Up)
Warranty: Six Months
• Usedtoeasilyremoveandinstall
connecting rod cap
• Guides (2) thread into lower portion
of connecting rod
• Helpspreventdamagetoconnect-
ing rod cap
• Thread: M24 x 3.0
Part Number Description
178-5063 Rod Cap Guide
145-0316 Cleaning Kit
Model: 3600 Gas Engines with Two-Stage After Coolers
Warranty: Six Months
• Used to clean water tubes in 2-stage after coolers
• Softdepositsleftbycoolantareremovedbyinserting
brushes into after cooler tubes and working back and
forth through the length of coolant tubes
• Kit includes 9.5 mm (0.38 in) diameter brushes, rods,
handle, and connector
• Rotate cleaning rods and brushes in clockwise direction
topreventpartsfromunscrewing
Item Description Quantity
1 Handle 1
2 Rod 3
3 Brush 12
4 Connector 2
Part Number Description
145-0316 Cleaning Kit
187-6273 Prechamber Machining Tool Group (G3600)
Model: All G3600 Engines
Warranty: Six Months
• Usedtoremovepittingandcorrosioninlowersealingsurfaceofprechambers
• Machines lower sealing surface of prechamber
• Maximummaterialremoval:0.5mm(0.02in)
Reference
NEHS0790, Using the 187-6273 Prechamber Machining Tool Group (G3600)
NOTICE
Usewithcautionandasalastresorttosalvagecylinderheads.Excessivematerial
removalcouldresultinlossofcorecreditofthecylinderhead.Followstep-by-step
directionsinNEHS0790ToolOperatingManualprovidedwiththistool.
Part Number Description
187-6273 Prechamber Machining Tool Group
