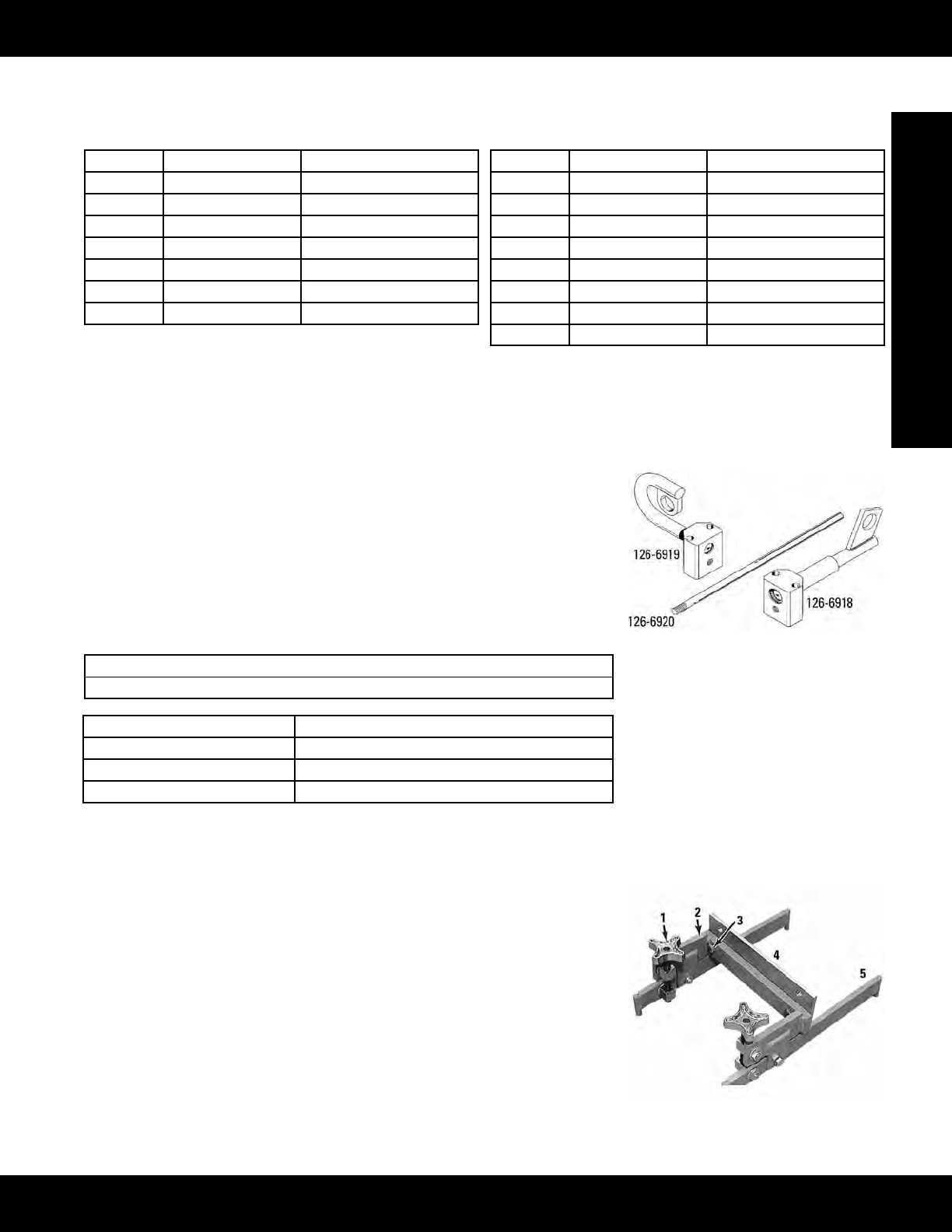

Caterpillar Engine Tools Cat Overhaul 3512 Page 389

Operation and Maintenance Manual
2668672
2668686
2668701
3-389
Engine Tools
3600 Engine Tools
References (Continued)
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Item Part Number Description
1 8T-0916 Pin
2 8T-0959 Hitch Pin
3 8T-0955 Tensioner Lift Tube Group
4 8T-0948 LiftLeverGroup
5 8T-0872 Stud Tensioner Tray
6 8T-0961 Rail Retainer Bushing
7 4C-8357 Tray Support Rail
Item Part Number Description
8 4K-0367 Nut - Full
9 8T-0947 Tee Handle
10 1B-4430 Jam Nut
11 8T-0946 Tension Lift Stud
12 8T-0963 Shaft
13 5P-0370 Lock Pin
14
1
8T-0956 Bracket Group
-- 8T-0960 Handling Tool Group
1
Includes 8T-0806 Block, 8T-0954 Screw, and 9U-7238 Handle
126-6918 Head Lifting Bracket (3600 Vee), 126-6919 Head Lifting Bracket (3600 In-line)
126-6920 Handle Rod (Part of 9U-5105 Group)
Model: 3600 Engines
Warranty: Six Months
• Replaces discontinued 8T-2860 Head Lifting Bracket (3600)
• Usedtoremoveandinstallheadson3600Engines—126-6918usedforVee
engines and 126-6920 used for in-line engines
• Lifting bracket for Vee engines is designed with 25° angle (keeps bottom of head
parallel to 25° block angle)
• Attach lifting bracket bolt to head with two 5D-1972 Bolts (3/4 in - 10 11 3/4 in)
(part of 9U-5105 Group)
• Handle rod screws into either bracket and helps mechanic position head during
assembly
• Not shown: 5D-1972 Bolt (3/4 in -10, 11 3/4 in)
Working load limit for either lifting bracket
227 kg (500 lb)
Part Number Description
126-6918 Head Lifting Bracket
126-6919 Head Lifting Bracket
126-6920 Handle Rod
Crankshaft and Camshaft
8T-3029 Camshaft Segment Support Group (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtosupportcamshaftsegmentsduringremovalandinstallation(weightof
camshaft segments 28 kg [62 lb])
• Swivelassemblyisadjustableforeasieralignmentofsegmentduringinstalla-
tion
• Discontinued 8T-3050 Bracket bolts directly into the bottom 2 bolt holes of cam-
shaftcoveron3606and3608Engines
• 1U-6311 Cam Support Adapter allows the discontinued 8T-3050 to be mounted
inbottom2holesofcamshaftcoverson3612,3616and3618Engines(usetwo
3/8-16 bolts to attach 1U-6311 to discontinued 8T-3050)
References
SENR3594,ServiceManualManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
(Continued)
