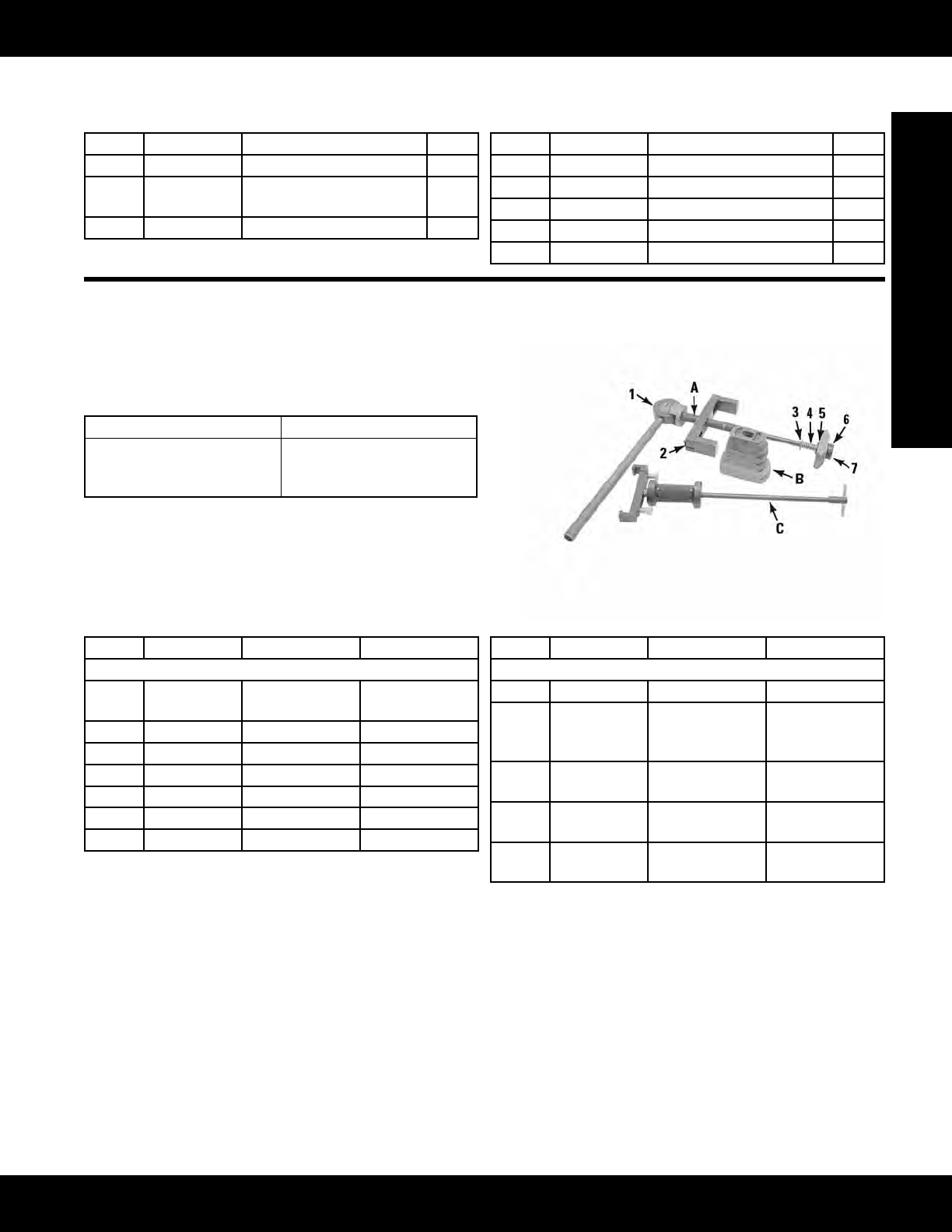

Caterpillar Engine Tools Cat Overhaul 3512 Page 91

Operation and Maintenance Manual
2589641
2589675
3-91
Engine Tools
Cylinder Block and Liners
5P-8665 Cylinder Liner Puller (Continued)
Model: Multiple Engine Models
Warranty: Six Months
Item Part Number Description Qty.
7 5P-8671 Foot 2
8 6V-4133 Wedge Bracket (see infor-
mationabove)
--
9 2D-4534 Screw 2
Item Part Number Description Qty.
10 8T-5103 Arm Assembly 2
11 131-6118 Lifting Bar --
12 8T-5104 Spring (Part of Item 4) 2
13 8T-5105 Plunger (Part of Item 4) 2
-- 5P-8665 Cylinder Liner Puller --
5P-3570 Cylinder Liner Puller Group
Discontinued — Service Parts Available
• Discontinued and replaced by 5P-8665 Cylinder Liner
Puller
Reference
GEG00631, Special Instructions
Item Description
C CylinderLinerRemover—
137.2 mm (5.4 in) Bore Engines
Only
Item Part Number
1
Description Size
Includes the following Service/Repair Parts
1 5P-3571 Cam and Rod
Group
--
2 1J-8499 Washer (2) --
2 0S-1621 Bolt --
3 4B-4283 Washer --
4 5M-6186 Spring --
5 8F-6462 Washer --
6 1P-2388 Nut --
Item Part Number
1
Description Size
Includes the following Service/Repair Parts (Continued)
7 4B-9806 Screw --
A 5P-3570 Cylinder Liner
Puller Group,
Discontinued
--
B 1P-2398 Puller Plate 158.8 mm (6.25 in)
Bore
B 1P-2394 Puller Plate 120.7 mm (4.75 in)
Bore
B 1P-2396 Puller Plate 137.2 mm (5.4 in)
Bore
1
AllpartnumbersinthetablehaveaSixMonthwarranty
Home
Search
Previous page
Next page
