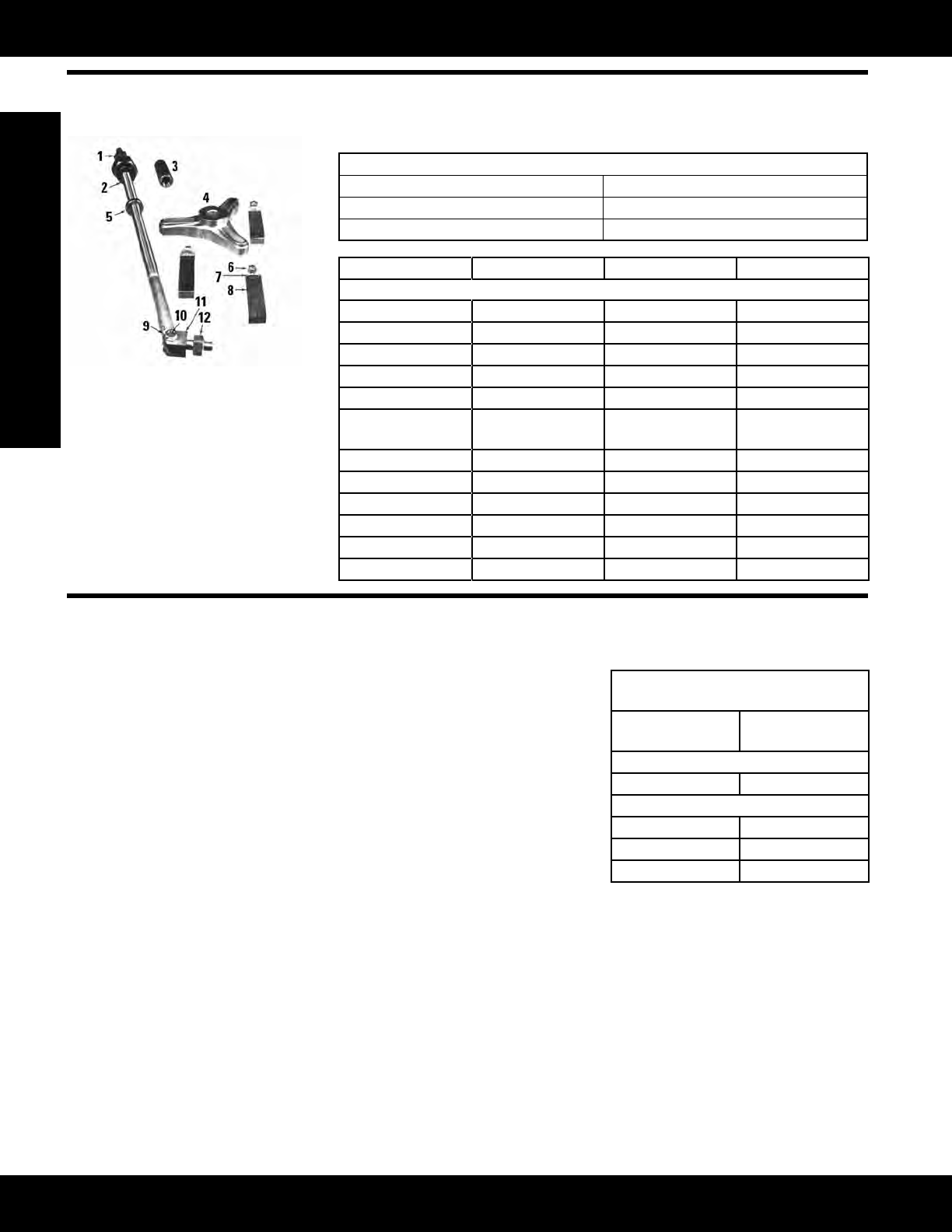

Caterpillar Engine Tools Cat Overhaul 3512 Page 92

Operation and Maintenance Manual
2589697
2589712
3-92
Engine Tools
Cylinder Block and Liners
7F-1857 Liner Puller
Discontinued — Service Parts Available
• Discontinued and replaced by 5P-8665 Cylinder Puller liner
Service/RepairParts
Item Description
3 Handle
11 Swivel
Item Part Number Description Quantity
Service/Repair Parts
1 1B-4333 Nut --
2 001-5599 Bearing --
3 7F-1860 Handle --
4 5F-7347 Head --
5 5F-7353 Thrust Washer --
6 1A-1460 Bolt (1/2 - 13) (fork
mounting hardware)
3
7 4B-4280 Washer 3
8 5F-7350 Block 3
9 1B-4330 Nut --
10 0S-1579 Bolt --
11 5F-7349 Swivel --
12 1B-4331 Nut --
Adapter Plates for Discontinued 7F-1857 Puller
Model: Multiple Engine Models
Warranty: Six Months
• The hydraulic puller and the different size adapter plates are not included in
discontinued 7F-1857 Cylinder Liner Puller Assembly (adapter plates ordered
separately as required)
Cylinder Liner Removal — Adapter
Plate Selection
Size
Adapter Plate Part
No. (Current)
Adapter Plate Part Number (Former)
114.3 mm (4.50 in) 5P-7362
Adapter Plate Part Numbers (Current)
120.7 mm (4.75 in) 1P-2394
137.2 mm (5.40 in) 1P-2398
158.8 mm (6.25 in) 1P-2396
