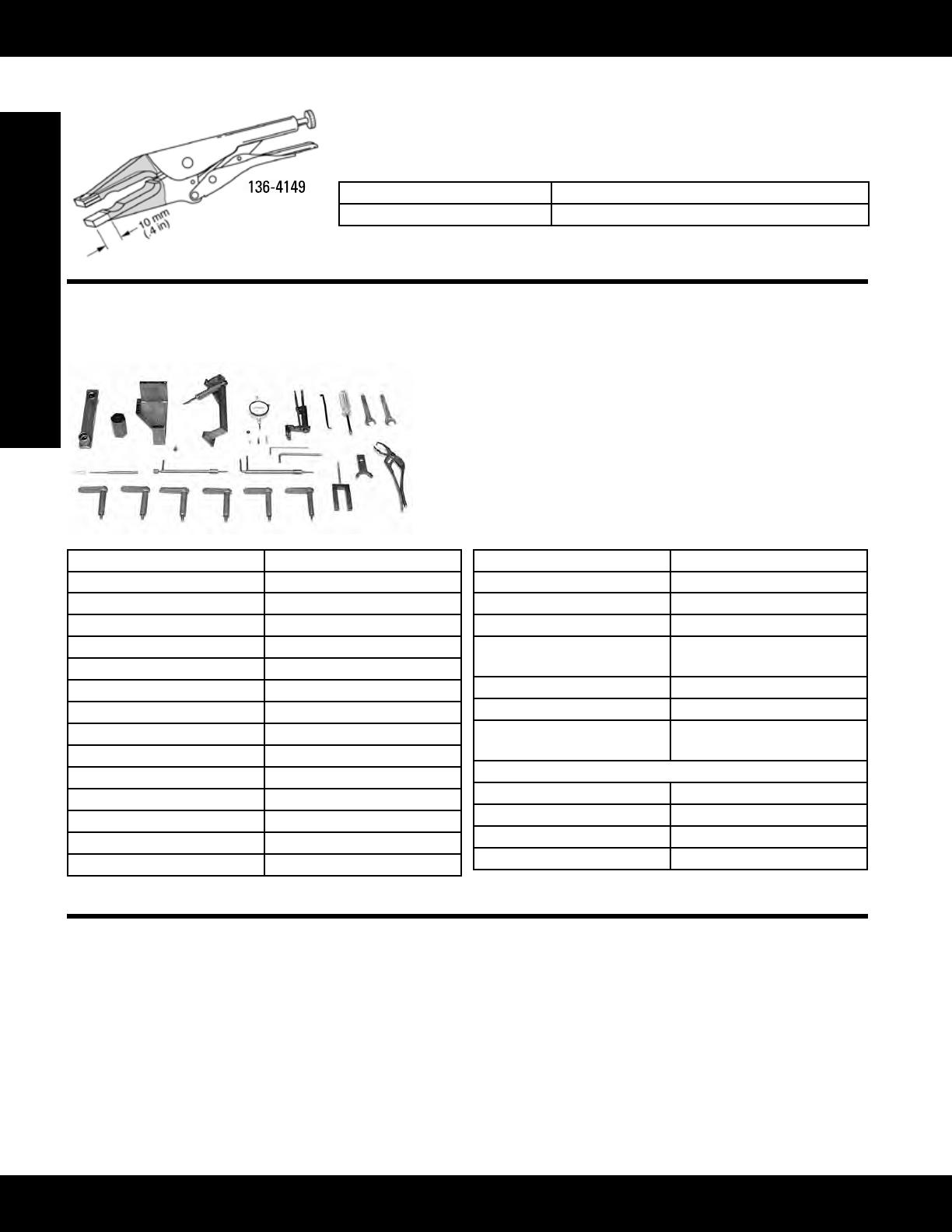

Caterpillar Engine Tools Cat Overhaul 3512 Page 298

Operation and Maintenance Manual
2648673
2597481
2597517
3-298
Engine Tools
Fuel System Repair and Adjust
136-4149 Governor Connection Pliers
The136-4149GovernorConnectionPlierscanbeusedforinspectionprocedures
asoutlinedinSpecialInstructionREHS0601,ifmodied.Remove10mm(0.4in)of
rubberizedcoatingfromtipsofplierstoexposemetalteeth.Thismodicationwillnot
affecttheoriginalfunctionofpliers,anditwillallowplierstotontorivethead.
Part Number Description
136-4149 GovernorConnectionPliers
1U-6680 Governor and Fuel Injection Adjusting Tool Group
Discontinued — Service Parts Available
Warranty:AllpartnumbersinthetablehaveaSixMonthwarranty
Part Number Description
1U-8702 Injector Timing Block
1U-6678 Fixture Group
8T-0267 Socket Head Bolt
4C-4716 Injector Timing Fixture
6V-6106 Dial Indicator
1U-8815 Point - Indicator Contact
3S-3268 Point - Indicator Contact
1U-6679 Indicator Group
1
1U-9563 Offset Wrench
1U-8790 NutDriver,6mm
6V-7918 Wrench
1U-7563 Hex Wrench, 4 mm
1U-7564 Hex Wrench, 5 mm
6V-0006 Electrical Connector Pliers
Part Number Description
9U-5120 Spanner Wrench
1U-6675 Injector Spring Compressor
1U-6672 Rack Adjusting Wrench
1U-6673 Wrench - Fuel Ratio Control
Adjusting and Synchronizing
1U-7523 Pilot - Pin Insertion
1U-7305 Insertion Tool
1U-6680 GovernorandFuelInjection
Adjusting Tool Group
Not shown
4C-5851 Foam Insert
5P-0302 Bar(InjectorRemoval)
5P-4814 Collet As - Clamp
6V-7145 Case
1
Includes: 8T-7352 Bolt
1U-9563 Offset Wrench
Model: 3114, 3116
Warranty: Six Months
• Replaces discontinued 1U-8771 Offset Wrench
• Specialwrenchrequiredforadjustingvalvelashandinjectiontimingon3114
and 3116 Engine
• 4 necessary socket sizes — 16, 17, 18, and 19 mm
• Offset for clearing intake manifold
(Continued)
