Caterpillar Engine Tools Cat Overhaul 3512 Page 288

Operation and Maintenance Manual

Page of 420

/ 420

2597083

2597099

2597117

3-288

Engine Tools

Fuel System Repair and Adjust

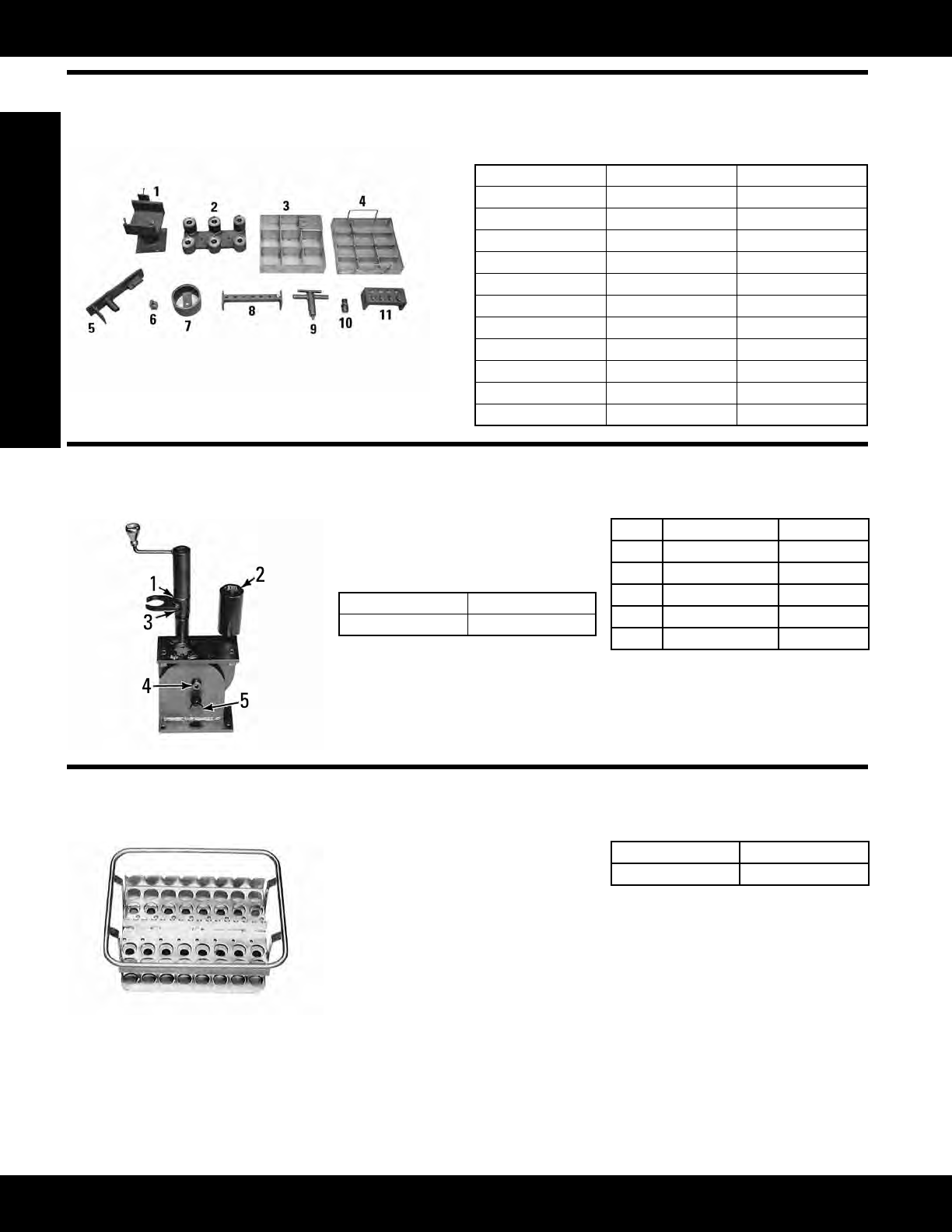

Fabricated Tools for Reconditioning 3208 Engine Fuel Systems

Model: 3208

Warranty: None

• Used to recondition 3208 Engine fuel systems

Item Part Number Description

1 FT1693 Holding Fixture

2 FT1690 Holding Fixture

3 FT1691 Parts Basket

4 FT1692 Parts Basket

5 FT1709 Holding Fixture

6 FT1730 Gauge (Weight)

7 FT1689 Holding Fixture

8 FT1776 Holding Fixture

9 FT1686 RemoverInstaller

10 FT1687 Socket

11 FT1777 Holding Fixture

6V-4830 Fixture Group

Model: Cat

Engines

Warranty: Six Months

• Used for disassembly and assem-

bly of unit injectors, and to check

assembled injectors for free rack

movement

Item Description

4 Screw

Item Part Number Description

1 5L-1100 Bearing

2 6V-4092 Socket

3 2N-7229 Spring

5 6V-4875 Stop

-- 6V-4830 Fixture Group

6V-6188 Cleaning Tray

Model: Cat

Engines

Warranty: Six Months

• Holdsspecicpartsofunitinjectors

in groups while they are cleaned in

ultrasonic cleaner tank

• Plungers, bushings, tips and nee-

dles arranged in sequence so that

partswhichttogetherandmustbe

kept together can be cleaned but

not mixed

• Traytsintankofeitherultrasonic

cleaner group

Part Number Description

6V-6188 Cleaning Tray
