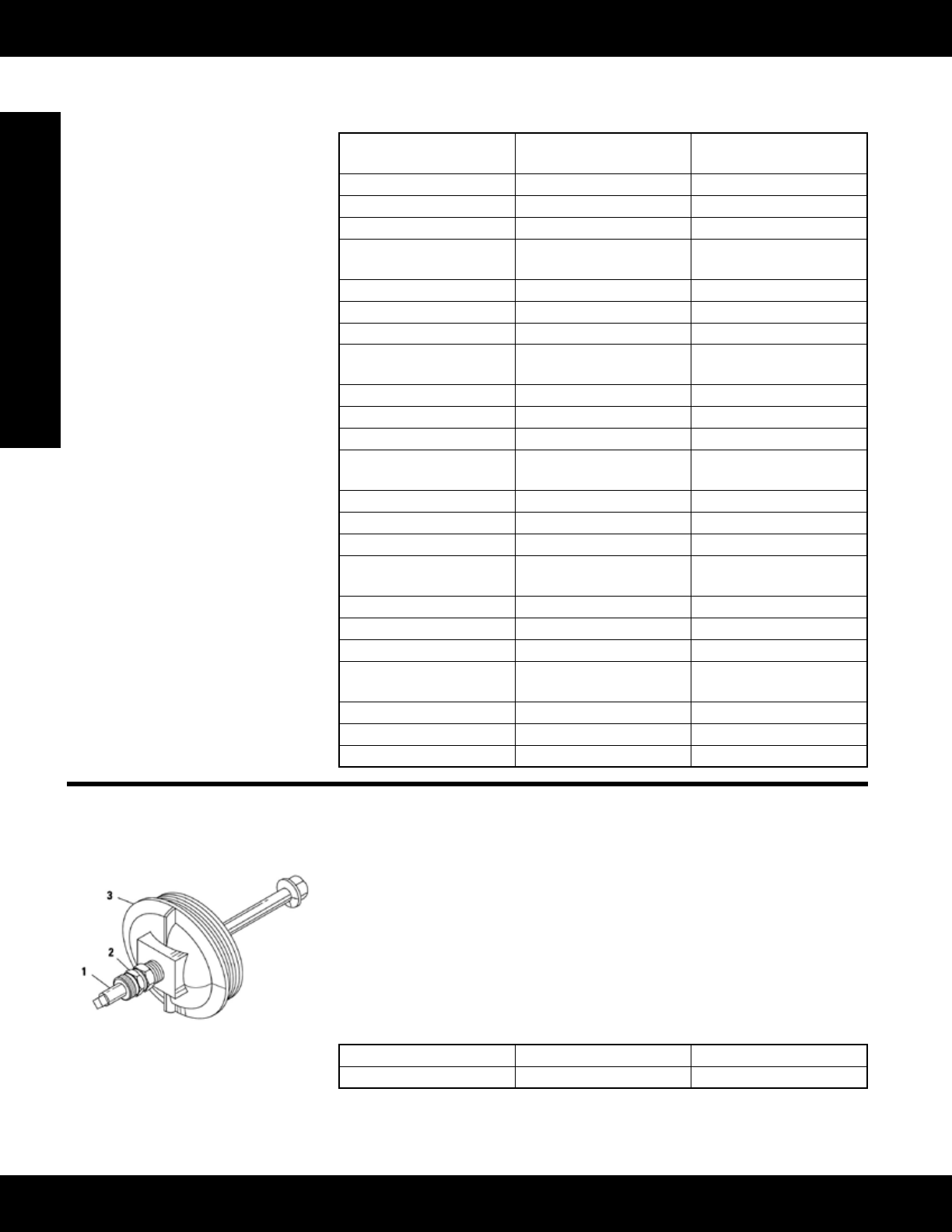

Caterpillar Engine Tools Cat Overhaul 3512 Page 266

Operation and Maintenance Manual
2647515
2596235
3-266
Engine Tools
Fuel System Repair and Adjust
Assembled Setting Tool (Continued)
Model: All gas engines with Fisher Gas Regulators (Use FT2613 for gas engines with the discontinued 7E-3407 Sprague Gas Regulator)
Warranty: Six Months
3304,3306PositivePres-
sure Regulator
1 each Adapter
Tool
8T-5149 Fitting
Gasket
3304, 3306 Vacuum Regula-
tor
1 each Adapter
Tool
8T-5149 Fitting
Gasket
3400,3500PositivePres-
sure Regulator
1 each Adapter
Tool
8T-5149 Fitting
Gasket
3400, 3500 Vacuum Regula-
tor
1 each Adapter
Tool
8T-5149 Fitting
Gasket
379,398,399PositivePres-
sure Regulator
2 each Adapters
Tools
8T-5149 Fittings
Gaskets
379, 398, 399 Vacuum
Regulator
2 each Adapters
Tools
8T-5149 Fittings
Gaskets
FT2613 Gas Regulator Cap Assembly
Model: All Models with discontinued 7E-3407 Gas Regulators
Warranty: None
• Used to adjust gas line pressure on discontinued 7E-3407 Gas Regulators
• Adjust regulator while engine is running
• Eliminates costly engine downtime
• Allows adjustment of regulator with no leakage
Application Procedure
1. To install, push 155-3062 through FT2613 and 8T-5149. Position hex/washer end
into regulator and tighten cap. Make sure 123-5974 O-ring is in place.
2. Tightenttingaroundadjustingtooltopreventleakage,butlooseenoughto
adjust regulator.
3. Adjustregulatorandremovetoolswhennished.
Item Part Number Description
3 FT2613 Cap Assembly
(Continued)
