3-331

Engine Tools

Pistons, Rings and Connecting Rods

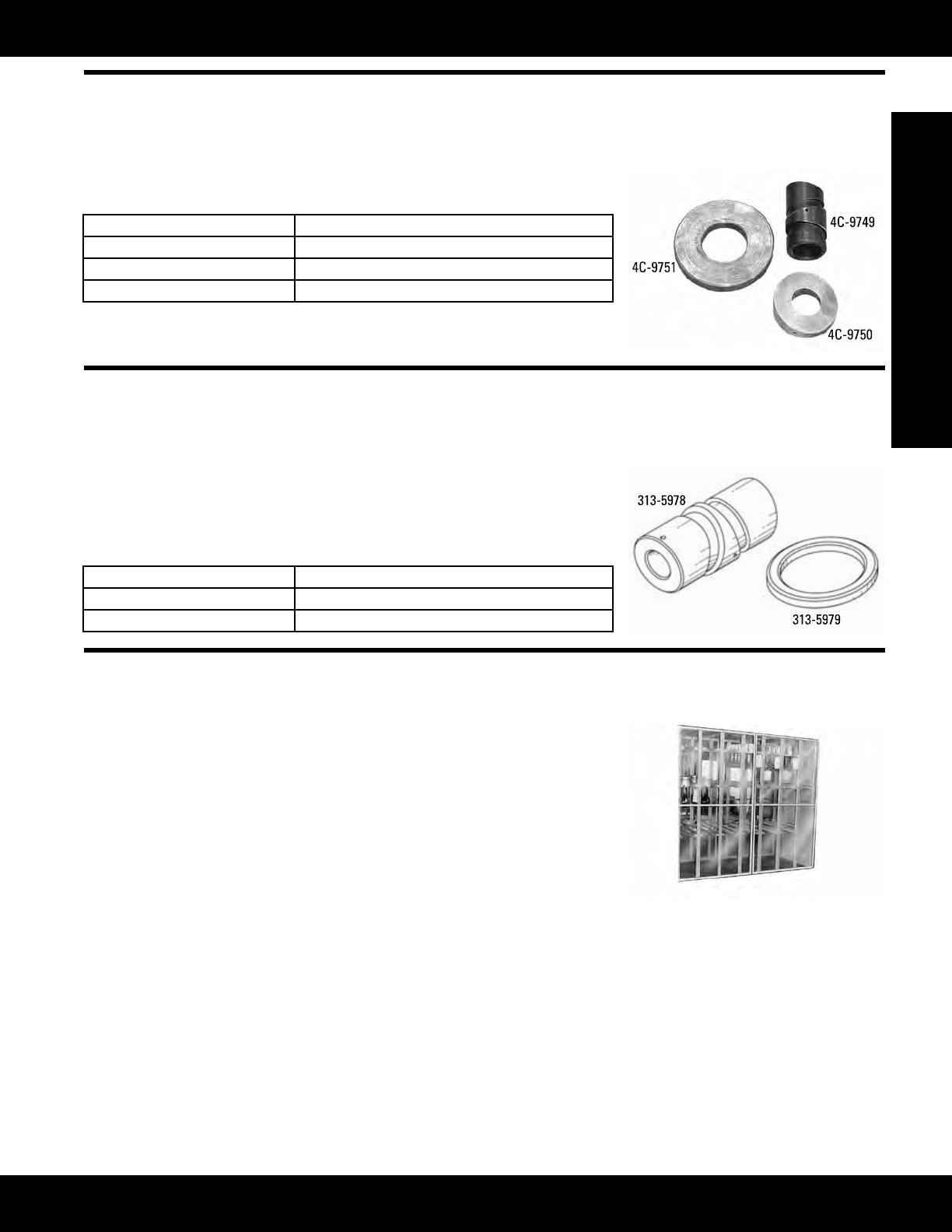

4C-9749 Push Adapter

4C-9750 Bushing Adapter, 4C-9751 Spacer

Model: All 1.1 Liter Engines

Warranty: Six Months

• Usedtoremoveandinstallconnectingrodbearings

• Provideseconomicalmeanstorebuildconnectingrods

Part Number Description

4C-9749 Push Adapter

4C-9750 Bushing Adapter

4C-9751 Spacer

313-5978 Pin Bushing Adapter, 313-5979 Spacer

Essential Tool

Model: C27 and C32 Engines

Warranty: Six Months

• Usedtogethertoremoveandinstallconnectingrodbearings

• Used with a suitable press

• Providesanefcientwaytorebuildconnectingrods,withoutdamagingcompo-

nents

• Durable, black-oxide coating

Part Number Description

313-5979 Spacer

313-5978 Pin Bushing Adapter

FT1571 Piston Storage Cabinet and Connecting Rod Assembly

Model: Cat

Engines

Warranty: None

• Afterreconditioning,pistonandconnectingrodassembliesmustbecovered

withoilandplacedinacleanstoragearea;cabinetkeepsthesecomponents

cleanandprovidesgoodaccess

• Cabinet doors made of Plexiglass front and back permitting piston and rod as-

sembliestobeputintocabinetononesideandremovedfromotherside

• Doors are fastened to rollers and slide past each other

• ClearPlexiglasskeepsdirtoutbutpermitsservicepersonneltoseehowmany

assembliesareavailable

• Rear of cabinet can be made from sheet metal if it is not necessary to enter

cabinet from both sides

• Size (H x W x D): 2134 x 2159 x 1219 mm (84 x 85 x 48 in)
