Caterpillar Engine Tools Cat Overhaul 3512 Page 231

Operation and Maintenance Manual
2594567
2646688
2594595
3-231
Engine Tools
Fuel System Test Tools

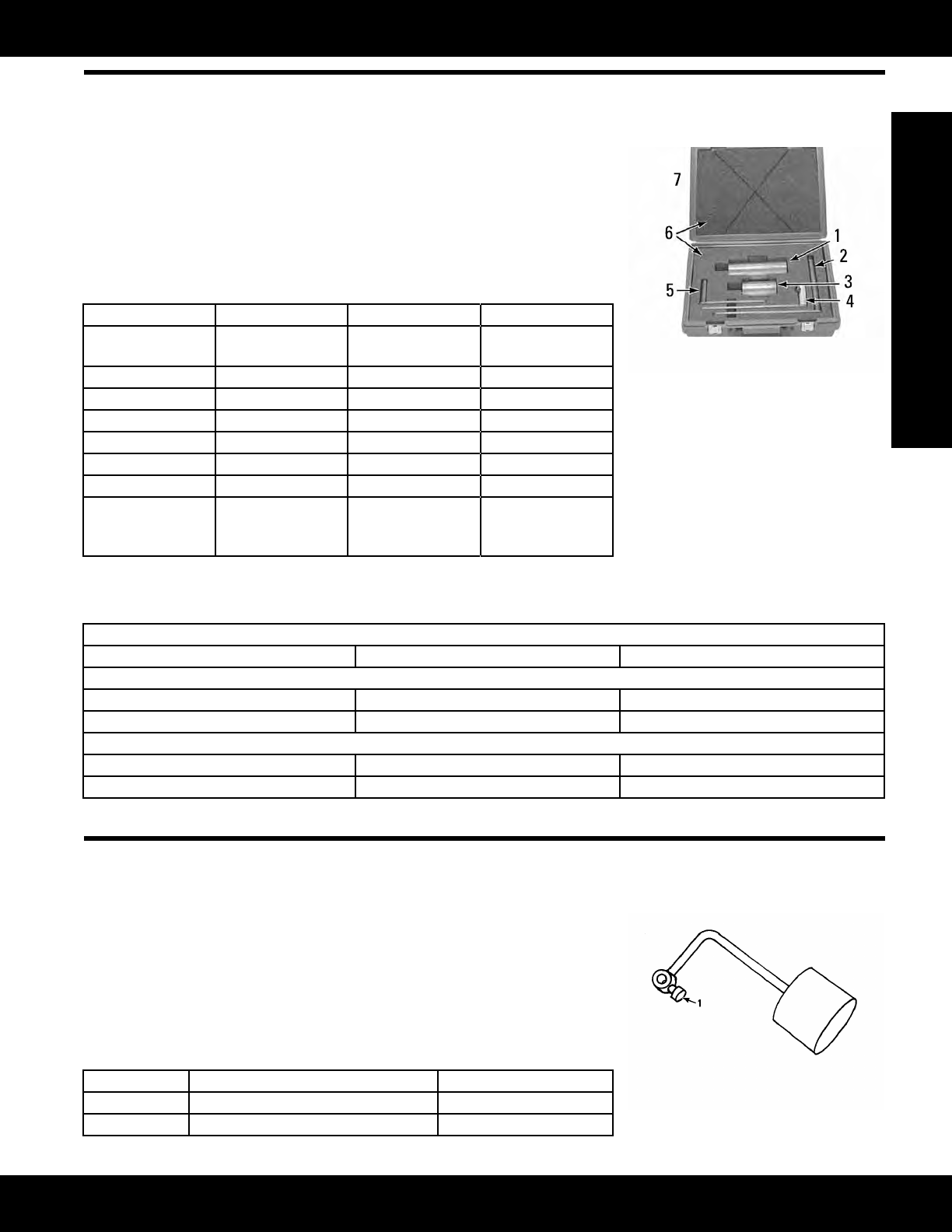

4C-6100 Tool Group, 3161 Governor Torque Control
Model: Multiple Engine Models
Warranty: Six Months
• Usedtoperformvarietyofin-vehicleenginegovernorandfuelsystemsettings
for D11 Track-Type Tractor and the 777, 785 and 789 Off-Highway Trucks
• Easilyinstalledongovernorwithoutremovingsurroundingcomponentssuchas
alternator or water hoses
• Withcorrectcombinationofleverarmsandweights,aspecictorqueisapplied
to3161WoodwardGovernorspeederandterminalshafts;allowsforsetupof
governor,settingfuelinjectiontiming,deratingofgovernorforhighaltitudeap-
plications,andevaluationofgovernorschedule
Item
1
Part Number Description Weight
1 4C-3975 Plastic Storage
Case
--
1 4C-6102 Torque Arm Weight 2.27 kg (5 lb)
2 4C-6099 Torque Arm --
3 4C-6103 Torque Arm Weight 4.08 kg (9 lb)
4 4C-6101 Torque Arm --
5 4C-6098 Torque Arm --
6 4C-6105 Insert --
-- 4C-6100 Tool Group, 3161
GovernorTorque
Control
--
1
Not shown: NEEG2435 Decal
Vehicle Application with Tooling Combinations for 4C-6100 Tool Group, 3161 Governor Torque Control
Vehicle Application with Tooling Combinations
Tool Usage Part Number Description
D11 Track-Type Tractor
Terminal shaft tools
1
4C-6102 Torque Arm Weight
Speeder shaft tools
1
4C-6103 Torque Arm Weight
777, 785 and 789 Off-Highway Trucks
Terminal shaft tools
1
4C-6102 Torque Arm Weight
Speeder shaft tools
1
4C-6103 Torque Arm Weight
1
Includes: Torque Arm
1U-9361 Governor Torque Arm
Model: 3500 Marine and Industrial Generator Sets
Warranty: Six Months
• Usedtotestandadjust3161governor
• Appliesconsistenttorquetogovernorandfuelsystemlinkageformoreaccu-
rate fuel system adjustments
• Canbeinstalledonterminalshaftof3161governor
• Armapplies10.3N·m(7.60ft-lb)oftorquetogovernorlinkagewhentorquearm
is installed with center line of cylinder-shaped weight in horizontal position
Reference
SEHS9240-01, Special Instruction
Item Part Number Description
1 3F-7147 Bolt
-- 1U-9361 GovernorTorqueArm
