Caterpillar Engine Tools Cat Overhaul 3512 Page 236

Operation and Maintenance Manual
2594842
2646783
3-236
Engine Tools
Fuel System Test Tools
1U-7326 Governor Calibration Bench (Continued)
Model: 3114, 3116, and 3126 MUI Engines
Warranty: Six Months
Part Number Description
1U-7326 GovernorCalibrationBench
Service/Repair Parts
4C-4167 Motor Pump Unit, 230 VAC
4C-4168 Motor Pump Unit, 115 VAC
1
4C-4169 Pump Inlet Strainer/Filter
8F-0212 O-ring for Collector Cup
9U-6629 Oil Gearbox
1
230VACsingle-phasepowerisnotalwaysavailabletooperate1U-7326GovernorCalibrationBench;4C-4168istheonlyspecialpartneededto
convert1U-7326to115VACoperationsoitcanbepluggedintoany20A,115Voutlet.

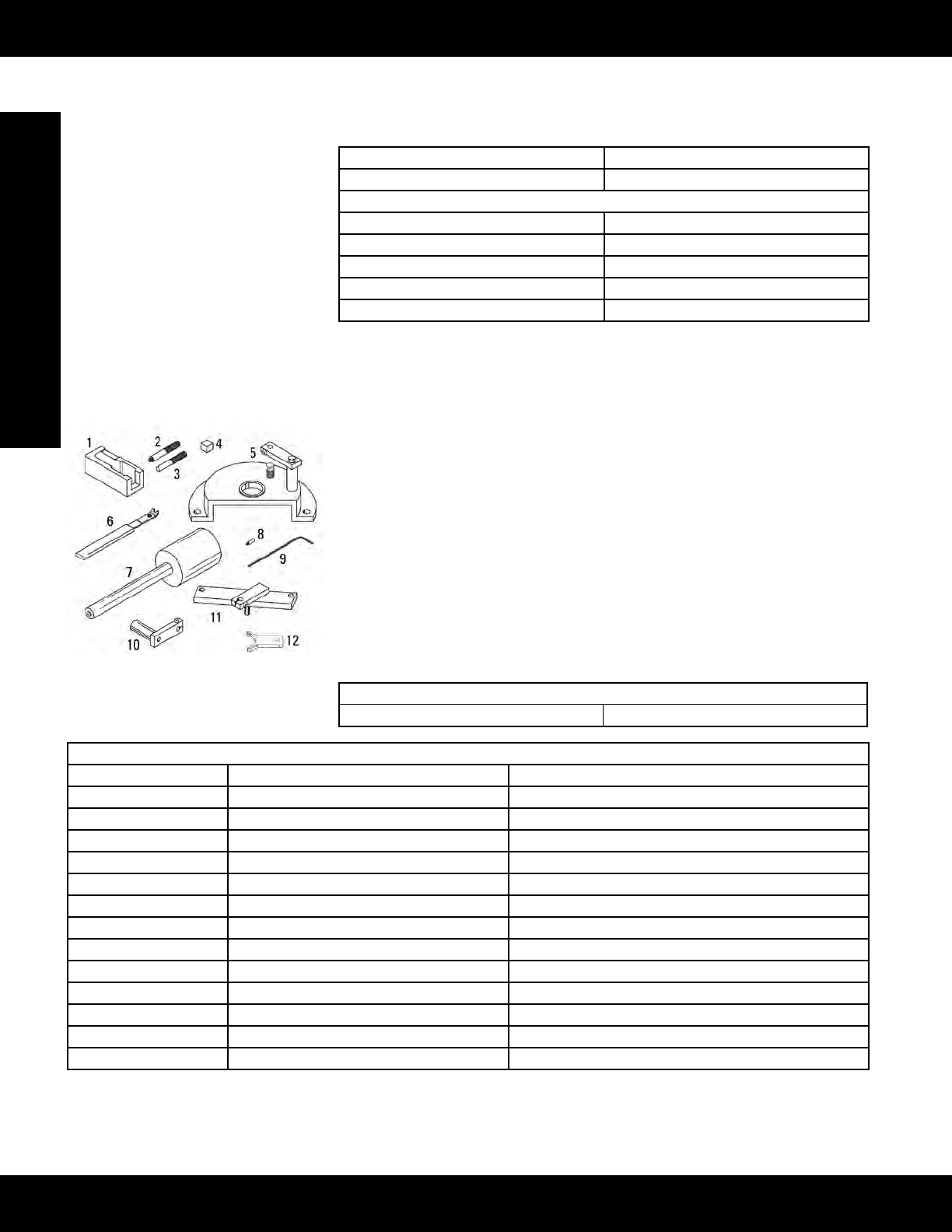

1U-9088 Governor Disassembly and Assembly Tool Group
Discontinued
• Usedtodisassembleandassemblegovernorgroups(manytoolsinthisgroup
werepartofdiscontinued1U-7315GovernorRepairGroup)
• Usedwith1U-7326GovernorCalibrationBench
• 1U-7606ServoDisassemblyandAssemblyBlock—properlypositionsgovernor
assemblytodisassembleandassembleoutputclevisfromservopiston,and
pressbackupspringpininorout(canalsobeusedonolderstyleservosto
safelyholdassemblywhiledrivingspringpininorout)
• 1U-7635ServoDisassemblyDriver—usedtopushservovalveshoulderto
avoiddamagingvalvewhenremovingoutputclevisfromservopiston(usewith
1U-7606)
• 1U-7636ServoAssemblyDriver—usedtopressoutputclevisintoservopiston
(use with 1U-7606)
• 6V-9072 Piston Seal Guide — guides new fuel ratio control piston and seal into
housing
Not Shown
NEEG2650 Decal
Service/Repair Parts
Item Part Number Description
1 1U-7606 ServoBlock
2 1U-7635 ClevisDriver
3 1U-7636 ServoDriver
4 1U-7313 Gauge Block
5 1U-7309 ShimAdjustmentTool(GovernorRiser)
6 4C-4354 Applicator
7 1U-7314 Shim Weight
8 9S-0229 Contact Point
9 1U-7311 Torque Wrench (1.5 mm hex-torque cam adjust)
10 1U-7308 ShimAdjustmentTool(governorspring)
11 1U-7310 Torque Adjustment Tool
12 9U-5120 Spanner Wrench
-- 1U-9088 GovernorDisassemblyandAssemblyToolGroup
(Continued)
