3-358

Engine Tools

Engine Lifting and Positioning

4C-9832 Large Engine Roll-Over Stand (Continued)

Model: 3508, 3512 and 3516 Engines

Warranty: Six Months

Item Part Number Description

Additional Service/Repair Parts (Not Shown, Sold Sepa-

rately)

-- 1J-8136 Roll Pin, 3/8 in x 50.8 mm (2.0

in)

-- 1P-2375 Coupler Assembly Quick Con-

nective(Male)

-- 1P-2376 Coupler Assembly Quick Con-

nective(Female)(2)

-- 2K-3549 Roll Pin, 3/8 in x 101.6 mm (4.0

in)

-- 3D-8913 Elbow Pipe, 90 degree - 30

degree NPSM-EXT

-- 5S-2201 Hex Socket Head Bolt, 5/8 in -

11 thd x 31.75 mm (1 1/4 in)

Item Part Number Description

Additional Service/Repair Parts (Not Shown, Sold Separate-

ly) (Continued)

-- 6K-8328 Bearing Cup

-- 7X-0265 Bolt, 1/4 in - 20 thd x 69.8 mm

(2.75 in)

-- 8T-0238 Bearing Cone

-- 9U-5758 Cylinder End Shaft Weldment

-- 9U-5759 Outboard Shaft Weldment

-- 9U-5761 Cylinder Mount Pin

-- 9U-5762 Spacer

-- 9U-5763 Spacer

-- 9U-5764 Special Washer

-- 9U-5767 Bearing Shield

-- 9U-5781 Cotterless HitchPin

-- 9U-7828 Index Plate

Also: 457012 Spring Pin

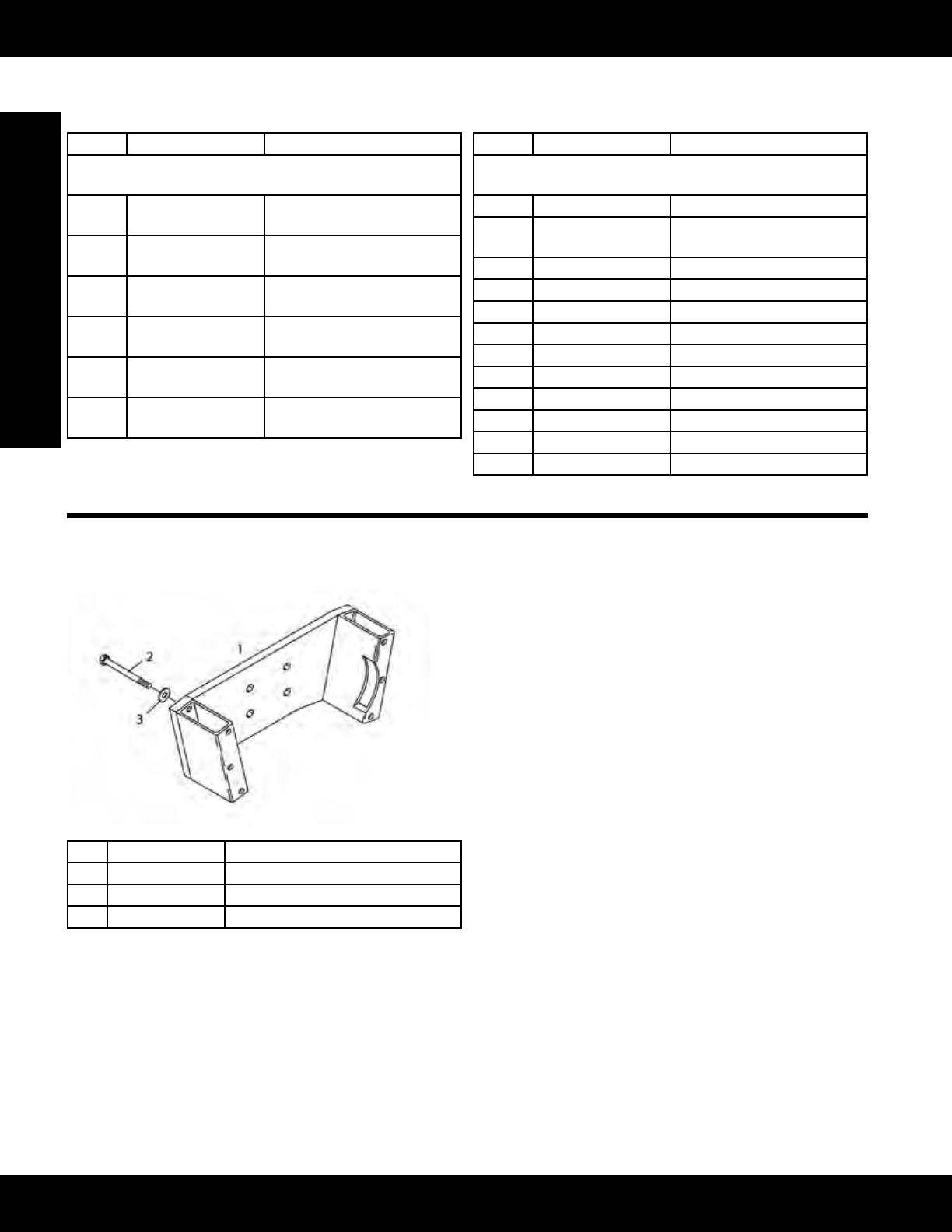

171-4660 Engine Stand Adapter Assembly

Model: 3408 and 3412

Warranty: Six Months

• Usedtomountenginestoroll-overstand(doesnotrequire

removaloffrontgeartrain)

• Usedwith4C-9832LargeEngineRoll-OverStand

• Front and rear plates are interchangeable

• Camshaftworkmustbedonewithfrontbracketremoved

• Flywheelhousingandfrontgearhousingmustberemoved

• Works best as a short block tool

Item Part Number Description

1 171-4660 Engine Stand Adapter Assembly

2 4F-0411 Bolt

3 5M-2894 Washer
