3-96

Engine Tools

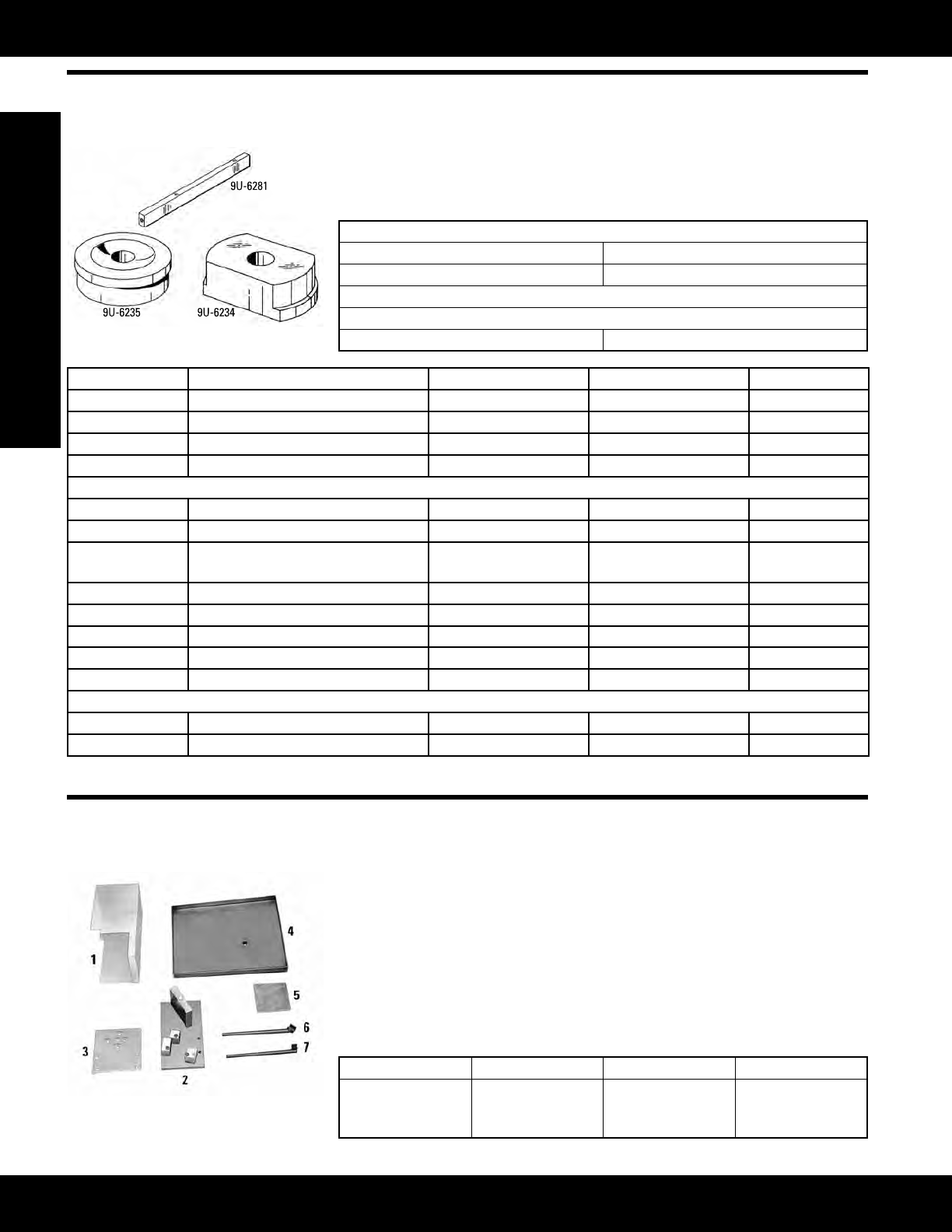

Cylinder Block and Liners

Cylinder Liner Puller Plates and Leg

Model: 3054 and 3056 Engines

Warranty: Six Months

• Usedtoremoveandinstallcylinderliners

• 9U-6234PullerPlateusedtoremoveliners,9U-6235toinstallliners

• Legs used between puller plates and additional tooling (three required)

• Linersmanuallyorhydraulicallyremoved(seeadditionaltoolinglist)

9U-6281 Leg

Overalllength 330 mm (13.0 in)

Internal thread (one end) 1/2-13

IncludedbutNotServiced:

9S-7346 Cylinder Assembly (2)

Part Number Description Use Size Quantity

9U-6281 Leg -- -- --

9S-7346 Cylinder Assembly -- -- 2

9U-6234 Puller Plate Removeliners -- --

9U-6235 Puller Plate Install liners -- --

Additional tooling for hydraulic operation

1D-5119 Jam Nut -- -- 1

1P-2329 Threaded Insert -- -- 1

1A-1460 Bolt (1/2 - 13) (fork mounting hard-

ware)

-- 1/2 - 13 x 2 inL 3

1U-9895 Cross block -- -- --

5F-7347 Head -- -- --

5H-1504 Washer -- -- --

5P-8245 Hard Washer -- -- 3

6V-2183 Forcing Screw

-- -- 1

Additional tooling for manual operation

2J-3507 Nut -- 1 - 8 ThreadL --

8H-0684 Wrench -- -- --

These parts are used for both hydraulic and manual operation.

5P-8709 Piston Cooling Jet Alignment Tool Group

Model: Older Cat

Engines including D353, D377, D398, D899, G379, and G399 only

Warranty: Six Months

• Used to check the direction of cooling jet spray — used for 5S-1765, 4N-8986,

2N-4541, 4N-9881, and 5L-4262 Piston Cooling Jets only

• Used with fuel injection equipment test stands (FITB, FIETS, and AVM)

• Group has been updated to eliminate non-current bench tooling

• Tooling is required for off-engine testing of piston cooling jets for the engines

listedaboveonly

• Partsareservicedseparatelytoreducedealercost(noneedtopurchasetools

alreadyininventory)

Reference

SMHS7267, Use of 5P-8709 Tool Group

Item Description Quantity Where Used

Required Hardware Hose Asssembly 1 Oil supply #6 (37

degree) x 965.2 mm

(38.00 in) long

(Continued)
