Caterpillar Engine Tools Cat Overhaul 3512 Page 221

Operation and Maintenance Manual
2646133
2646144
2594346
3-221
Engine Tools
Fuel System Test Tools

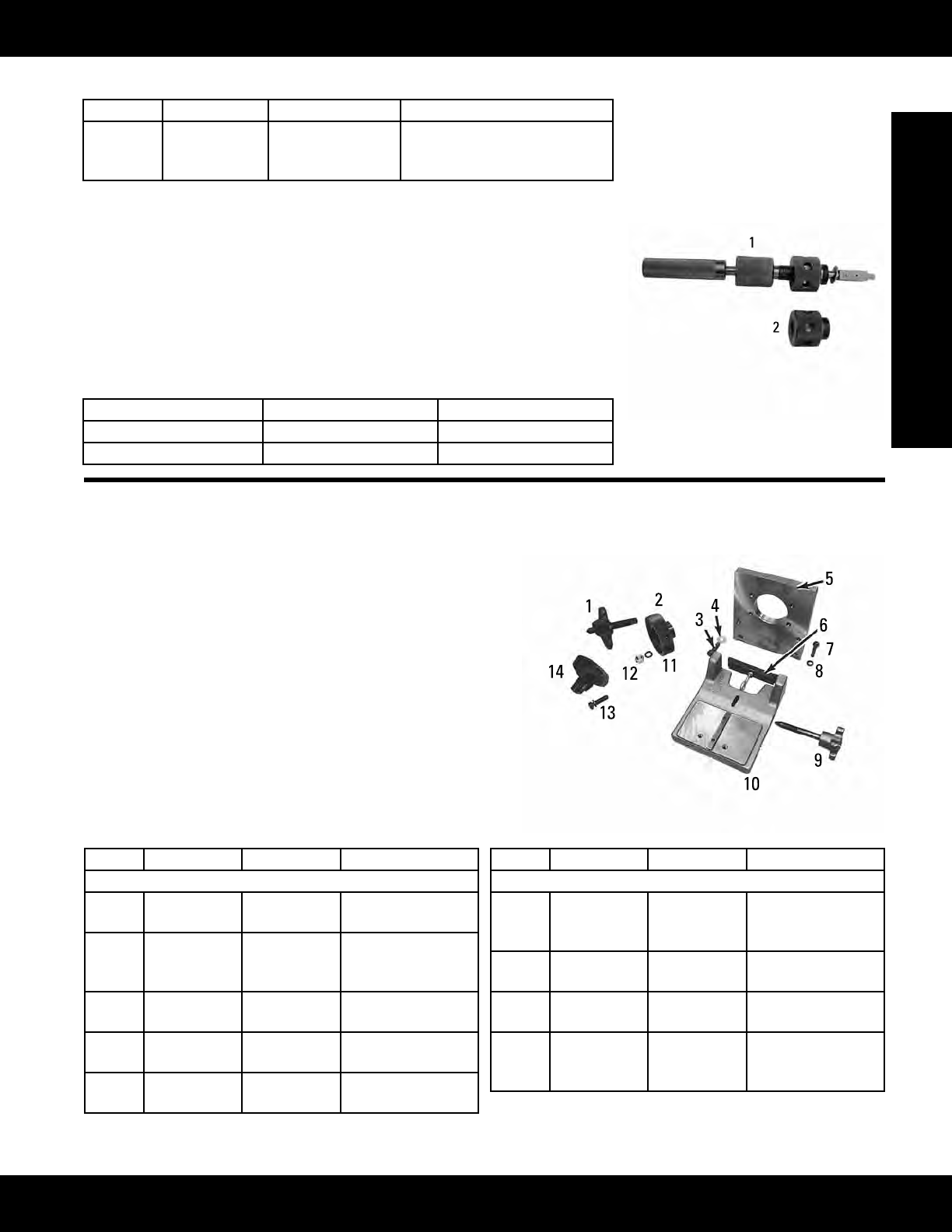

Disassemble Tools for Zexel and Nippondenso Fuel Pump (Continued)
Item Part Number Description Use
7 4C-4956 Nut Socket removesandinstallsyweight
retaining nut (specially de-
signed)
195-0768 Thread Adapter
This adapter is used to adapt the 4C-5601 Plunger Compressor to Zexel pumps with
M28 threaded plugs.
To remove existing M26 thread adapter:
1. Removeblockwithspringngers(heatmayberequiredtoloosenthreadlock
compound).
2. RemovewasherandcurrentM26threadadapter(silver).
3. Install new M28 thread adapter (black oxide).
4. Installwasherandblockwithspringngers(use4C-4030ThreadLocktosecure
blockwithspringngers).
Item Part Number Description
1 4C-5601 Plunger Compressor
2 195-0768 Thread Adapter
Zexel and Nippondenso Fuel Pump and Governor Test and Adjust Tools
Model: 3046, 3064 and 3066 Engines
Warranty: Six Months
• Usedtotestandadjustfuelpumpandgovernorafteran
overhaul
• Used with discontinued 8T-1001 Electronic Position
Indicator, 8T-1002 Indicator Probe, 6V-3075 Indicator, and
5P-4163 Indicator Tip
References
NEHS0622, Tool Operating Manual, Testing and Adjusting Fuel
InjectionPumpandGovernoron3064and3066Engines
SENR6573, Supplement, Nippondenso Fuel System
Item Part Number Description Use
Mounting Tools
1 8S-2264 Puller Group helpsremovedrive
adapter from pump
2 9U-7493 DriveAdapter attaches pump to
teststanddrive
spindle
3 0T-0722 Bolt attaches pump to
test stand base plate
4 4S-9191 Flat Washer attaches pump to
test stand base plate
5 9U-7494 Pump Mount-
ing Plate
attaches pump to
test stand base plate
Item Part Number Description Use
Mounting Tools (Continued)
6 6V-9138 Clamp As-
sembly
pump mounting base
(part of Fuel Injec-
tion Test Stand)
7 0T-0924 Bolt attaches pump to
test stand base plate
8 3B-4506 Lock Washer attaches pump to
test stand base plate
9 6V-9134 Screw As-
sembly
pump mounting base
(part of Fuel Injec-
tion Test Stand)
(Continued)
