3-339

Engine Tools

Camshaft and Timing Gear Tools

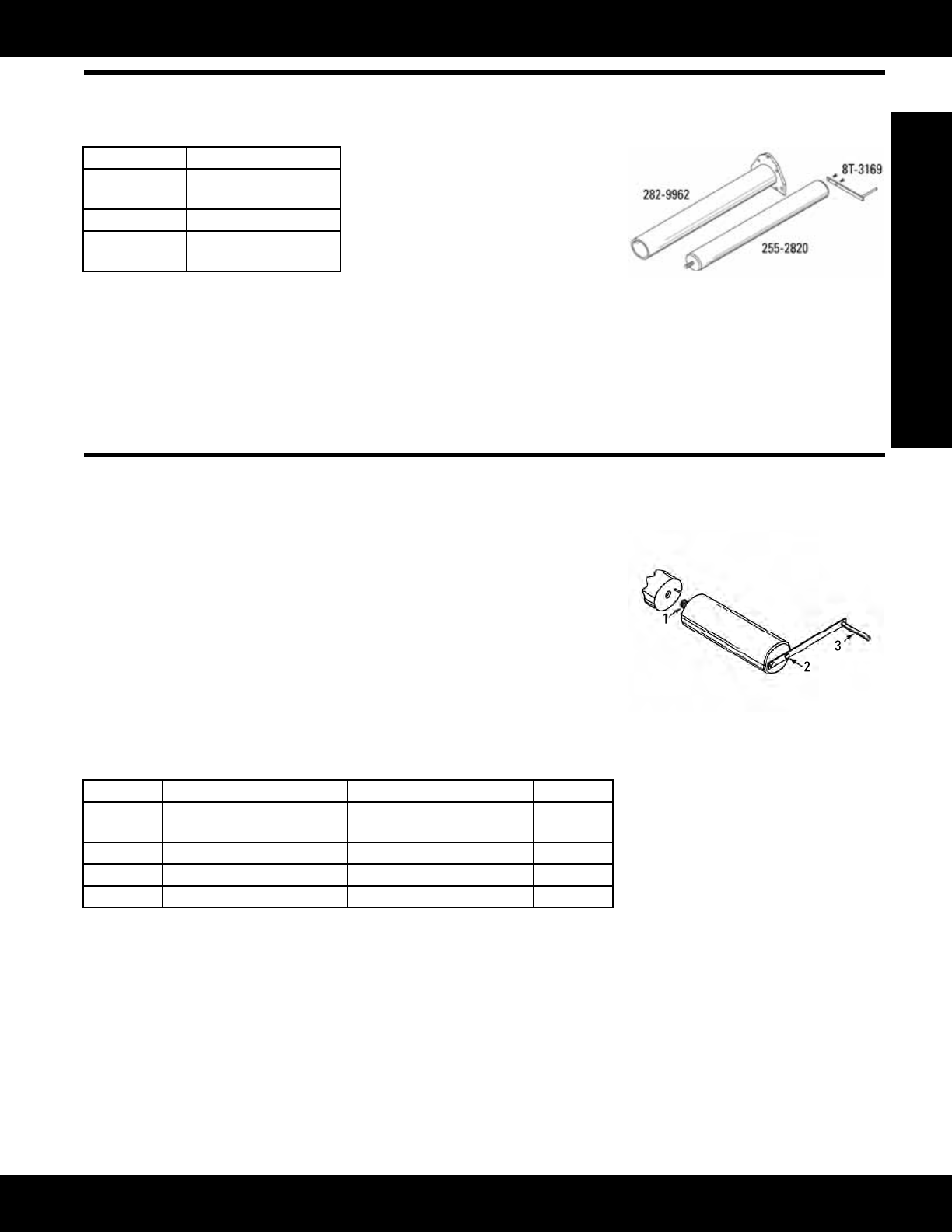

Camshaft Removal and Installation Tools

Model: C175 Engine

Warranty: Six Months

• Usedtoremoveandinstallcamshaft

from front or rear of engine

• Pilot assembly used with 8T-3169

Turning Handle

• Guide can be mounted to cylinder

block or to front or rear engine

rolloveradapterplates

• Pilot assembly simultaneously en-

gages two cam bearings to ensure

proper alignment

• Camshaft pilot and turning handle

providesmoothaccessintocam

bearings

Reference

RENR7466, C175-16 Engine Disassembly

and Assembly Manual

Part Number Description

255-2820 Camshaft Pilot As-

sembly

8T-3169 Crank Assembly

282-9962 Camshaft Guide As-

sembly

125-0200 Camshaft Pilot

Model: 3500B Engine with Large Diameter Camshaft

Warranty: Six Months

• Usedtoremoveandinstall106-4584Camshaft—simplythreadsontoendof

camshaftsandfunctionsasaguideduringinstallationorremoval

• Used with 8T-3169 Crank Assembly to help rotate camshaft during engine as-

sembly and disassembly (use two 0S-1617 Bolts to attach crank assembly to

camshaft)

• Length of pilot is designed to be supported by 2 camshaft journals at the same

time(preventscamshaftfromdroppingasitisinstalledthrougheachbearing

journal)

• Grooveinendofpilotprovidesclearancefordowelpinincamshaft(eliminates

removalofdowel)

• Madefromaluminumtopreventscratchingorotherdamagetojournalsurfaces

• Diameter: 91.9 mm (3.62 in)

• Length: 305.0 mm (12.0 in)

Item Part Number Description Quantity

1 2P-1303 Taperlock Stud (part of 125-

0200)

2 0S-1617 Bolt 2

3 8T-3169 Crank Assembly --

-- 125-0200 Camshaft Pilot --
