Caterpillar Engine Tools Cat Overhaul 3512 Page 258

Operation and Maintenance Manual
2647255
2595832
2595845
3-258
Engine Tools
Fuel System Repair and Adjust

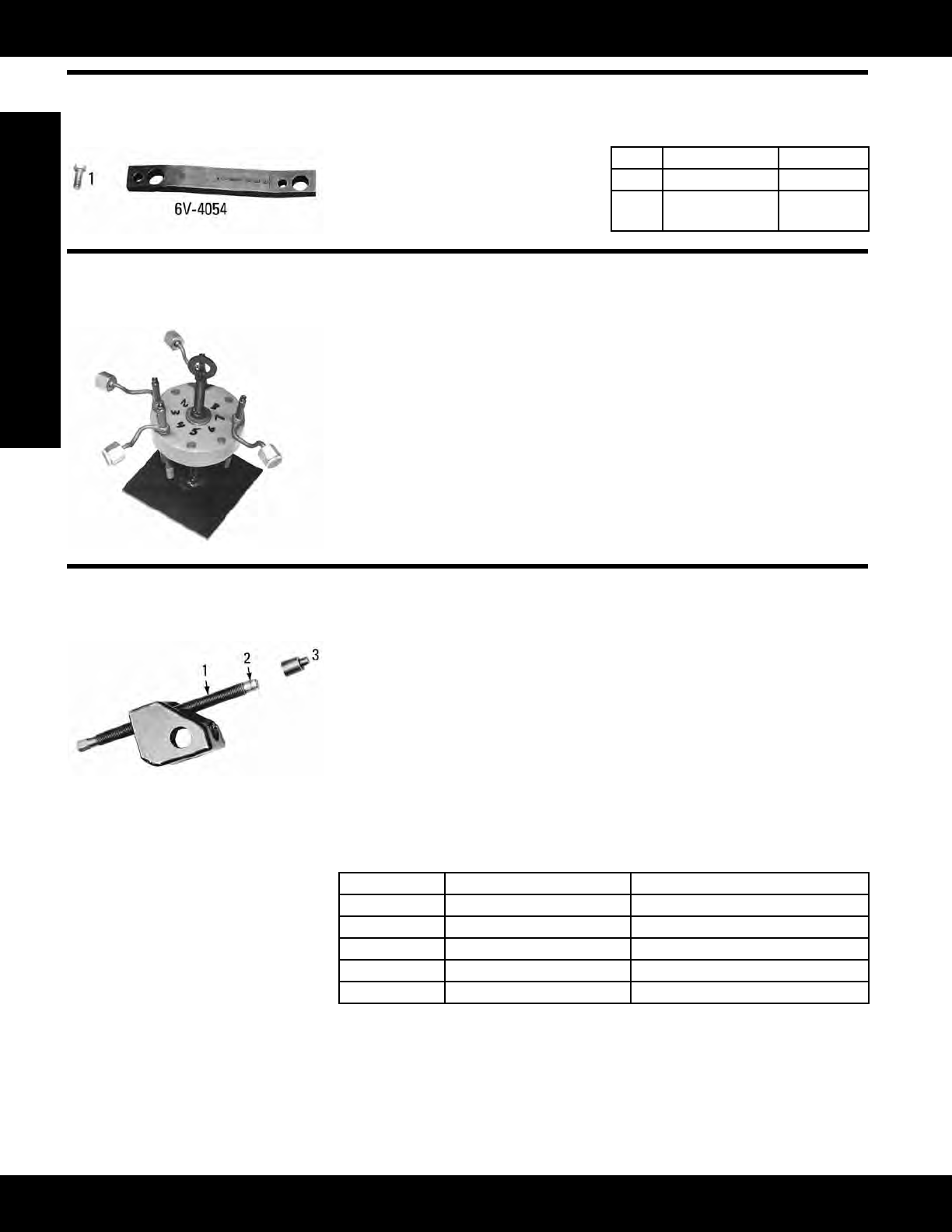

6V-4054 Nozzle Puller Group
Model: D5B, D6D, 225B, 225B-3208, 3208, 518
Warranty: Six Months
• 6V-4054 Puller Group used with
6V-4061Grouptoremove7N-0449
Nozzles in 3300 Series DI Engines
(all parts of 6V-4061 Puller Group,
except 6V-4153 Plate, needed)
Item Part Number Description
1 0S-1618 Bolt
-- 6V-4054 Nozzle Puller
Group
FT1663 Fuel Nozzle Holder
Model: Cat
®
Engines
Warranty: None
• Holdsandidentiesupto8fuelinjectionnozzles
• Fabricatedfrom9L-7276Cover
6V-6980 Nozzle Puller Group
Model: 3300
Warranty: Six Months
• Replaces discontinued 6V-3129 Puller
• Usedforremoving8N-7003and8N-7005Nozzlesusedin3300SeriesEngines;
canalsobeusedforremovalofdiscontinued8N-7001and8N-7002Nozzles
• Requiredbecausecarbonbuild-uparoundnozzlestemspreventnozzlesfrom
beingremovedbyhand
NOTE:
The 6V-6980 Puller Group should only be used when less than 150 pound-inches
torque is required to pull the nozzle. The nozzle stem will bend or break if more than
150 pound-inches torque is applied with the 6V-6980 Puller. For nozzles that are
extremelydifculttoremove,theFT1533Adapterand1P-0074SlideHammerare
stillrecommended.Whenusingthesetools,itisoftennecessarytoremovevarious
engine components.
Item
1
Part Number Description
-- 6V-6980 Nozzle Puller Group
1 6V-6197 Screw
2 6V-6198 Clip
3 6V-6199 Button
4
2
6V-6130 Puller
1
Item4:6V-6130Puller(notserviced)
2
Notserviced
