Caterpillar Engine Tools Cat Overhaul 3512 Page 259

Operation and Maintenance Manual
2595865
2595889
3-259
Engine Tools
Fuel System Repair and Adjust

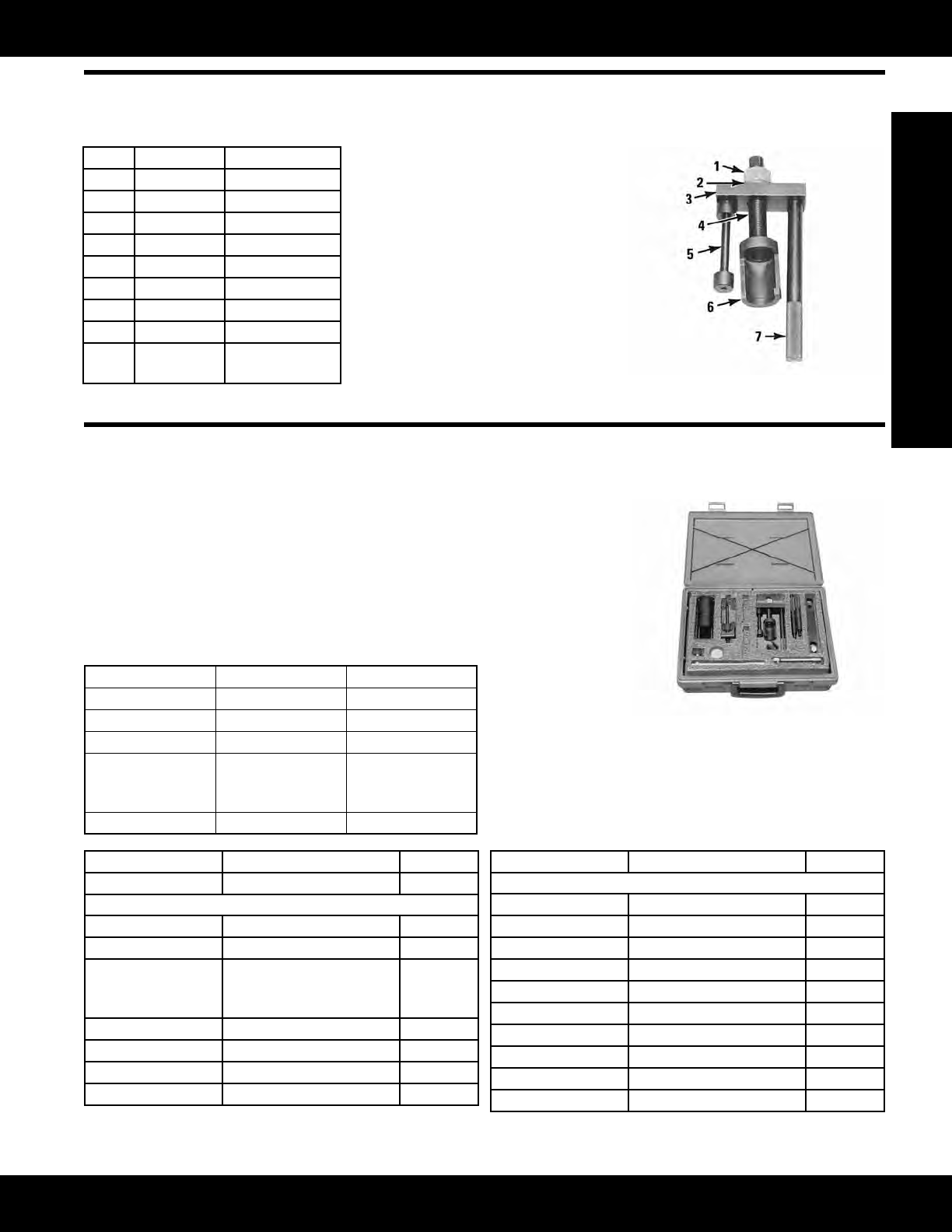

6V-6976 Puller Group
Model: 3204
Warranty: Six Months
• Usedtoremovediscontinued1W-
3996 Direct Injection Fuel Nozzles
on3204Engines;nozzlestendto
stick in their bores due to carbon
deposits, etc.
NOTE:
Asindicatedinthepartslist,several
parts of the 6V-6976 Puller Group are also
used in the existing 6V-4061 Nozzle Puller
Group. If the dealer already has the 6V-
4061 Group, only the last 4 parts (items 5,
6, 7 and 8) are needed to assemble the
6V-6976 Group.
Item Part Number Description
1 1B-4206 Nut
2
1
2S-5657 Washer
3
1
6V-4153 Plate
4
1
6V-4152 Screw
5 6V-6979 Leg
6 6V-6978 Head
7 6V-6977 Leg
8 1D-4716 Nut
-- 6V-6976 Nozzle Puller
Group
1
Also part of 6V-4061 Puller Group
6V-7020 Nozzle Puller Group
Model: Cat
®
Engines
Warranty: Six Months
• Combines all components of 5 nozzle puller groups listed
below without duplicating commonly-used components
• Alsoincludedarevariousmaintenanceitems,suchas6V-
4979 Carbon Stop Seal Too, 25 extra carbon stop seals and
6V-4089Reamerforcarbonremoval;socket,extension
andhandleincludedforremovalof5/16inch-12pointhold
down screws used on some nozzle clamps
Reference
SEHS8094, Special Instruction
Nozzle Puller Group Engine Used On Nozzle Part Number
6V-6981 3406 8N-7006
6V-6980 3300 Series 8N-7005, 8N-7003
6V-6976 3204 --
6V-4061 1100, 3100 and 3200
Series
9N-2366, 9N-3299,
1W-5829, 9L-6969,
9N-3299
6V-4054 3300 Series 7N-0449
Part Number Description Quantity
6V-7020 Nozzle Puller Group --
Service/Repair Parts
5P-4199 Handle 1
5P-7276 Container 1
6V-3072 Case - Plastic, NEEG2574
Group Decal on lid (9U-
7402 Group)
1
6V-4054 Nozzle Puller Group 1
6V-4089 Reamer Assembly 1
6V-4149 Jaw 1
6V-4150 Leg 1
Part Number Description Quantity
Service/Repair Parts (Continued)
6V-4151 Leg 1
6V-4979 Carbon Stop Seal Tool 1
6V-6976 Nozzle Puller Group 1
6V-6980 Nozzle Puller Group 1
6V-6982 SleeveAssembly 1
6V-6983 Adapter 1
6V-7031 Block 1
9L-9098 Carbon Stop Seal 25
9S-1715 Socket 1
9S-1721 Extension 1
