3-28

Engine Tools

Cooling System

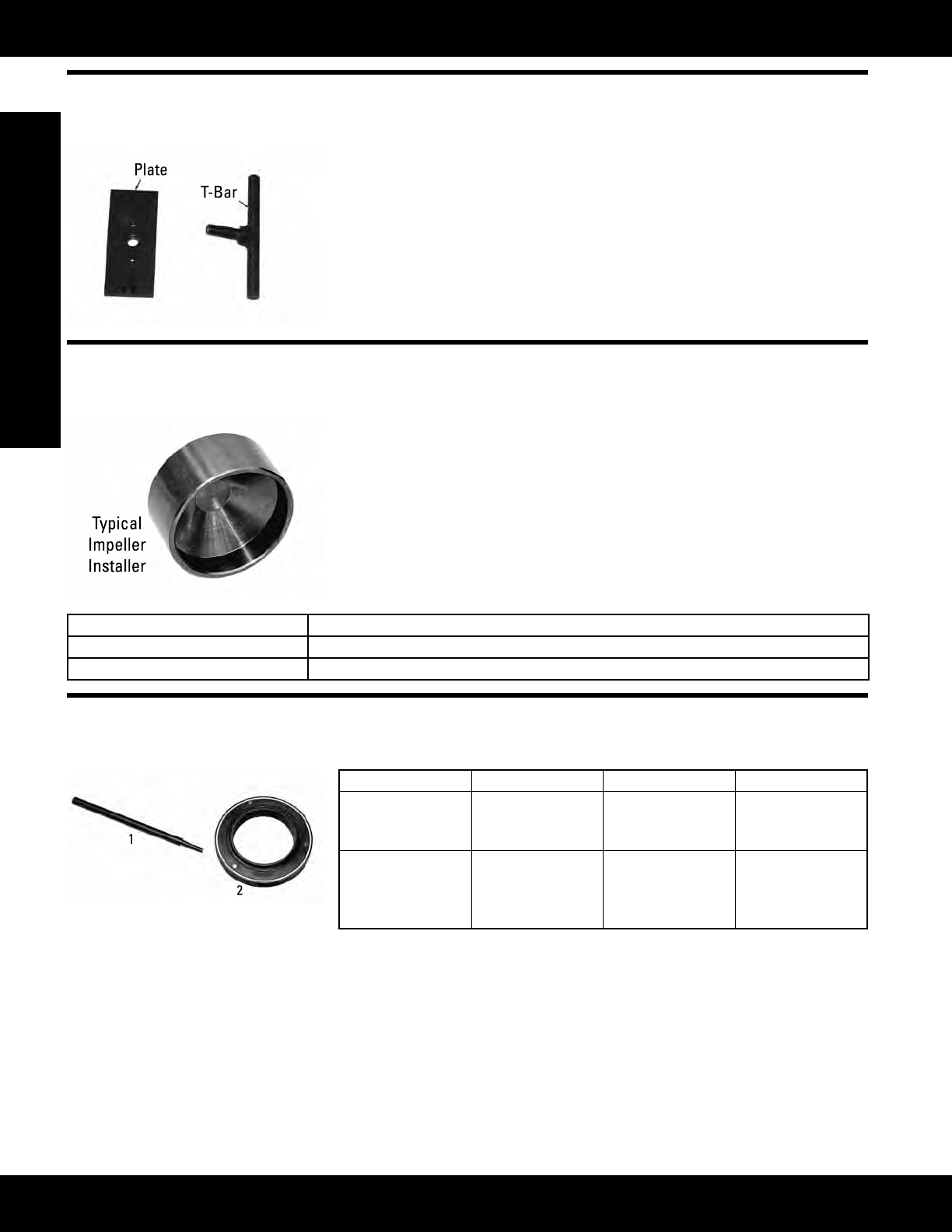

FT1783 Fixture

Model: Multiple Engine Models

Warranty: None

• Facilitatesdrillingofventholesinwaterpumpimpellers

• Consists of locating plate and threaded T-bar (can be fabricated according to

FT1783 drawings)

Impeller Installers

Model: 3204, 3208

Warranty: Six Months

• Usedwithanarborpresstopositionimpellertospeciedclearancefromwater

pump body

• Designed to bottom on water pump body when impeller is in correct position on

shaft

• 8T-3142 Impeller Installer for all 3204 Family Engine water pumps

• 8T-0457 Impeller Installer for all 3208 Family Engine water pumps

Part Number Description

8T-3142 Impeller Installer - 3204 Family Engine water pumps

8T-0457 Impeller Installer - 3208 Family Engine water pumps

Fabricated Tools for Reconditioning and Testing 3400 Series Engine Water Pumps

Model: 3400

Warranty: None

Item Part Number Description Use

1 FT1760 Driver Used with hammer

todriveshaftfrom

pump assembly

2 FT1762 TestDriver Used with V1-A

Vacuum Tester to

test water seal after

assembly
