Caterpillar Engine Tools Cat Overhaul 3512 Page 153

Operation and Maintenance Manual
2592329
2592348
2592366
3-153

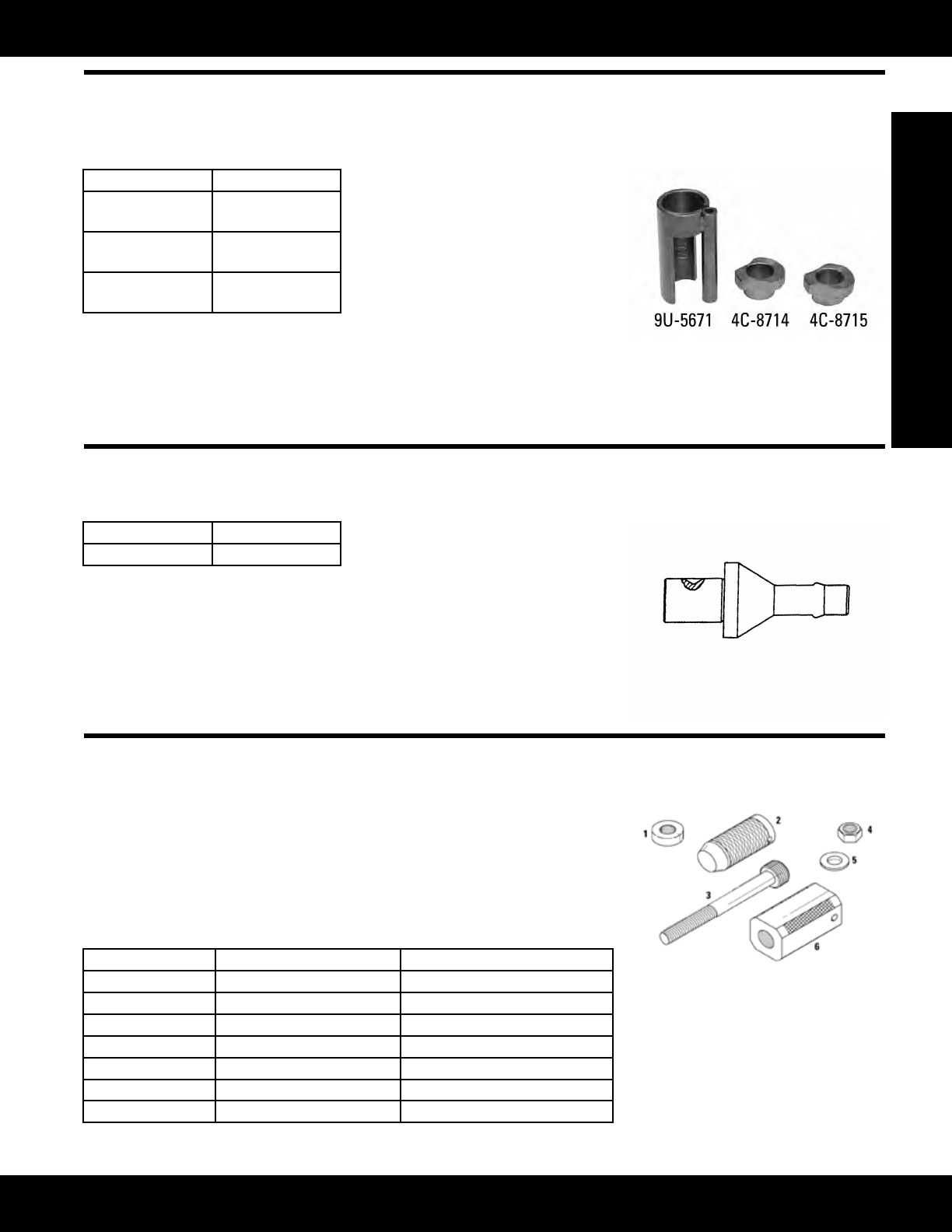

Engine Tools
Cylinder Head, Valves and Cam Followers
4C-8714 Guide Bushing (Large), 4C-8715 Guide Bushing (Small)
9U-5671 Reaction Sleeve
Model: 3114 and 3116 Engines
Warranty: Six Months
• Used to replace and ream injector
sleeveswithoutremovingvalve
springs—savestime
• 9U-5671 is designed to clear the
valvespringsandprovideadequate
support for pulling the injector
sleeve
• 4C-8714 and 4C-8715 Guide Bush-
ingsallowreamingandsleeve
installationwithoutvalvespring
removal
Reference
SEHS9120, Special Instruction
Part Number Description
4C-8714 Guide Bushing
(large)
4C-8715 Guide Bushing
(small)
9U-5671 ReceiverSleeve
Adapter
1
1
9U-5671Sleeve36.0mm(1.42in)98.0mm(3.86in)Openend
4C-6591 Bottom Swage
Model: 3176
Warranty: Six Months
• Replaces discontinued 4C-6714 Bot-
tom Swage
• Usedtoinstallinjectorsleevesin
3176 Engine cylinder heads
• Addition of pilot extension and lead-
in chamfer ensure proper swaging
ofbottomofinjectorsleeve
Reference
SEHS9246, Special Instruction
Part Number Description
4C-6591 Bottom Swage
9U-6891 Injector Tool Group
Model: C-10, C-12, and 3406E Engines
Warranty: Six Months
• 128-7889 Puller Bridge replaces discontinued 9U-7260 Puller Bridge (new puller
bridge can be used on all three engines)
• Injectortoolgroupisusedtoremoveandinstallinjectorsleeves
References
SENR6421,3406EServiceManual,DisassemblyandAssembly
SENR1002, C-10 Disassembly and Assembly
SENR1007, C-12 Disassembly and Assembly
Item Part Number Description
1 9U-6877 Thrust Bearing
2 9U-7258 DriverCap
3 221-9778 Puller Stud
4 4K-0367 Nut - Full
5 5P-8247 Hard Washer
6 128-7889 Puller Bridge
-- 9U-6891 Injector Tool Group
