Caterpillar Engine Tools Cat Overhaul 3512 Page 145

Operation and Maintenance Manual
2828271
2828506
2592040
3-145
Engine Tools
Cylinder Head, Valves and Cam Followers

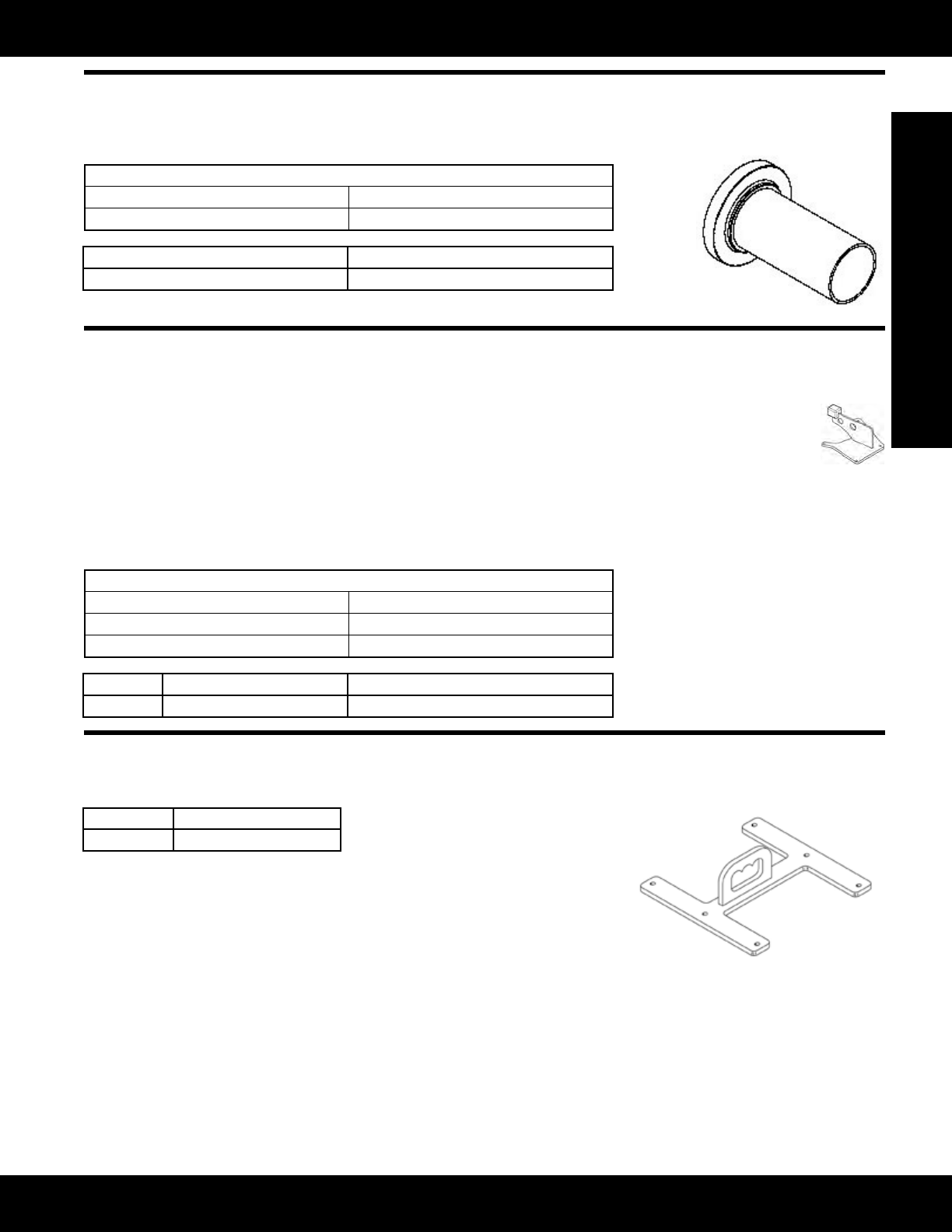

367-3535 Timing Case Cover Alignment Tool
Model Usage: C7.1
Warranty: Six Months
• Usedtocorrectlyalignpressedsteeltimingcasecovertothetimingcase
Specications
Dimensions 5.8 x 3.75 x 3.75 in (147 x 95.25 x 95.25 mm)
Material Steel
Part Number Description
367-3535 TimingCaseCoverAlignmentTool
371-1079 Head Lifting Bracket
Model Usage: C175
Warranty: Six Months
• Allows operator to quickly and easily lift engine cylinder head
• Multipleliftingpointsenablescylinderheadtobeatliftedlevelorattheangleof
the block deck
• Threadedblockallowsconvenientuseofhandle(126-6920)
• RequiresveM8-1.25x25mm(6V-3940)andtwoM14-2.0x35mm(6V-8550)
bolts (purchased separately) for fastening bracket to cylinder head
• CE Compliant
Reference
NEHS1128, Tool Operating Manual
Specications
Part Number Description
Weight 3.7 kg (8.61 lbs)
Working Load Limit 136 kg (300 lbs)
Part No. Description Dimensions
371-1079 Head Lifting Bracket 286 x 253 x 128.1 mm (113 x 10 x 5 in)
185-3145 Lifting Bracket Assembly
Model: 3406E, 3456, C-15, and C-16 Engines
Warranty: Six Months
• Used to quickly and easily lift cylin-
der heads
• Attaches with six 1B-7182 Bolts and
9M-1974HardWashersorequiva-
lent (not included)
• Designed for a bare cylinder head,
with or without camshaft
• Includes multiple hook points for
proper balancing
Part Number Description
185-3145 Lifting Bracket Assembly
