3-212

Engine Tools

Fuel System Test Tools

NEHS0594 Using TMI for Finding Injection Pump Off Engine Test Specications

Model: Fuel Injection Equipment Test Stand

Warranty: None

• ContainscompleteinstructionstoobtaintestspecicationsthroughTMIonCaterpillar

Network

• Newdataformatgiveslargerselectionofdataforeachpump(doesnotrequireresettingpump)

• Datacanbeobtainedusinginjectionpumpandgovernorgrouppartnumber,orenginearrangementnumber

• Mostcurrentdataisalwaysavailableonline

Reference

LEBQ0724, TMI Technical Marketing Information

Calibration Fluid

Model: Cat

Fuel Injection Test Bench and Cat

Fuel Injection Equipment Test Stand

Warranty: Six Months

• SAE J967 (ISO 4113) Calibration Fluid recommended by Cat

for use in fuel injection test benches, 5P-4150 Nozzle Tester

Group and discontinued 6V-4022 Injector Tester

Part Number Size

6V-6067 208 L (55 US gal)

6V-6068 18.9 L (5 US gal)

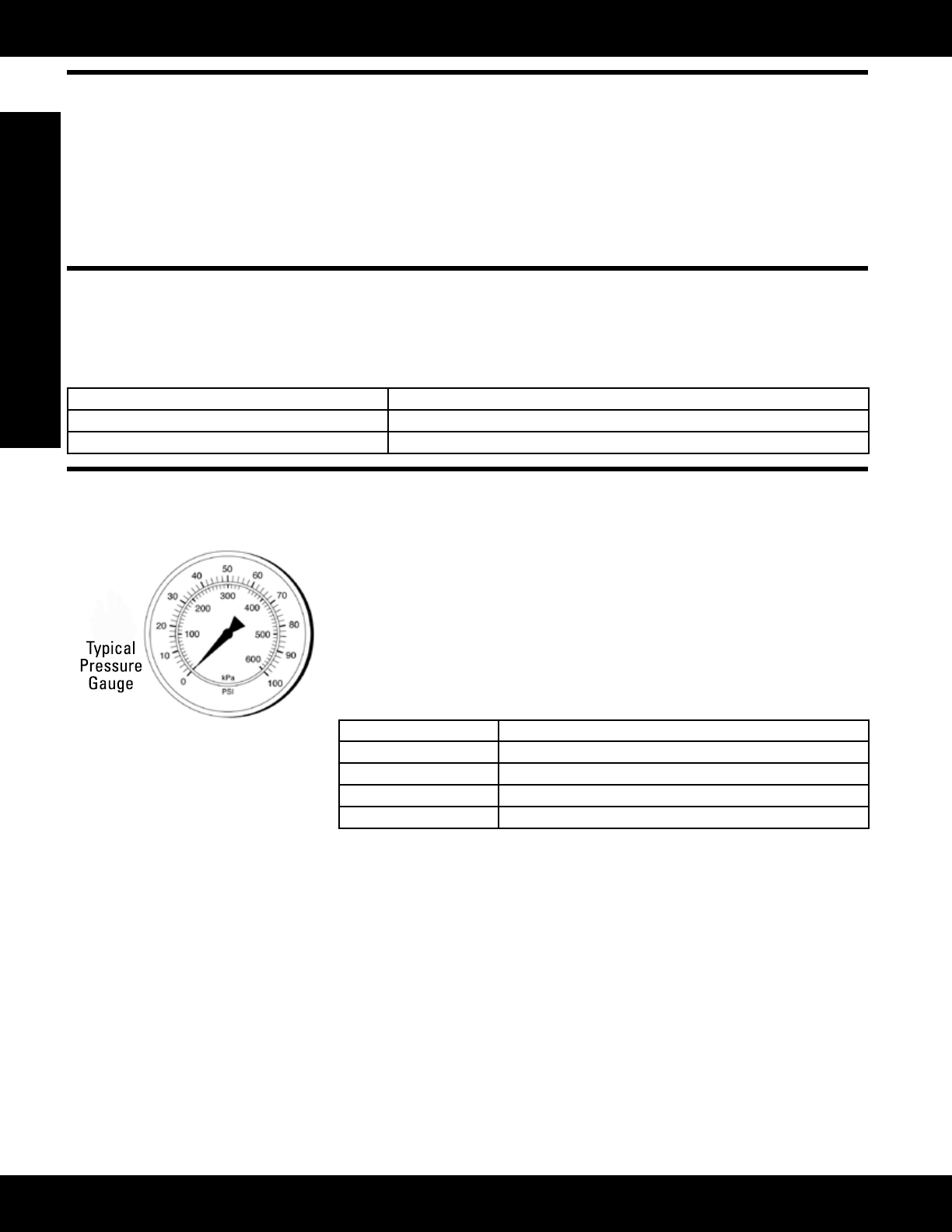

Pressure Gauges

Model: All Models with Pump and Line Fuel Systems

Warranty: Six Months

• Used to replace original gauges on the discontinued 6V-7900, discontinued 1U-

8212, and discontinued 1U-8213 Fuel Injection Test Benches, and discontinued

132-9753 and discontinued 139-1437 (AVM)

• Replaces without modifying test stand

• Displays both kPa and psi

• Diameter: 102 mm (4.0 in)

• 1/4 inch NPT lower back connection

• Liquid-lled,chrome-platedcastbrasscase

• Clampandproleringincludedforpanelmounting

Part Number Replaces Hartridge Gauge

4C-4617 0 to 7000 kPa (0 to 1000 psi)

9U-6099 -100 to 4000 kPa (-14 to 580 psi)

9U-6100 0 to 700 kPa (0 to 101 psi)

8T-7637 0 to 1400 kPa (0 to 203 psi)
