Caterpillar Engine Tools Cat Overhaul 3512 Page 5

Operation and Maintenance Manual
2641610
2641571
2896431
2641333
3-5
Engine Tools
Air Induction

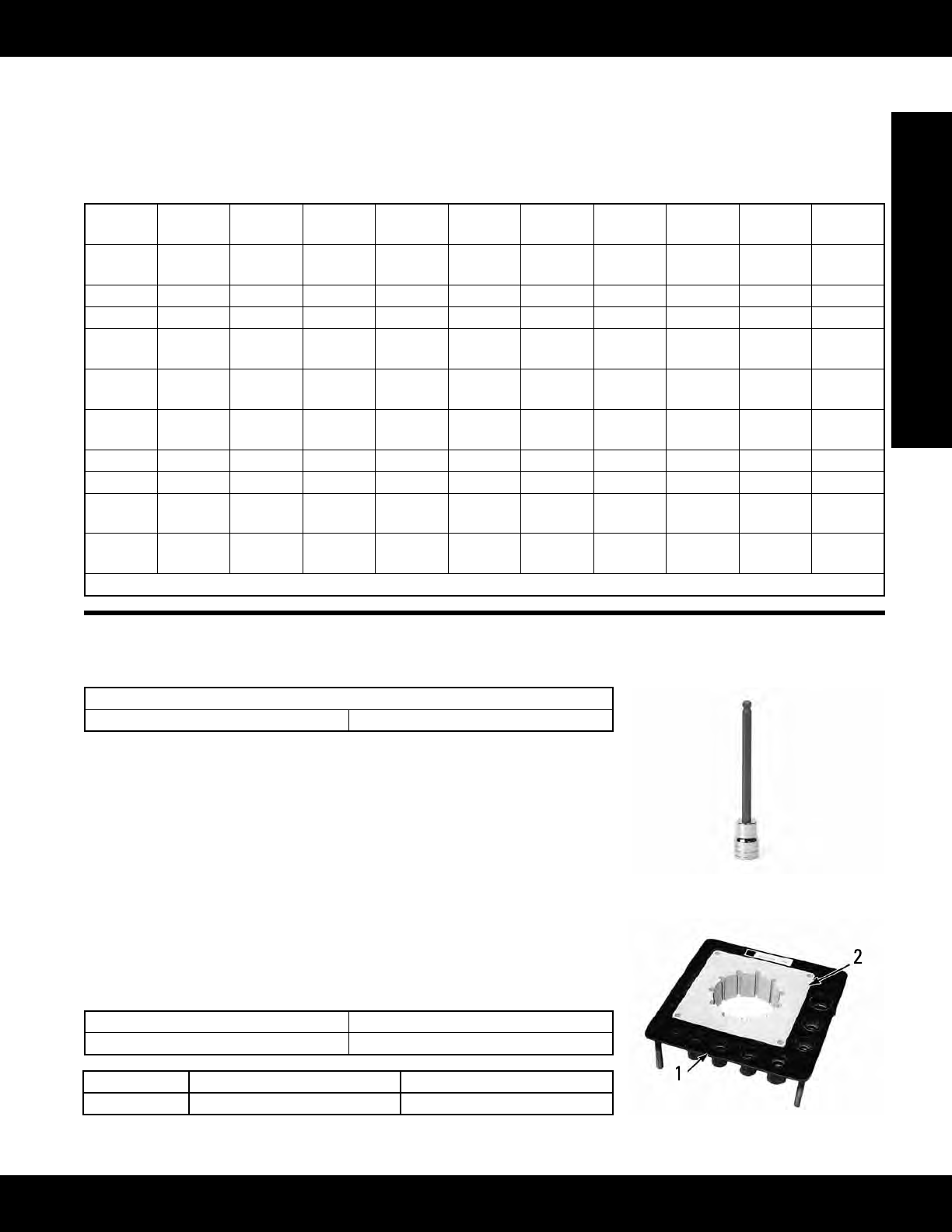

Turbocharging Reconditioning Tools (Continued)
Model: Multiple Engine Models
Warranty: Six Months
1
9S-6343 replaced FT0622
2
9S-6363 replaced FT0621
Manufacturer: AiResearch
Part No. Descrip-
tion
T6 T12 T114 T18 T24 T3019 T04 TV81 TW81
FT0165¹ Fixture
(Modied)
X X X X X X X X X
FT0165 Fixture X X X X X X
FT0168 Adapter X X
FT0170 Support
Screw
X X X X X
FT0174 Driver
Tool
X X X X X X X X
FT0745 Pliers,
Modied
X X X X X X
FT0808 Adapter X
FT1354 Adapter X X
9S-6363 Fixture
Group
X X X
9S-6343 Cartridge
Fixture
X X X
¹FT0165(Modied)replacesFT0165TurboFixture
FT3191 Driver Socket
Model: 770/772, D8 and 374/390
Warranty: None
Specications
Length 84.14 mm (3.31 in)
9S-6343 Fixture Assembly and Turbine Holders
• Used to disassemble turbocharger rotating assemblies by positioning turbine
wheelin9S-6343FixtureAssemblyforremovalofshaftnut
• Contains sockets required to hold Schwitzer turbine wheels
• Setof4turbineholdersavailabletoholdAiResearchturbinewheels
• Frameofxtureretainsholderinplace
Item Description
2 TurbineHolders(notserviced)
Item Part Number Description
1 9S-6343 Fixture Assembly
1
1
9S-6343 replaces FT0622
