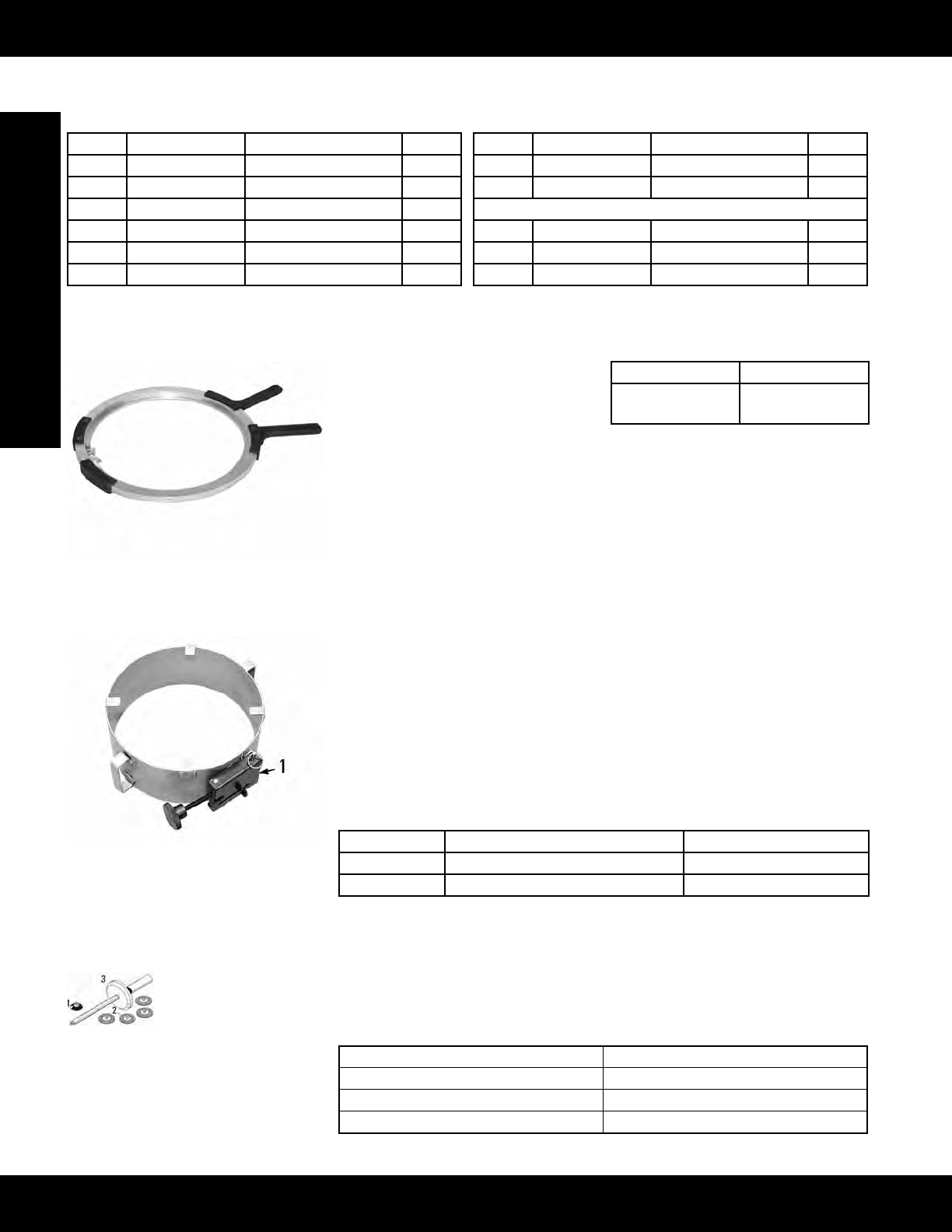

Caterpillar Engine Tools Cat Overhaul 3512 Page 384

Operation and Maintenance Manual
2667400
2667535
2667472
2667598
3-384
Engine Tools
3600 Engine Tools
4C-8568 Liner Puller Group (part of 9U-5107 Group) (Continued)
Model: 3600 Spark Ignited Engines
Warranty: Six Months
Item Part Number Description Qty.
7 316-1493 Hydraulic Puller Group 2
8 6V-7079 Bridge --
9 8T-2836 Nut 2
10 4B-5278 Washer 2
11 299-5231 Leg Assembly 2
12 4D-3120 Bolt 8
Item Part Number Description Qty.
13 4H-6996 Spring Pin 8
-- 4C-8568 Liner Puller Group --
Not shown
-- 4B-5276 Bolt Washer 2
-- 2K-6073 Bolt 4
-- 1B-4331 Nut 2
4C-8995 Ring Expander Group (part of 9U-5107 Group)
Model: 3600 Spark Ignited Engines
Warranty: Six Months
• Usedtoremoveandinstallpiston
rings without damage to rings or
piston
• Designedtot30cm(11.8in)piston
rings
Part Number Description
4C-8995 Ring Expander
Group
4C-9043 Piston Ring Compressor Group (part of 9U-5107 Group)
Model: 3600 Spark Ignited Engines
Warranty: Six Months
• Used to install piston and connecting rod assemblies
• Band-type ring compressor for 30 cm (11.8 in) piston
• Over-centeradjustablelock
• Proper seating of band assembly on cylinder liner to minimize possibility of ring
breakage
• 4 tabs for support while securing to piston
• 2 handles for easier positioning of piston and rings
References
SENR4255,ServiceManual
SENR5535,ServiceManual
Item Part Number Description
-- 4C-9043 Compressor Group
1 6V-4027 Handle Assembly
9U-5156 Cleaning Tool Group (part of 9U-5107 Group)
Model: 3600 Spark Ignited Engines
Warranty: Six Months
• Used to clean prechamber seats on cylinder heads
• Usedwith3/8inchdrivespeedhandle(easilyremovesrustwith10to20turnsof
handle)
• Pilot helps to keep tool aligned
Extension length 23 cm (9.0 in)
Major OD 78 mm (3.0 in)
Driveend 3/8 in square (female)
Extension end 1/4 - 20 thd
(Continued)
