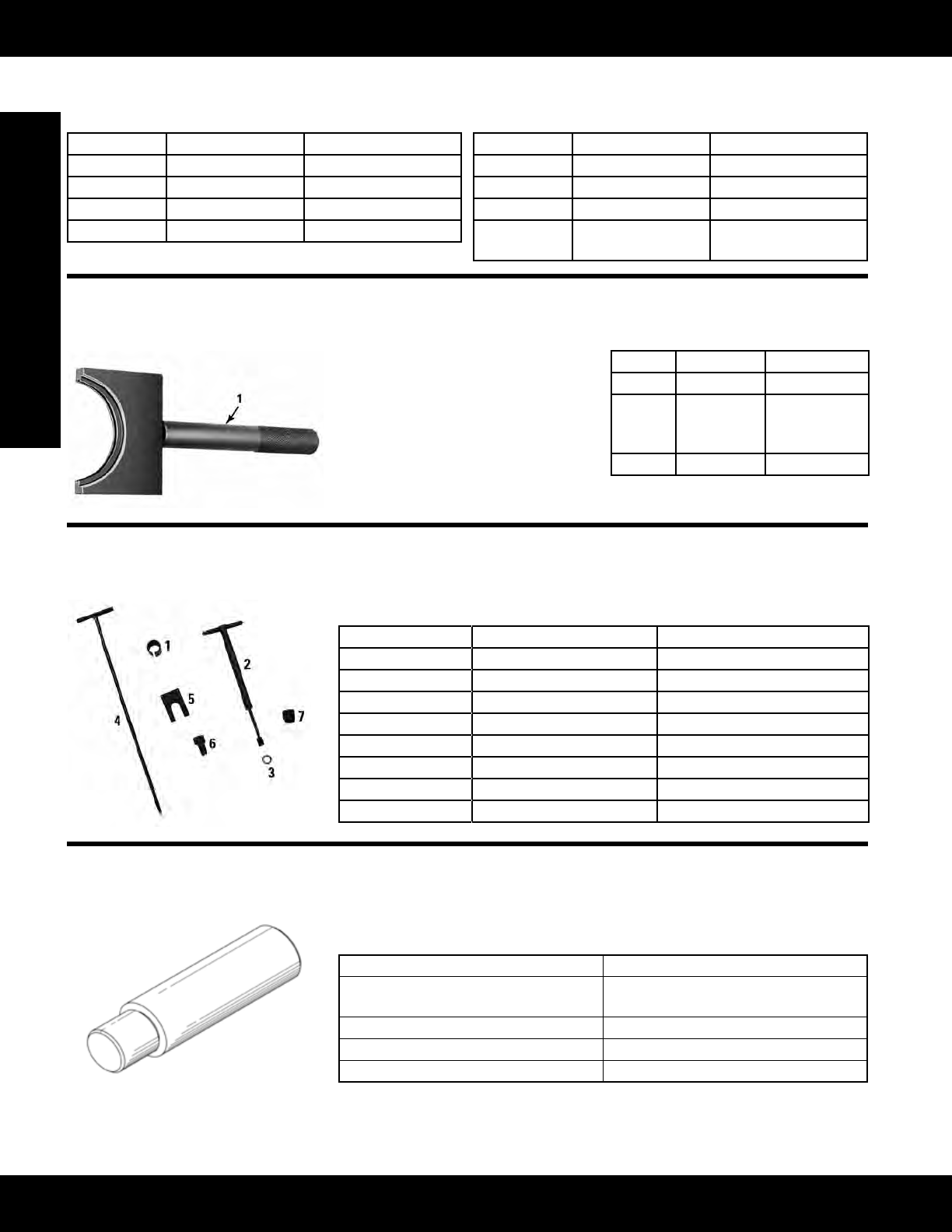

3-138

Engine Tools

Cylinder Head, Valves and Cam Followers

5P-7333 Bridge Dowel Repair Tool Group (Continued)

Model: 3400

Warranty: Six Months

Item Part Number Description

1 5P-7330 Screw

2 5P-7325 Driver

3 5P-7331 Reamer

4 5P-7332 Reamer

Item Part Number Description

5 5P-7326 Drill Bushing

6 5P-7328 Drill Bushing

7 5P-7327 Drill Bushing

-- 5P-7333 Bridge Dowel Repair

Tool Group

3P-2243 Installer Group

Model: 6.25 inch Bore V-Engines

Warranty: Six Months

• Used to locate and install seals

betweenvalvelifterguidebrackets

on later 158.75 mm (6.25 in) bore V-

engines (D379B, D398B, D399)

Item Part Number Description

1 1P-0529 Handle

-- 0L-1404 Stud (attaches

handle to

installer)

-- 3P-2243 Installer Group

5P-7433 Cam Follower Tool Group

Model: 3400

Warranty: Six Months

• Usedforremovalandinstallationofvalvelifters

Item Part Number Description

1 417-1323 Compressor

2 5P-2408 Handle Assembly

3 5P-2685 Nut

4 5P-6599 Handle Assembly

5 5P-2395 Holder Assembly

6 5P-6601 Collet

7 5P-2400 Compressor

-- 5P-7433 Cam Follower Tool Group

Rocker Arm Bearing Installation Tools

Model: See below

Warranty: None

• Driversusedforproperinstallationofrockerarmbearings

• Material: SAE4140 steel

Part Number Model

FT0190 D339, D342, D353, G353, D397, G397, D375,

G375

FT0191 D326, D337

FT0192 D311H, D320, D330, D333, G333, 1670, 1673

FT0193 D398, G398, D379, G379
