Caterpillar Engine Tools Cat Overhaul 3512 Page 280

Operation and Maintenance Manual
2596743
3-280
Engine Tools
Fuel System Repair and Adjust

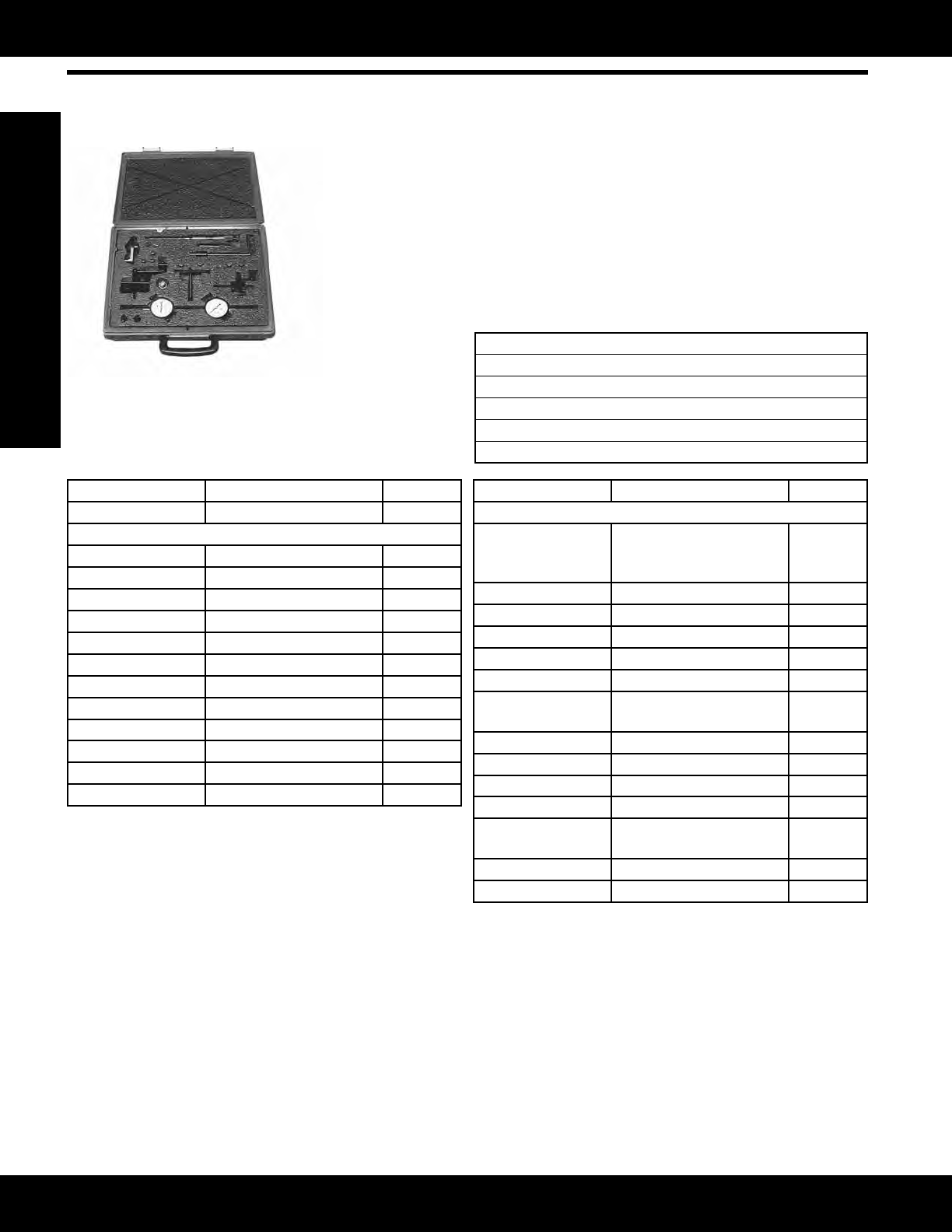

6V-6070 Tool Group
Model: Cat
®
Engines
Warranty: Six Months
• Used to check and adjust rack and fuel ratio control link-
age on all engines with New Scroll Fuel Systems (NSFS)
— new procedure now used to check and adjust rack on
these engines
• Replaces discontinued 6V-4095 Group and discontinued
6V-4096Group;alltoolsindiscontinuedgroups,except
6V-2128 Compressor (which was discontinued), are still
availableforpartsservice
Reference
SEHS8024, Special Instruction
Included in Group
Arm
Arm (Part of 6V-2014) (2)
Form SEHS8024
Form NEEG2119 (Label)
Form SEES5641 (Layout Chart)
Part Number Description Qty.
6V-6070 Tool Group --
6V-6070 Tool Group Contains
021-7956 Bolt --
0S-1614 Bolt 2
0S-1615 Bolt
1
2
2A-0762 Bolt --
2P-8264 Socket --
2P-8265 Socket --
5B-5689 Gasket --
5P-4814 Collet As - Clamp 2
6V-2014 Bracket Assembly
2
--
6V-2017 Tool --
6V-2030 Extension
3 4
--
6V-2105 Tool As. - Rack ADJ --
Part Number Description Qty.
6V-6070 Tool Group Contains (Continued)
6V-3072 Case - Plastic, NEEG2574
Group Decal on lid (9U-
7402 Group)
--
6V-3075 Indicator - Dial --
6V-4186 Pin - Fuel Pump Timing --
6V-6104 Block --
6V-6105 Block --
6V-6106 Dial Indicator --
6V-6151 Adapter(Overfueling
Spring Compressor)
--
6V-7941 Compressor Assembly --
6V-7942 Hook --
8H-3128 Bolt - Hex Socket Head 3
8H-9178 Bolt 2
8T-9198 Rack Indicator Bracket
Assembly
--
9S-0229 Contact Point --
9S-8903 Point --
1
Partsservicedseparately.
2
NOTEfor6V-2014,BracketAssembly:AnFT2532Shieldisavailableforthe6V-2014BracketAssembly.Refertotheseparatearticleforspeci-
cations to make the oil shield.
3
UsedforFIETSandAVMwithheavydutycoupling
4
Part of 6V-6042 Indicator Contact Point Group
