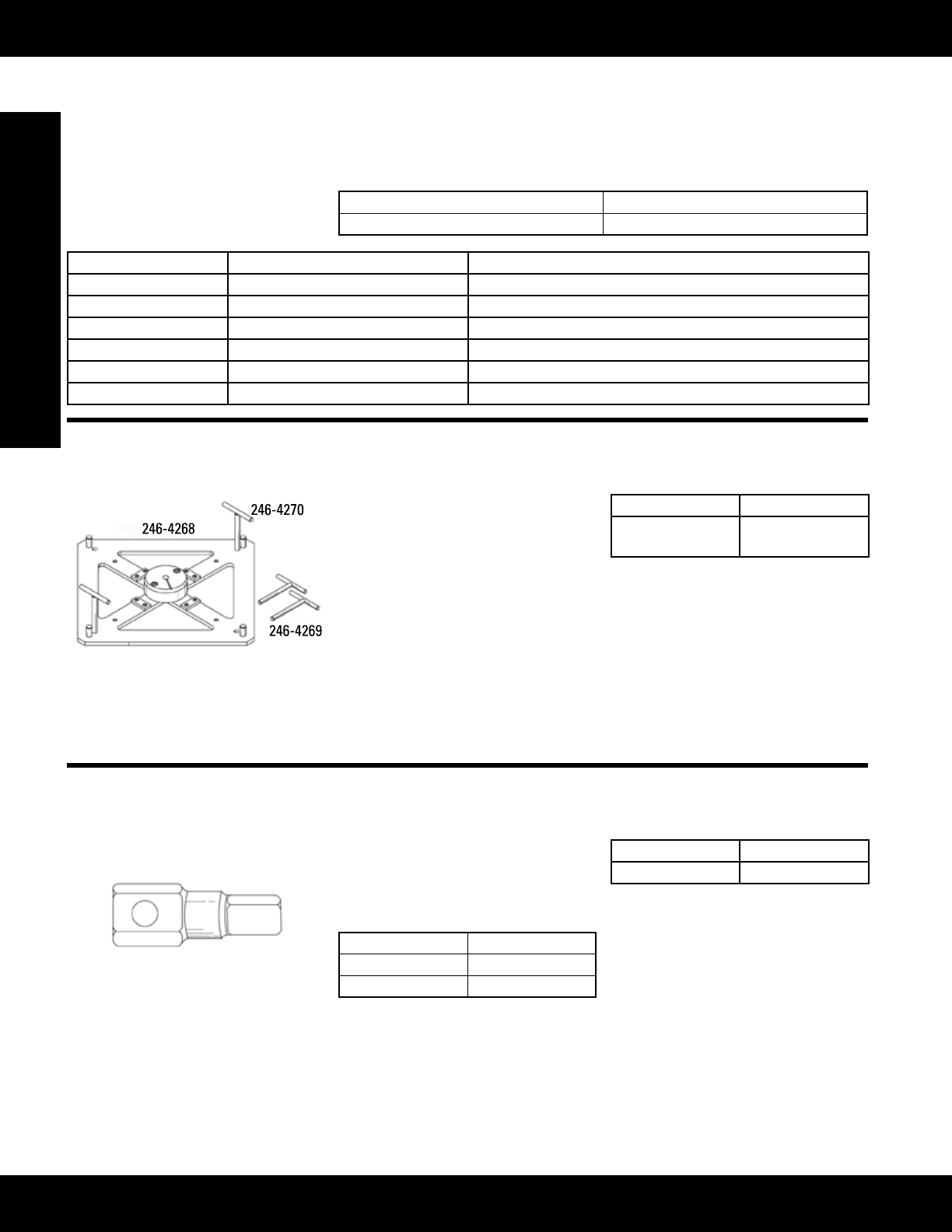

Engine Tools

Lube System

9S-9273 Coupler (Continued)

9S-9274 Plug

Model: D8H, 583H, D9G, DD9G, 594

Warranty: Six Months

• Has 41.3 mm (1.62 in) hex for installing 3/4 inch-14 NPTF threaded end into ser-

vicehosetting

Length 70.6 mm (2.78 in)

Diameter 50.8 mm (2.00 in)

Item Part Number Description

1 9S-9273 Coupler

Not shown 9S-9274 Plug Assembly

2 1P-7919 Nipple, Bulkhead 37 degree Male, 1 1/16 - 12 thd

Not shown 8T-5373 Nipple, Face Seal Male, 1 3/16 - 12 thd

Not shown 9S-9271 Nipple, 3/4 - 14 NPTF thd Male

Not shown 9S-9272 Cap Assembly (for the 3 nipples)

246-4268 Coupler Rework Fixture Group

Model: 3524B Engine

Warranty: Six Months

• Used to disassemble and assemble

3524B Engine coupling group

• Used with two 246-4269 Position-

ing Pin Assembly and two 246-4270

Positioning Pin Assembly (part of

group)

• Allowsreplacementofindividual

parts rather than entire group

• Mounts easily on 1P-2420 Transmis-

sion Repair Stand using four FT0996

Positioning Legs

Reference

RENR2276-02,3524BEngineService

Manual, Disassembly and Assembly

Part Number Description

246-4268 Coupler Rework

Fixture Group

201-2592 Bit

Model: MY2000, C-15, and C-16 Engines

Warranty: Six Months

• Special5/16inchbitusedtoremove

the square socket oil gallery pipe

plugs

• Used with standard 7/16 inch socket

and ratchet

Male hex 7/16 in

Male square 5/16 in

Overalllength 32 mm (1.25 in)

Part Number Description

201-2592 Bit
