3-324

Engine Tools

Pistons, Rings and Connecting Rods

Scissors Type Ring Compressor (Continued)

Engine Bore Compressor

Scissors Type Ring Compressor (Continued)

146.10 mm (5.75 in) 5P-3527

158.80 mm (6.25 in) 5P-3528

Scissors Type Ring Compressor (3126 and 3126B Engines)

110 mm (4.33 in) 173-5529

Scissors Type Ring Compressor (C9.3 Engines)

114.85 mm (4.52 in) 363-4046

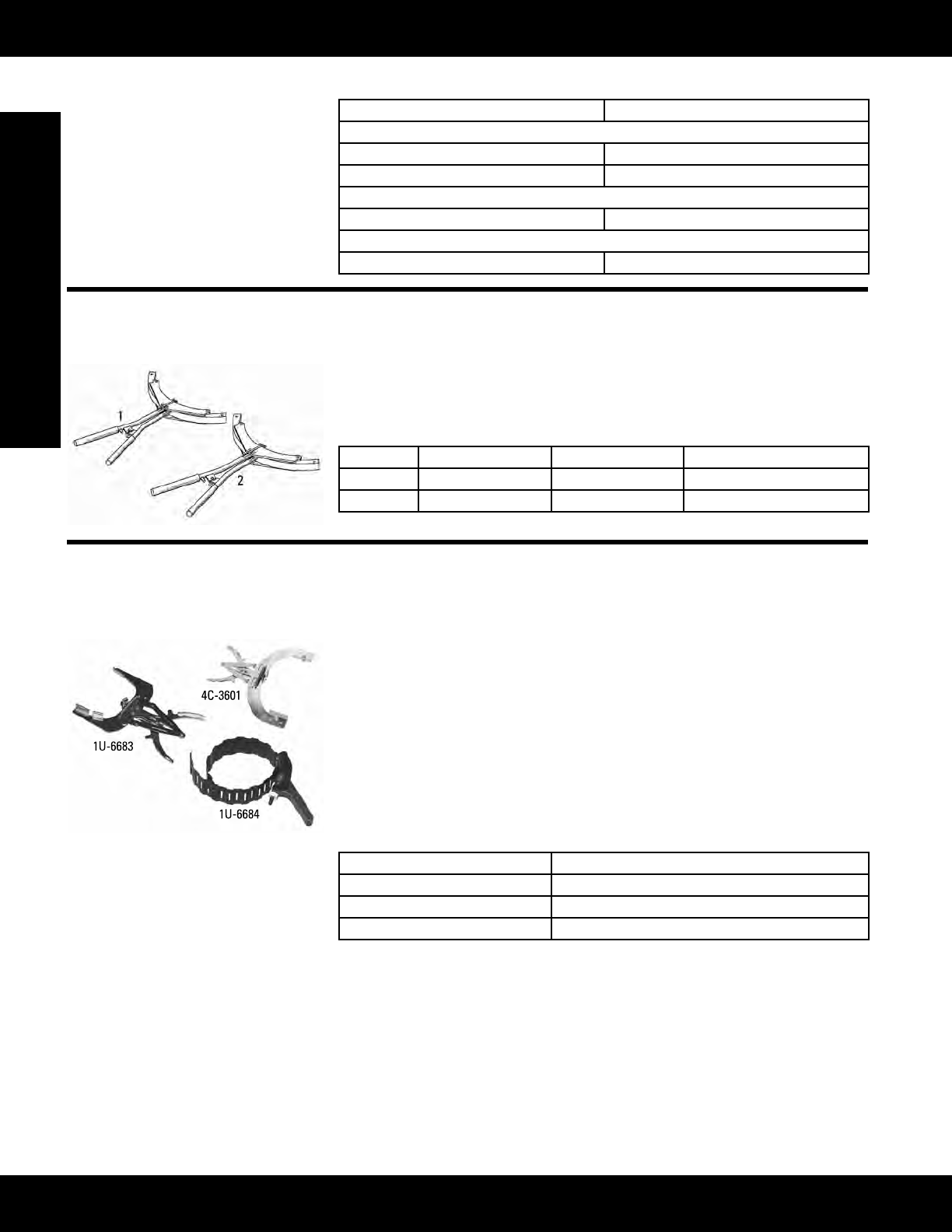

Piston Ring Expansion Pliers

Model: 3600 Engines

Warranty: Six Months

• Usedtoremoveandinstallpistonrings

• Will not damage or deform piston rings or piston

• Designed to the correct piston ring diameter

• Handledesignprovidesleveragetoexpandpistonring

Item Part Number Description Sized For

1 318-3117 Ring Expanders 280 mm (11.0 in) rings

2 318-4874 Ring Expanders 300 mm (11.8 in) rings

1U-6683 Expander

4C-3601 Ring Expander, 1U-6684 Compressor

Model: 3114, 3116, 3176

Warranty: Six Months

• 1U-6683 Expander used to expand piston rings to install them on piston on 3114

and 3116 Engines

• 4C-3601RingExpanderusedtoremoveandinstallpistonringson3176Engine

• 1U-6684 Compressor used to compress piston rings to install piston into cylinder

on 3114, 3116 and 3176

• 1U-6684 Compressor capacity: 76.2 mm (3 in) to 127.0 mm (5 in)

References

SENR3582,SpecicationModule

SENR3583, System Operation Testing and Adjusting

SENR3611, Disassembly and Assembly Manual

SEHS8868, Special Instruction, operation

Part Number Description

1U-6683 Expander

1U-6684 Compressor

4C-3601 Ring Expander
