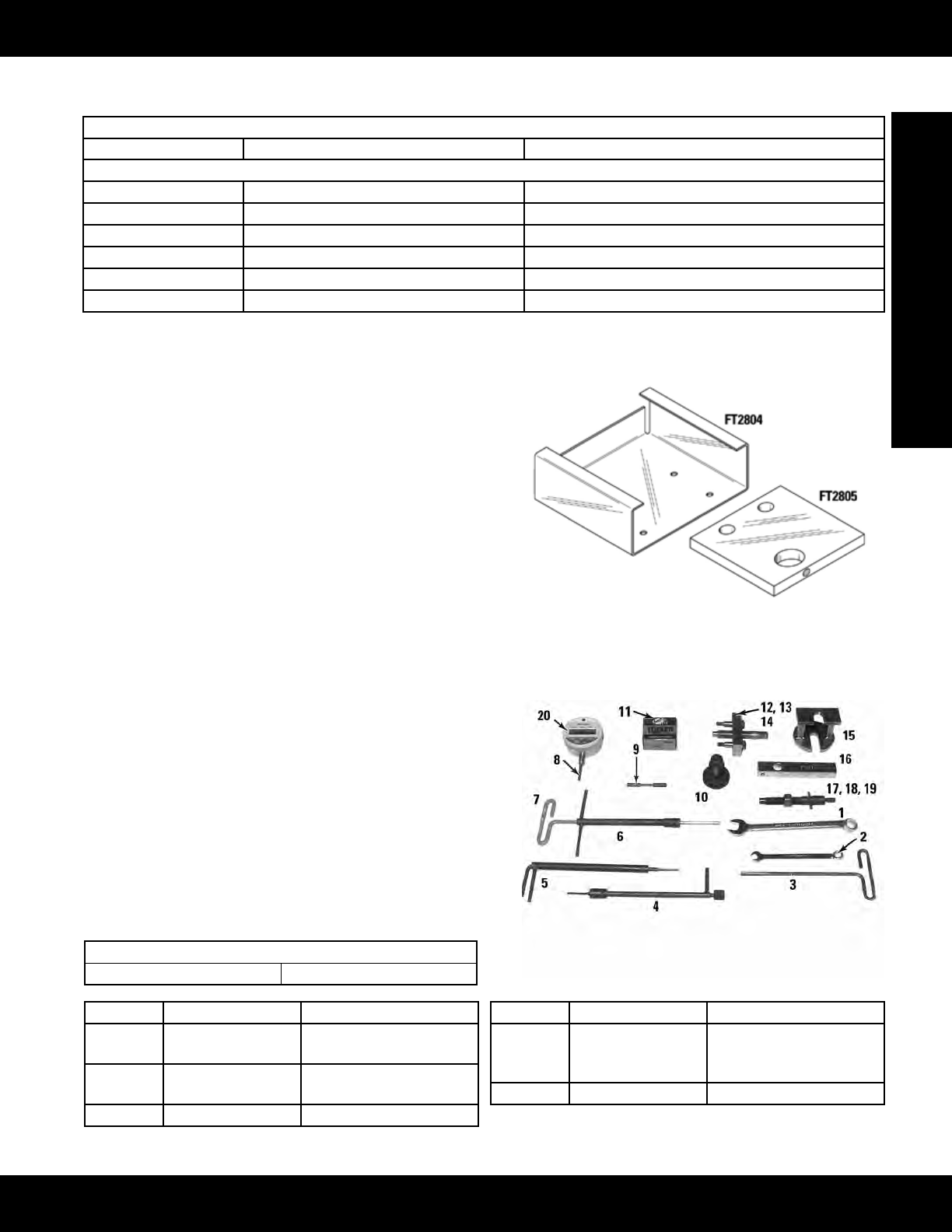

Caterpillar Engine Tools Cat Overhaul 3512 Page 237

Operation and Maintenance Manual
2646783
2646882
2646737
3-237
Engine Tools
Fuel System Test Tools
1U-9088 Governor Disassembly and Assembly Tool Group (Continued)
Discontinued
Service/Repair Parts
Item Part Number Description
Not shown
1
1 6V-7145 Case
-- 1U-7307 GovernorRepairFixture
-- 1U-7637 Foam Insert Set
-- 6V-6106 Dial Indicator
-- 8S-3675 Point - Indicator
-- 1U-7312 Calibration Plate
1
Also not shown: NEEG2650 Decal
FT2804 Bracket and FT2805 Plate
• Usedtohold9U-7401MultitachIIonto1U-7326Governor
Bench
• Usedwith1U-7326GovernorBench
• AllowsMultitachIItoreadgovernorspeed
• Both FT tools are made from SAE 1018 steel
1U-9087 Governor Adjust Tool Group (Not Serviced)
• Usedtocalibrategovernors(sometoolsinthisgroup
werepartofdiscontinued1U-7315GovernorRepairGroup
or9U-6880ThrottleLeverToolGroup)
• Usedwith1U-7326GovernorCalibrationBench
• 1U-7299AdjustingWrench—adjustsgovernoroutput
(load stop) position and fuel ratio control setting on Type V
andlatermodelgovernors(usedwith1U-7300)
• 1U-7431 Adjusting Tool — adjusts low power load stop
settingonTypeVIgovernors(usedwith1U-7300)
• 1U-7316 Calibration Pin Group — used to calibrate Type
Vandlatermodelgovernorsandisdesignedtoavoid
interference with fuel ration control (cannot be used for
on-engine fuel setting adjustment)
Not Shown
NEEG2649 Decal
Item Part Number Description
1 4C-9594 Wrench, 1/2 in (low idle
adjustment)
2 1U-5548 Wrench, 8 mm (high idle
adjustment)
3 5P-4205 Wrench
1
Item Part Number Description
4
2
1U-6673 Wrench - Fuel Ratio Con-
trol Adjusting and Synchro-
nizing
5 1U-6672 Rack Adjusting Wrench
(Continued)
