Engine Tools

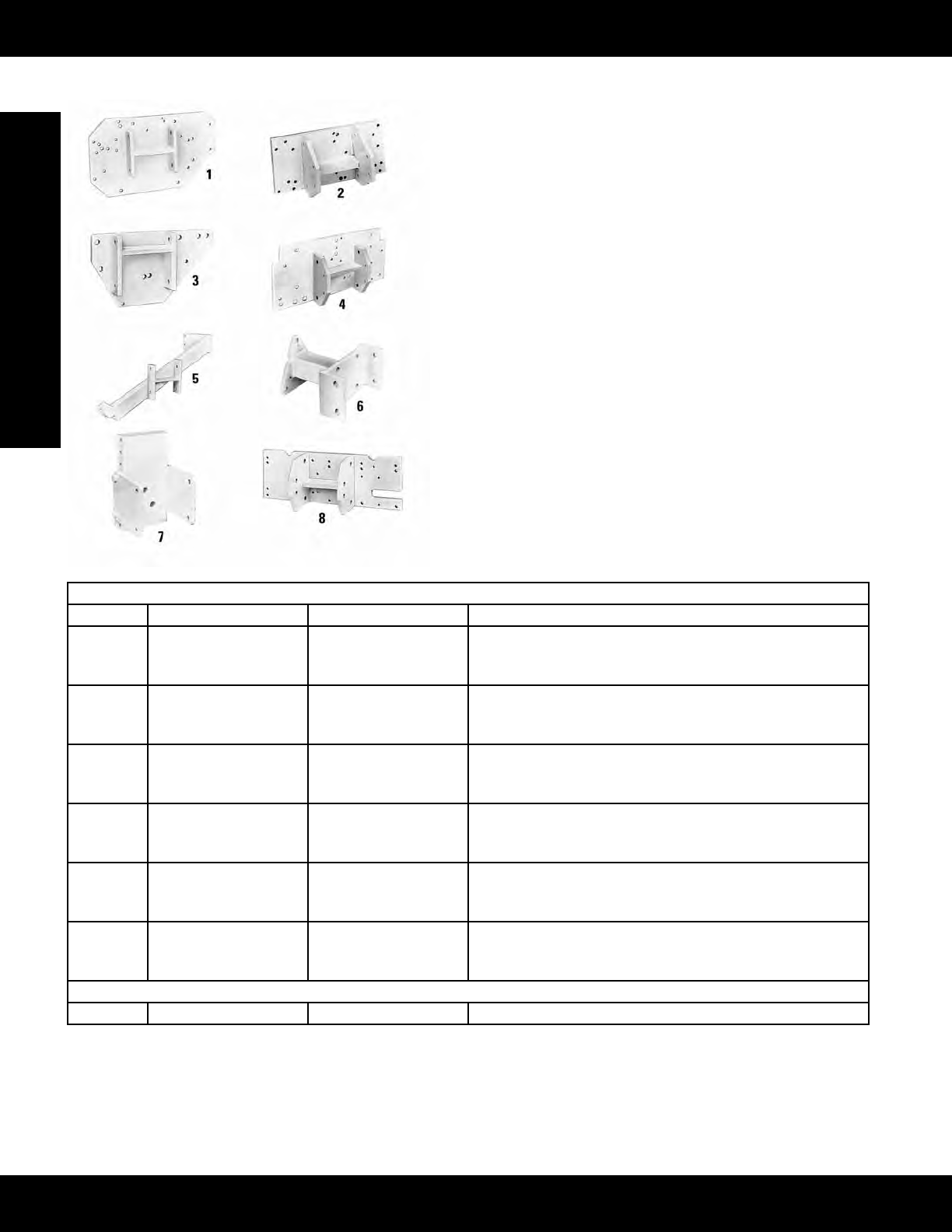

Engine Lifting and Positioning

Adapter Plates Sold Separately

Sold Separately

Item Part Number Description Model Use

1U-7517 Adapter Plate ForInternationalHarvesterengines:DT-466in-line6-cylinder;

DV-550, MV-404, MV-446, V304, V345, V392, 4-152, 4-196, 4-194,

9.0 liter V-8 and the 6.9 L (Ford). Wt., 28.1 kg (62.0 lb)

1U-7510 Adapter Plate For Cummins engines: All NH, NTC and NTE 855 Series in-line

6-cylinder;378SeriesV-6;504,555and903SeriesV-8;KT1150

Series in-line 6-cylinder, L10. Wt., 18.6 kg (41.0 lb)

1U-7513 Adpater Plate For Mack engines: V-8 1000 and 1980 thru current 672 in-line

6-cylinder and 477 Scania series. Note: No. 206629 supersedes

No. 205100. Wt., 14.5 kg (32.0 lb)

1U-5749 Adpater Plate For Cat

engines;Nos.1673,1674,1693,3304,3306and3406in-

line6-cylinder;Nos.1100and3208V-8;No.3408V-8.Wt.,30.8

kg (68.0 lb)

1U-7518 Adapter Plate Allison transmission mounting plate, for use with 1750-A engine

stand. Handles Allison transmission Nos. AT500, MT600, MT

6-speed, VH, VS and V730. Wt., 11.3 kg (25.0 lb)

1U-7509 Adapter Plate ForDetroitengines:53Seriesin-line6-cylinder,6Vand8V;71

Seriesin-line6-cylinder,6V,8Vand12V;92Series6Vand8V;

8.2 liter V-8. Wt., 26.3 kg (58.0 lb)

Not Shown

-- 9U-5161 Adapter Plate For Cat

Engines: 1.1 and 1.7, C11

Mustbeusedwithuniversaladapterplateassembly
