3-382

Engine Tools

3600 Engine Tools

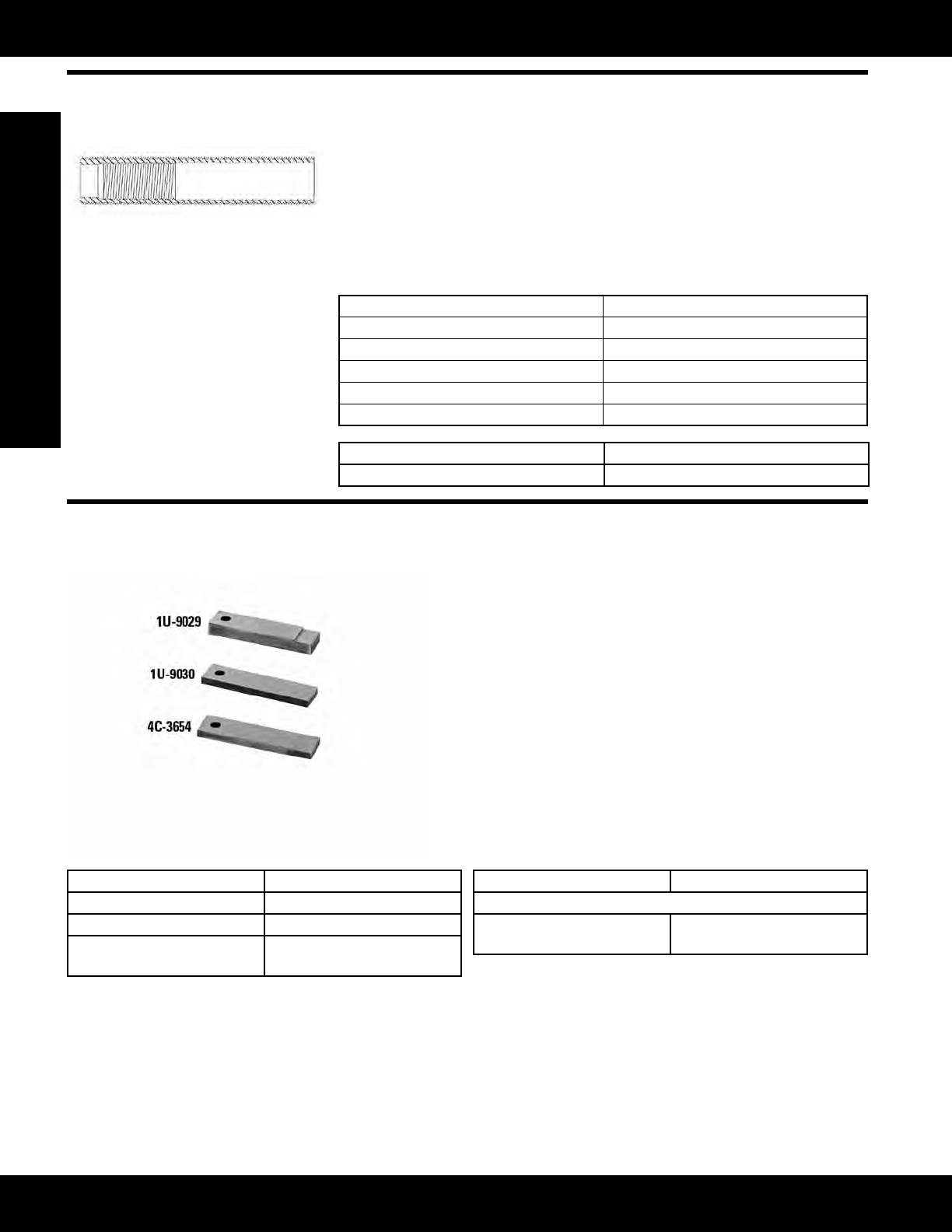

128-5113 Thread Repair Insert

Model: 3600 Engines

Warranty: Six Months

• Replaces discontinued 4C-6409 Thread Repair Insert

• Used to repair stud holes with damaged threads (only one of four holes per head

can be repaired using this insert)

• Install by drilling damaged hole to 23.41 mm (1 59/64 in) and threading hole using

a 2-12 tap

• Threaded repair insert is locked into place with 9S-3265 Retaining Compound

Reference

SEBF8151, Guideline for Reusable Parts

Outside thread 2-12

Inside thread 1 5/8 - 12

Overalllength 270.0 mm (10.6 in)

Drill 4C-6415 Drill

Tap with pilot 4C-6417 Tap

Extension tap 4C-6416 Tap

Part Number Description

128-5113 Thread Repair Insert

Ring Groove Gauges

Model: 3600 Engines

Warranty: Six Months

• Usedtocheckpistonringgrooveweartodeterminereus-

ability of piston

• Simpletouse.Ifthescribelineisvisible,thenthepiston

ringgrooveisgood.Ifthelineisnotvisible,thenthe

piston is nonreusable.

• Three separate gauges (checks all four piston ring

grooves)

• Gauges clearly marked with “top and second ring”, “third

ring”,and“oilring”foreasyidentication

• Made from heat treated steel for better wear resistance

• Size (L x W): 75 x 19 mm (3.0 x 0.8 in)

Part Number Description

1U-9029 RingGrooveGauge(oilring)

1U-9030 RingGrooveGauge(thirdring)

4C-3654 RingGrooveGauge(topand

second ring)

Part Number Description

Not shown

197-3710 RingGrooveGauge(topand

second ring), 3618 only
