3-65

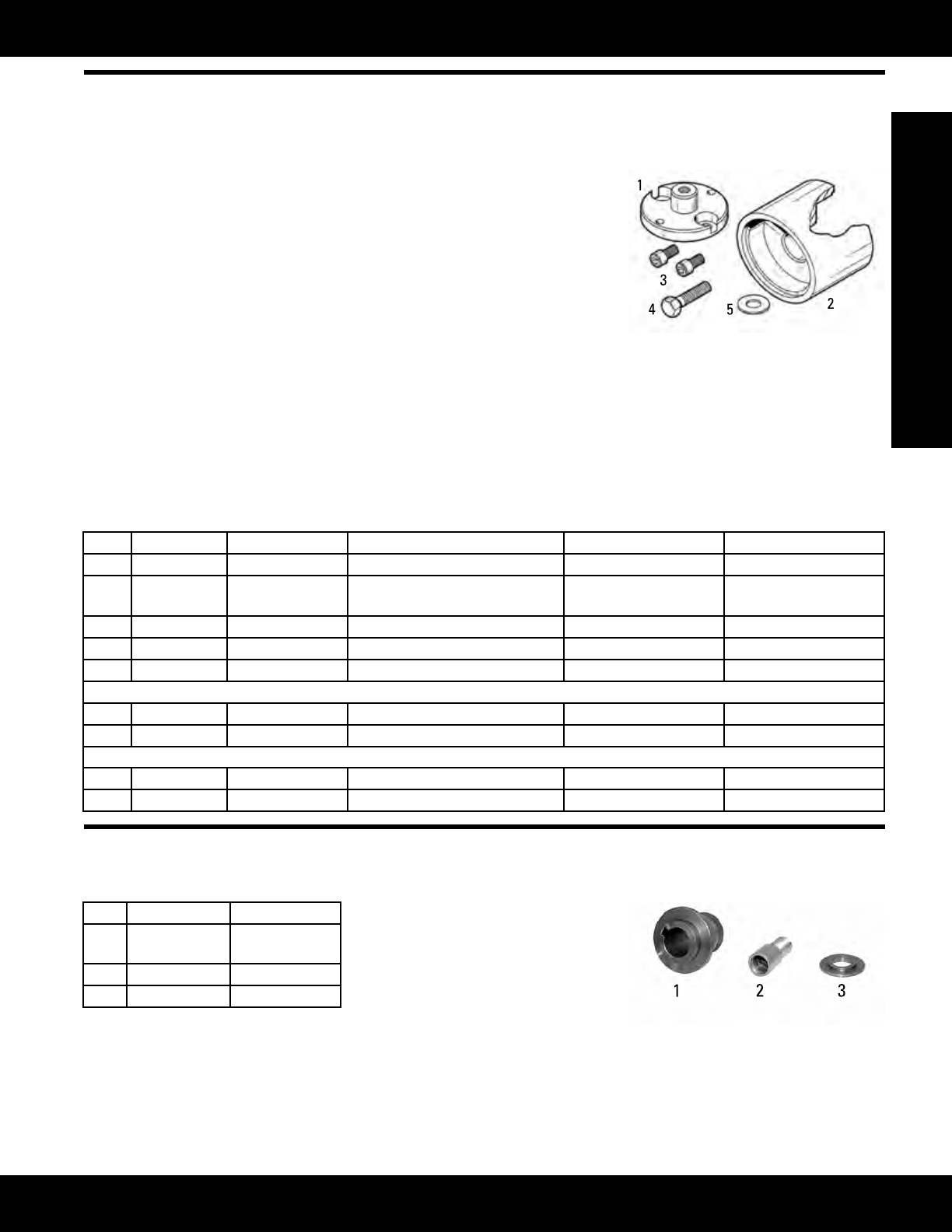

Engine Tools

Crankshaft, Main Bearings and Flywheel

4C-6375 Locator

127-1591 Rear Oil Seal Installer

Model: 3046 Diesel Engine

Warranty: Six Months

4C-6375

• Used to install crankshaft rear seal (assures seal lip will bear uniformly around

crankshaft)

• Preventssealdamageduringinstallation

127-1591

• Reversible

• Used to install 103-2835 Rear Crankshaft Oil Seal Assembly and 117-5015 Oil Seal

Assembly (when installer bottoms against crankshaft, seal assembly, including

wearsleeve,isinstalledincorrectlocation)

• Used with 4C-6375 Locator, 9U-6172 Socket Head Screw (2), 8T-0375 Bolt, and

5P-8247 Washer

• Installerequallydistributesinstallationpressureonedgeofseal(preventsdam-

age to edge of seal assembly during assembly, resulting in longer seal life)

• Knurledoutsidediameterprovidesbettergripformechanicduringoilseal

installation

• To use: bolt locator onto crankshaft, put seal assembly in installer, push seal

onto crankshaft until installer bottoms out

Reference

SENR6458, Special Instruction, Disassembly and Assembly of 3046 Engine

Item Part Number Description Size Small Seal Diameter Large Seal Diameter

1 4C-6375 Locator -- -- --

2 127-1591 Rear Oil Seal

Installer

-- 96 mm (3.78 in) 98.06 mm (3.861 in)

3 9U-6172 Bolt M12 x 1.25 x 20 mm long (2) -- --

4 6V-3303 Bolt M16 x 2 x 60 mm long -- --

5 4B-5275 Washer 15.875 mm (0.625 in) -- --

Used With 127-1591:

1 4C-6375 Locator -- -- --

3 9U-6172 Bolt M12 x 1.25 x 20 mm long (2) -- --

Used With 127-1591 (not shown)

-- 8T-0375 Bolt -- -- --

-- 5P-8247 Hard Washer -- -- --

Seal Installer Tools

Model: 3046 Engine

Warranty: Six Months

• Used to install crankshafts front

sealwithoutremovingfrontcover

• Makes installation easier, faster,

andpreventsdamagetoseal

• Ensures uniform seal contact

around crankshaft — ultimately

provideslongerseallife

Reference

SENR6458, Special Instruction, Disas-

sembly and Assembly of 3046 Engine

Item Part Number Description

1 4C-6378 Seal Installer

Sleeve

2 4C-6376 Installer Stud

3 4C-6377 Installer Washer
