Caterpillar Engine Tools Cat Overhaul 3512 Page 191

Operation and Maintenance Manual
2593579
2593598
3-191
Engine Tools
Engine Test Tools

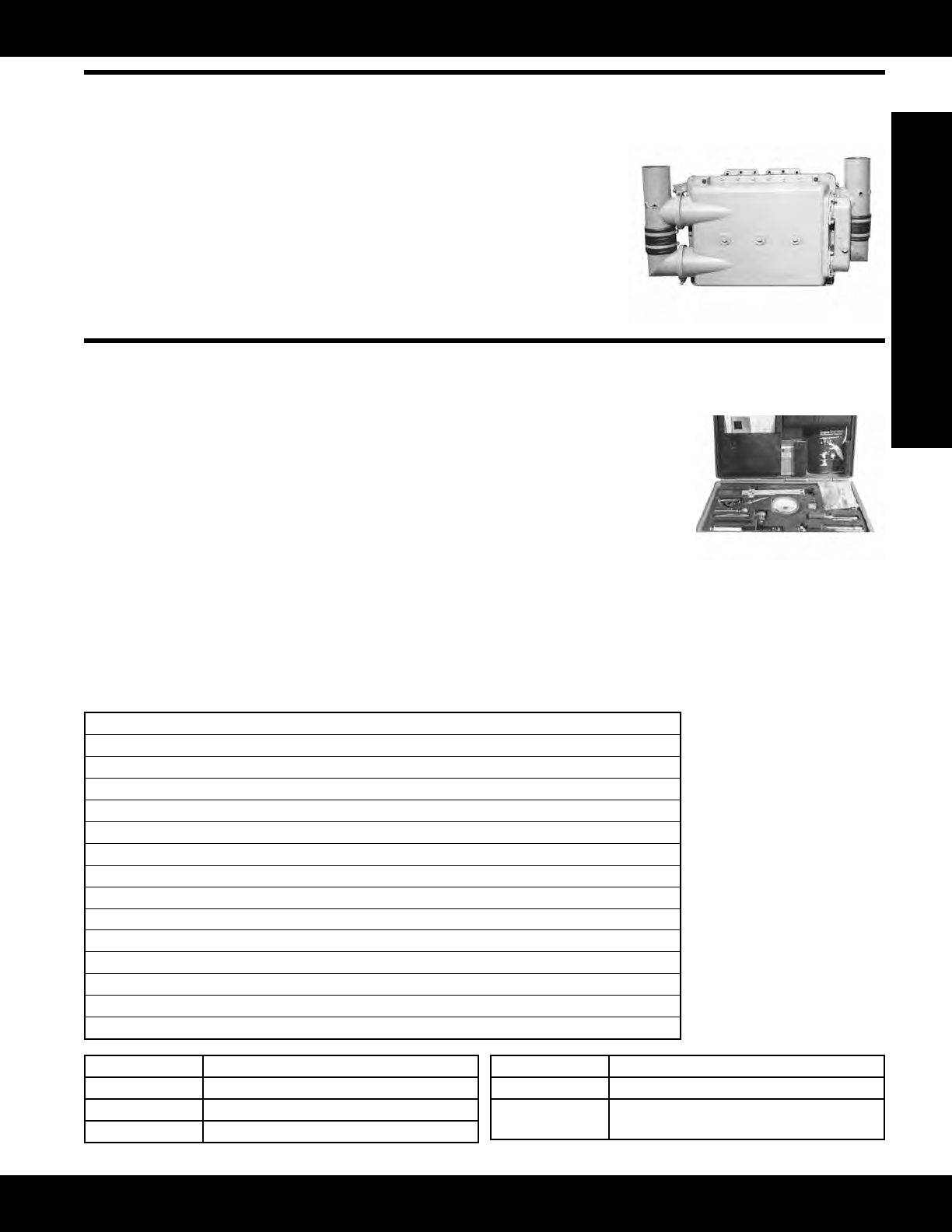

FT1438 Dynamometer Testing Aftercooler
Model: 3176, 3208, 3304B, 3306B, 3406B
Warranty: None
• Air-to-water aftercooler used for dyno testing air-to-air aftercooled engines in
621,623,627,631,637,641,650,651,657,660and666Tractor-Scrapers;772and
773Trucks;and980WheelLoaders
• Designed to maintain 65.56° C (150° F) maximum inlet manifold temperature for
engines up to 1000 Hp
• Former FT1198 Test Aftercooler, which was limited to 450 Hp, was discontinued
4C-3502 Engine Repair Indicator Kit
Model:AllEarthmovingMachines
Warranty: Six Months
• Designed for dealer Product Support Salesmen
• Consolidatesmanynon-technicalengineevaluationservicetoolsintoconvenient,easy-
to-carry-and-usekit;includessimpleservicetools,whichmeasurecrankcasepressure,
checkcoolantconditionerandallowforlterinspection
• Allows more accurate check of general engine condition than possible with casual walk-
around inspection
• WithEngineOverhaulEstimator(orderedseparately),allowsqualiedpersonneltopredict
possiblerepairoptionsandtorecommendimprovedcustomermaintenancepractices
Consists of 3 parts:
• Non-technicalengineevaluationservicetools(seeconsistbelow)andorderformfor
EngineOverhaulEstimator
• Engineevaluationworksheetwhichincludesguidelinesforwalk-aroundinspectionof
machines engine and cooling system
• Literature discussing proper engine maintenance practices
Reference
SEHS9037, Special Instruction
Kit also Includes:
Screwdriver(atblade)
Water Bottle
SEHS9037 Use of the 4C-3502 Engine Repair Indicator Kit
PEEP7234 Oil Change Labels (English)
PEEP8211EngineEvaluationWorksheet
SEBD0717 Diesel Fuel and Your Engine
SEBD0518 Know Your Cooling System
PEDP6101 Repair Before Failure Testimonial
PEDP7101ManagingPreventiveMaintenanceBeforeFailure
SEBU5596IdenticationNumberLocationGuide
SEBU6250 Caterpillar’s Machine Lubricant Recommendations
PEHP9013 Air Filter Indicator Facts Sheet
PEDP7105 Scheduling Oil Sampling
SEBD0640 Oil and Your Engine
Part Number Description
8T-2844 Temperature Recorder Group
4C-9301 Coolant Test Kit
185-3630 Filter Strap Wrench Assm.
1
Part Number Description
239-6825 Ratchet(1/2inDrive)
9S-1732 Extension -- 127 mm (5.0 in) Long (1/2 in
Drive)
(Continued)
