3-379

Engine Tools

3600 Engine Tools

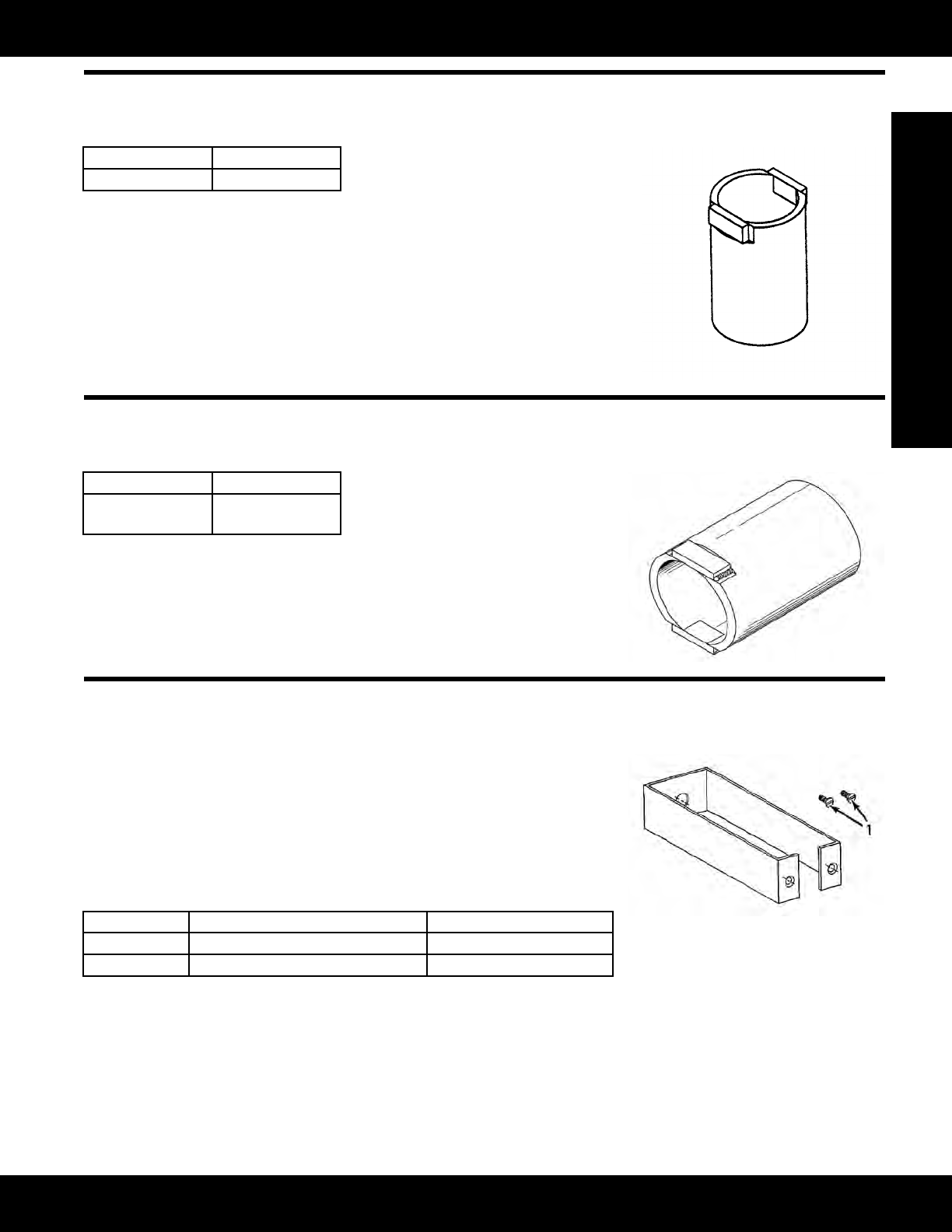

4C-6987 Socket

Model: All 3600 Engines except 3618

Warranty: Six Months

• Usedforremovalandinstallationof

cylinder head nuts

• Savestimebyinstallingnutspriorto

useoftensionersandremovingnuts

after releasing torque

• Used with hydraulic stud tensioners

of 4C-5858 Tool Group

• Maximum torque: 340 N·m (250 ft-lb)

Part Number Description

4C-6987 Socket

184-3131 Cylinder Head Stud Socket Assembly

Model: 3618 Engines

Warranty: Six Months

• Usedtoquicklyremoveandinstall

cylinder head nuts after tensioning

is released

• Also known as a nut spinner

Part Number Description

184-3131 Cylinder Head Stud

Socket Assembly

4C-9839 Safety Retainer Group

Model: 3600 Engines

Warranty: Six Months

• Used for disassembly and assembly of cylinder head assembly

• Steel strap safety retainer for pulling rod in case pulling rod accidentally breaks

• Fits around 316-1493 Hydraulic Puller Assembly (fastened to bottom with 2

screws)

• If the pulling rod accidentally breaks and the retainer becomes deformed, the

retainer should be replaced.

• Dimensions (thickness x width x length): 3.175 x 44.45 x 290 mm ( 1/8 x 1 3/4 x 11.4

in) long (length allows full stroke of 316-1493 Puller Assembly)

Item Part Number Description

1 2M-5139 Screw (2)

-- 4C-9839 Safety Retainer Group
