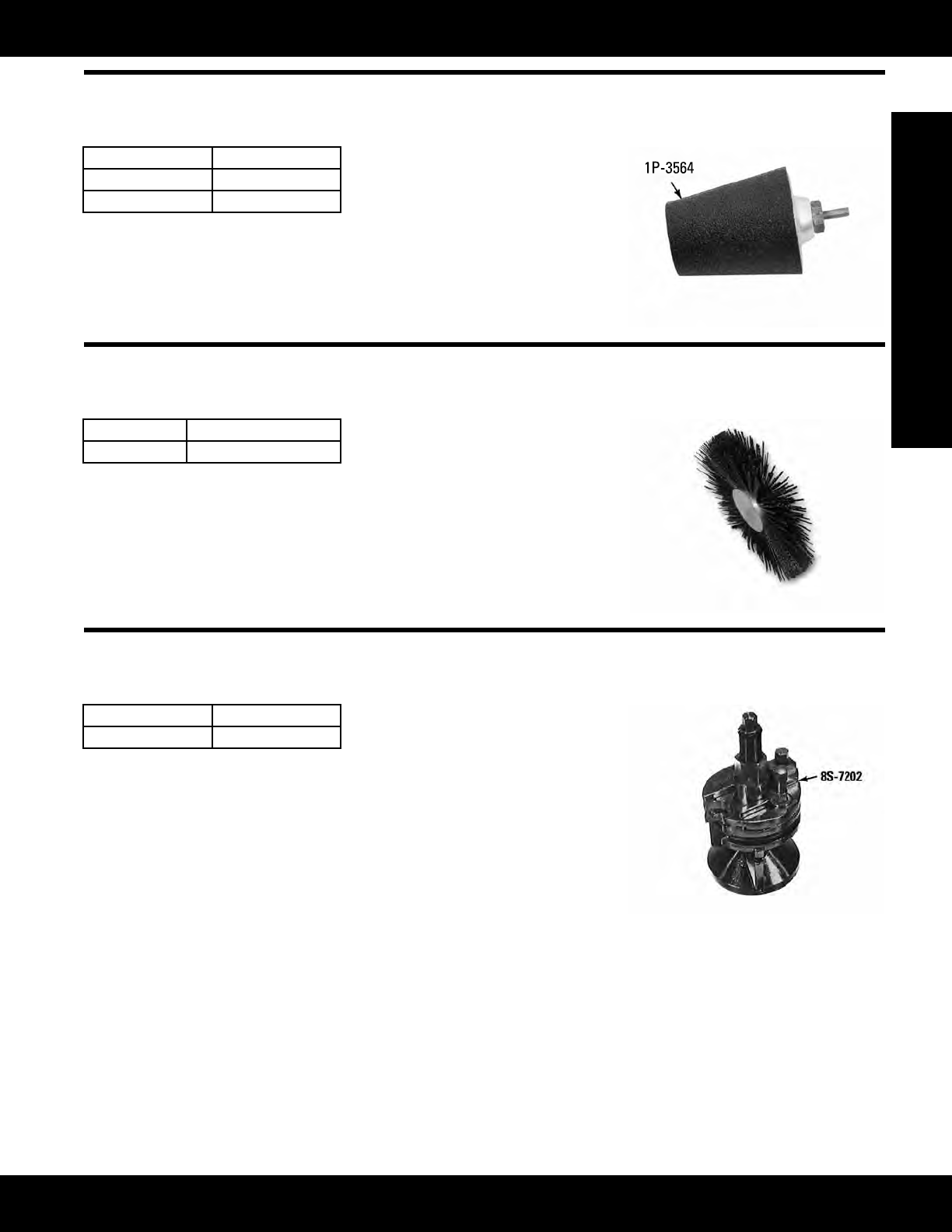

3-79

Engine Tools

Cylinder Block and Liners

1P-3565 Chamfering Group

Model: 1100, 3100

Warranty: Six Months

• Used to break sharp corner at bot-

tom of cylinder bore after honing

cylinder bores on 1100 and 3100

Series Engines

Part Number Description

1P-3565 Chamfering Group

1P-3564 AbrasiveCone(6)

365-1197 Bore Brush

Model Usage: 3500 Engines

Warranty: Six Months

• Used to aid in chamfering the

cylinder block liner bores on 3500

engines

• Shaft mounted 241.3 mm (9.5 in) O.D.

brush

• Used with a suitable drill or honing

machine

• Removescombustionresidueand

cleans liner bore

Part Number Description

365-1197 Bore Bush

8S-2269 Ridge Reamer

Model: 1100, 3100, 3204

Warranty: Six Months

• Usedtoremovecarbonbuildupin

cylinder bores

• ServicePart:8S-7202CutterBit(qty.

Part Number Description

8S-2269 Ridge Reamer
