Caterpillar Engine Tools Cat Overhaul 3512 Page 24

Operation and Maintenance Manual
2587042
2587059
3-24
Engine Tools
Cooling System
Disassembly and Assembly Tooling for 200 Rockford Fan Clutch (Continued)
Model: Multiple Engine Models
Warranty: None
Item Part Number Description Material
1 FT2814 BearingRemover SAE 4140 steel
2 FT2815 Bearing Installer SAE 4140 steel
3 FT2816 Bearing Installer SAE 4140 steel
4 FT2817 BearingRemover SAE 4140 steel
5 FT2818 Installation Ring
Plate
SAE 4140 steel
6 FT2819 Fan Hub and Shaft
AssemblyRemoval
Plate
SAE 4140 steel
7 FT2820 Bearing and Seal
RemovalandInstal-
lation Plate
SAE 4140 steel
8 FT2821 Clutch Body Hold
Fixture Assembly
SAE 1020 steel
9 FT2822 Fan Mounting
HubRemovaland
Installation Fixture
Assembly
SAE 1020 steel

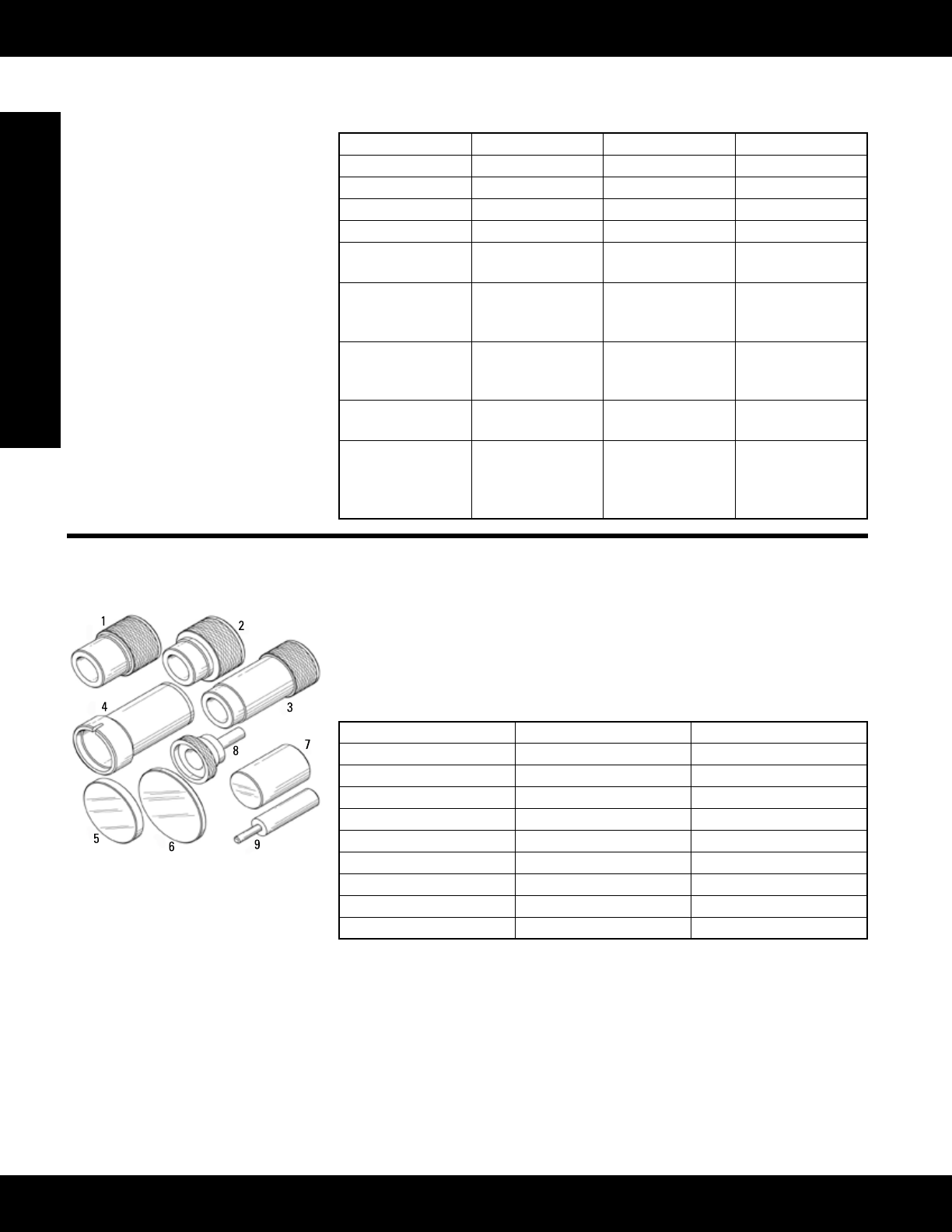

Tooling for Variable Speed Fan Clutch on Off-Highway Trucks
Model: Multiple Engine Models
Warranty: None
• Usedtodisassembleandassemblevariablespeedfanclutchon784C,785C,
785CHAA, 789C, and 793C Off-Highway Trucks
• Ensures proper positioning and installation of clutch parts
• Material (all parts): SAE 4140 steel
Reference
RENR2634,ServiceManual,VariableSpeedFanClutch
Item Part Number Description
1 FT2749 Bearing Installer
2 FT2750 Bearing Installer
3 FT2751 BearingRemover
4 FT2752 Seal Installer Assembly
5 FT2753 Bearing Installer
6 FT2754 Bearing Installer
7 FT2755 EndCapRemover
8 FT2756 Sensor Installer
9 FT2757 Sensor Installer
