Caterpillar Engine Tools Cat Overhaul 3512 Page 32

Operation and Maintenance Manual
2587377
2587398
2587417
3-32
Engine Tools
Cooling System

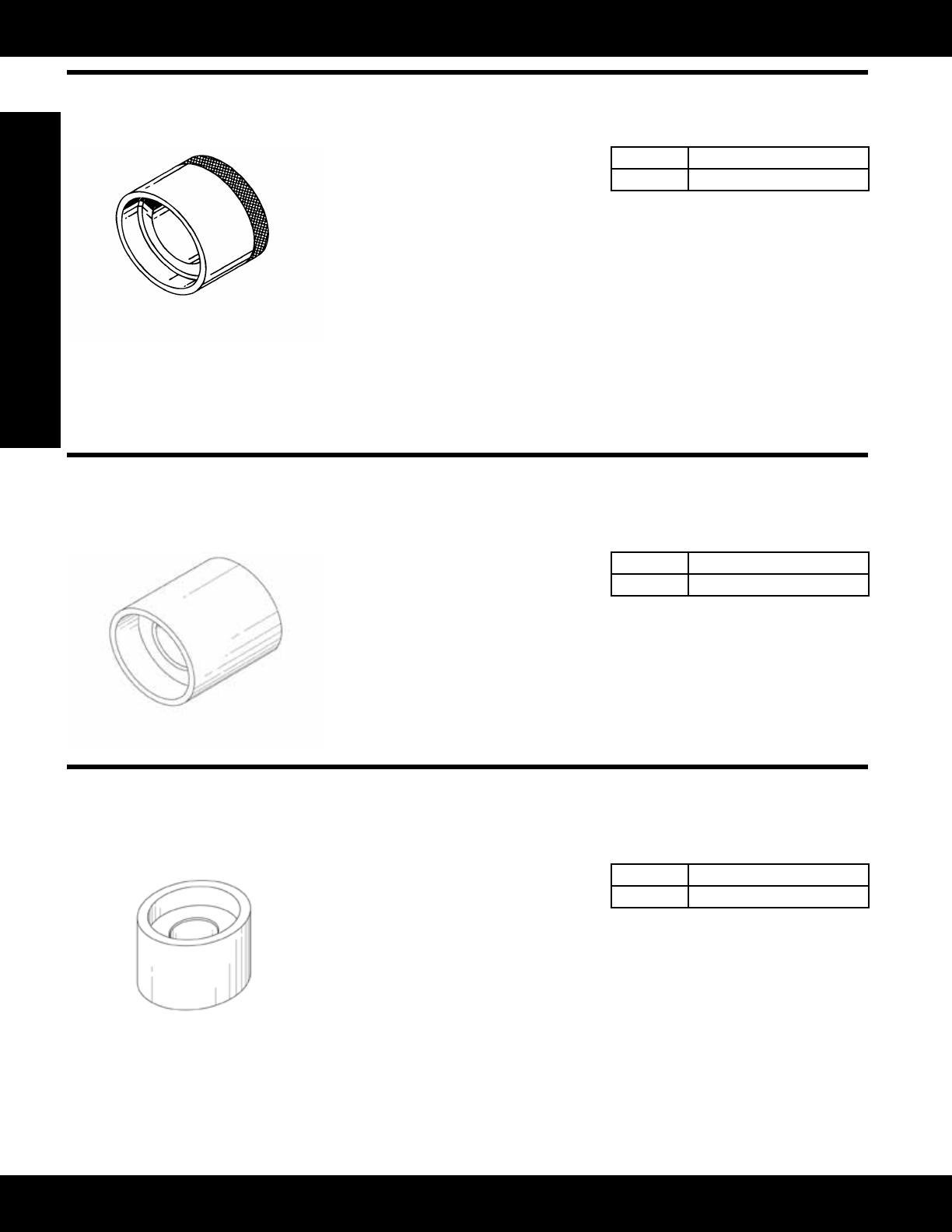

135-7629 Water Pump Seal Installer
Model: 3406 Engines
Warranty: Six Months
• Used to correctly and quickly install
the 118-9163 Seal Group in water
pumps
• Replaces discontinued 2W-9102
Installation Tool (Water Pump Seal)
and 125-9622 Seal Installer (Water
Pump)
• Sealtsintocounterboreofseal
installer
• Sealinstallerslipsoverpumpshaft
(seal is installed using hand force)
• Overalllength:22.4mm(0.88in)
• Diameter: 31.75 mm (1.25 in)
Reference
SEHS8449, Special Instruction, Installa-
tion of Water Pump Seal Group
Part No. Description
135-7629 Water Pump Seal Installer
323-3526 Seal Installer
Essential Tool
Model: C9 Marine Engine, C9 Petroleum Engine
Warranty: Six Months
• Used to install 200-3052 Seal Group
in water pump
• Sealtsintocounterboreofseal
installer and then uses pump shaft
as a guide
• Correctly installs seal without dam-
age
• Durable, steel construction
Reference
RENR8633, C9 Petroleum Disassembly
and Assembly
Part No. Description
323-3526 Seal Installer
325-5756 Seal Installer
Essential Tool
Model: C15 and C18 Engines for Cat
®
Built Machines and On-Highway use
Warranty: Six Months
• Used to install 276-4756 Seal Group
in water pump
• Sealtsintocounterboreofseal
installer and then uses pump shaft
as guide
• Correctly installs seals without
damage
• Durable, steel construction
• Black oxide coating for corrosion
resistance
Reference
RENR9706, C15 On-Highway Engines
Part No. Description
325-5756 Seal Installer
