Caterpillar Engine Tools Cat Overhaul 3512 Page 95

Operation and Maintenance Manual
2589802
2589822
3-95
Engine Tools
Cylinder Block and Liners

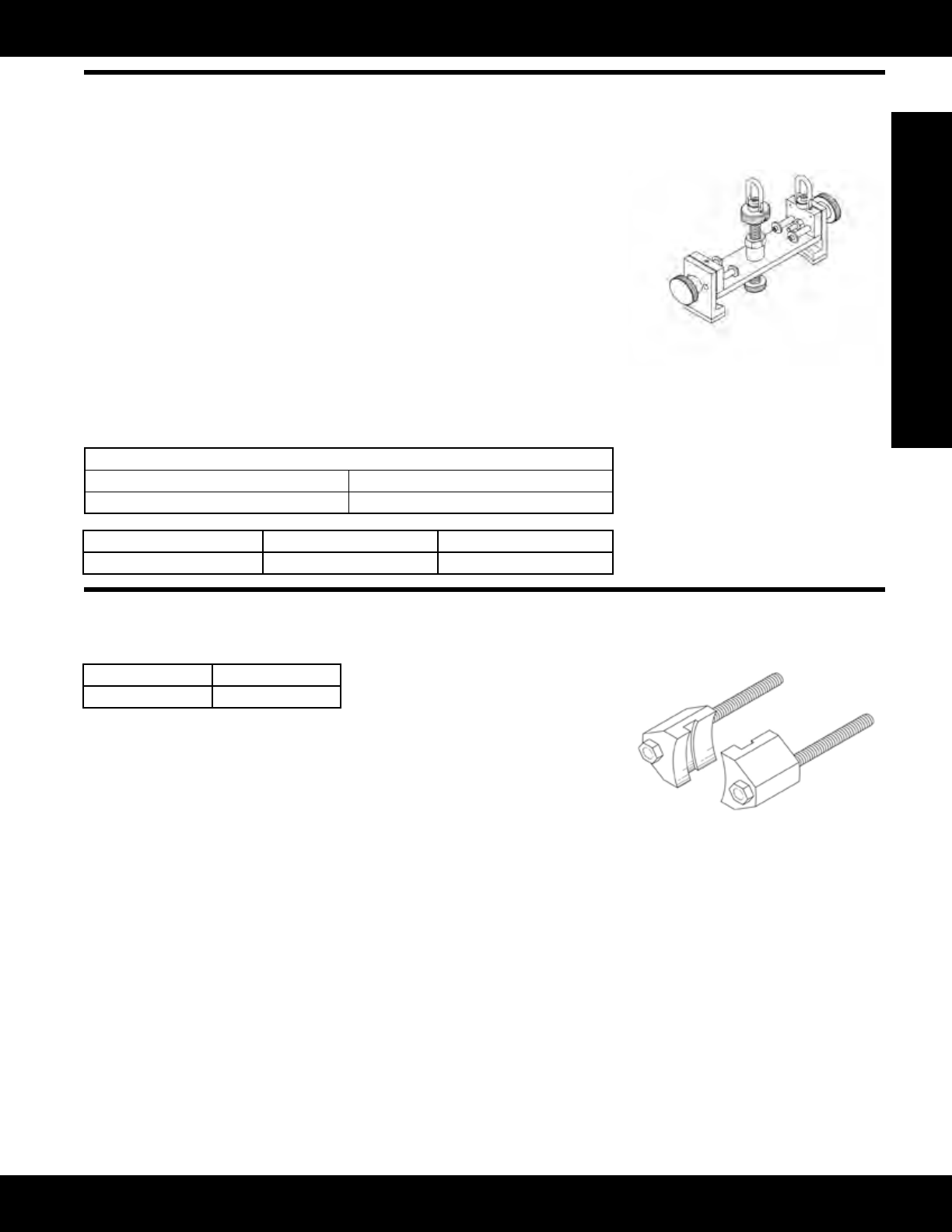

322-3564 Puller Group
Essential Tool
Model: C175 Engines
Warranty: Six Months
European Union compliant, CE marked
• Usedtoremoveandinstallcylinderliner,piston,andconnectingrodasanas-
sembly
• Veryusefulwhenusedforin-frameoverhaulsbecauseridgereamingisnot
required (eliminates the dirt and grit generated by reaming)
• Pullergroupshouldbeusedwith328-5926SpacerPlate(providesclearance
between cylinder liner lip and head to allow installation of puller group)
• End blocks lock onto cylinder liner lip to secure piston pack to puller group
• Centerliftpinassemblythreadsintopistontopreventitfromdroppingoutof
cylinder liner
• Dualliftingeyesallowstraightorangledliftingofpistonpackforeasierremoval
and installation on engine block
References
RENR7466, C175 Disassembly and Assembly Manual
NEHS1074, Tool Operating Manual, 322-3564 Cylinder Pack Puller
ServiceableParts
Part Number Description
395-0090 Set Knobs (2)
Part Number Description Working Load Limit
322-3564 Puller Group 57 kg (125 lb)
328-5926 Spacer
Model: C175 Engines
Warranty: Six Months
• Used to position and hold cylinder
liner35mm(1.4in)abovesurface
of cylinder block during C175 Piston
Packservice
• Used with 290-8087 Puller Group,
288-9171 Bridge, and 322-3564 Puller
Group
• Supports cylinder liner in a raised
position while other tooling is re-
movedandinstalled
• Cylinder liner clamps are made from
high molecular weight plastic to
protect sealing surface of cylinder
liner
• Steel bolts thread into existing holes
in cylinder block to secure tooling
References
RENR7466, C175-16 Generator Set Engine
KENR6052, C175-16 and C175-20 Engines
for Caterpillar Built Machines
Part Number Description
328-5926 Spacer
