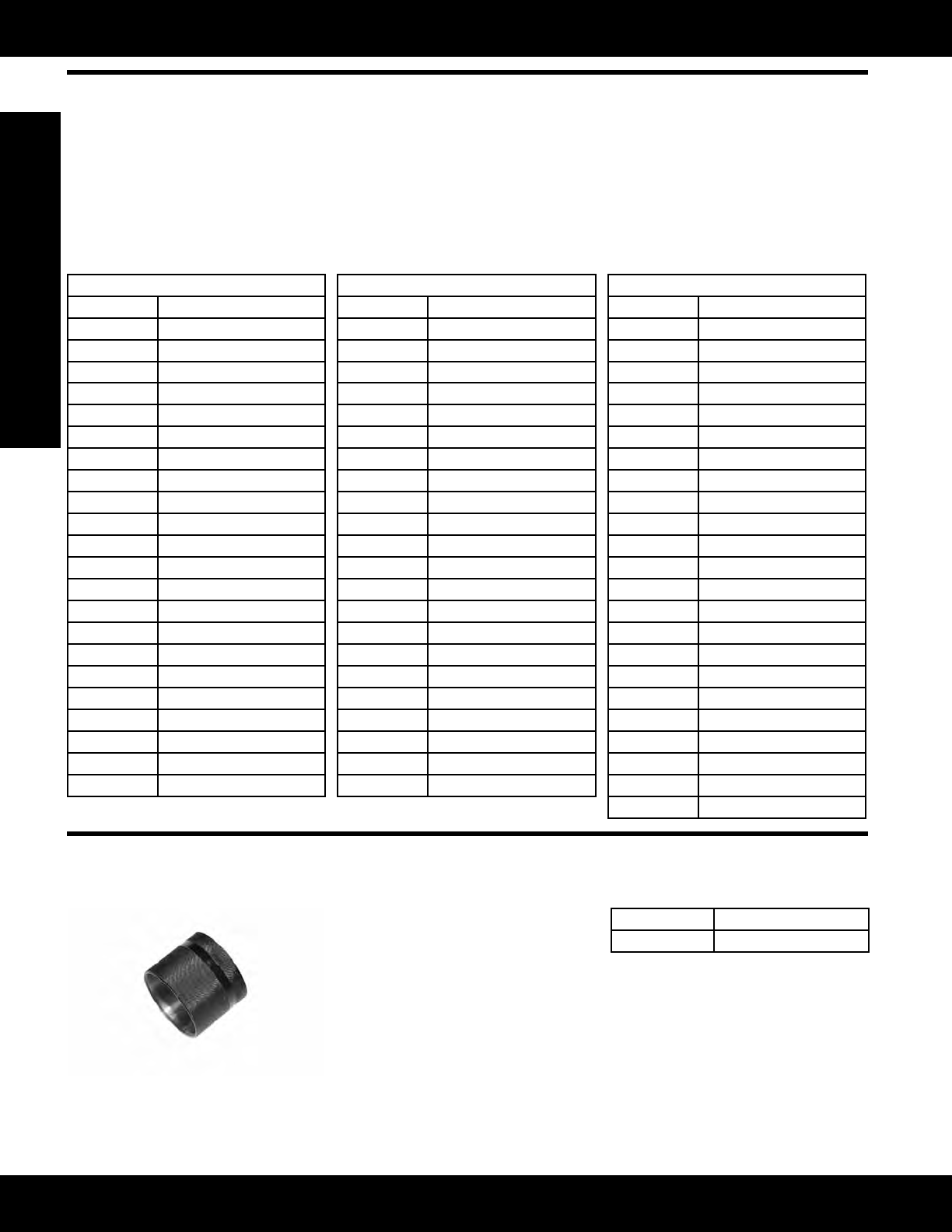

Caterpillar Engine Tools Cat Overhaul 3512 Page 232

Operation and Maintenance Manual
2594614
2594691
3-232
Engine Tools
Fuel System Test Tools
1U-6661 Tester
Discontinued — Service/Repair Parts Available
References
SEHS8867, Using the 1U-6661 Pop Tester
SEHS8858, Using the 6V-4022 Injector Tester to Test 1.1 L Fuel Injectors
SEHS8922,Installationof1U-6667ConversionGroup
SEHS8884,UnitInjectorTestSpecicationsfor1.1LEngines,1.7LEnginesand3500FamilyEngines
NEEG2565, Decals for Pop Tester
ServiceMagazine,June6,1994,pages8-9
1U-6661 Tester Service/Repair Parts
Part Number Description
4C-3407 Spring Ret
4C-3408 Cover
4C-3411 Panel
4C-3413 BackCover
4C-3414 Screw
4C-3415 Screw
4C-3417 Knob
4C-3420 Torsion Bar Assembly
4C-3422 Vinyl Grip
4C-3423 NeedleValve
4C-3424 ValveMeetingGroup
4C-3425 Back Panel
4C-3426 Stopper
4C-3430 PivotLink
4C-3431 PumpLever
4C-3432 ClevisPin
4C-3433 Shaft Top
4C-3434 LowerPivot
4C-3435 Spring
4C-3437 Shaft
4C-3438 ClevisPin
4C-3439 Spring
1U-6661 Tester Service/Repair Parts
Part Number Description
4C-3440 Connector
4C-3441 Spacer Ring
4C-3442 Nylon Bearing
4C-3443 Bushing
4C-3444 Nylon Bearing
4C-3445 SwivelStop
4C-3446 Filter Stem
4C-3447 Brass Insert
4C-3448 Connector
4C-3449 Pipe Tee
4C-3450 Pipe Elbow
4C-3451 CheckValve
4C-3452 Pipe Elbow
4C-3453 Connector
4C-3454 PrimingValve
4C-3455 Connector
4C-3456 ValveCheck
4C-3457 Pipe Nipple
4C-3458 Pipe Connect
4C-3459 Line Return
4C-3460 Pipe Elbow
4C-3461 Pipe Elbow
1U-6661 Tester Service/Repair Parts
Part Number Description
4C-3462 Hose Assembly
4C-3463 Swivel
4C-3464 Pipe Elbow
4C-3465 Line
4C-3466 Pipe Connector
4C-3467 Line Gauge
4C-3468 Insert
4C-3469 Washer
4C-3470 Squeeze Bulb
4C-3471 Lines Group
4C-3474 Cap
4C-3475 Bushing
4C-3476 Primary Pump
4C-3477 Ring
4C-3478 O-ring
4C-3479 Piston
4C-3482 Sleeve
4C-3483 Pad
4C-3485 O-ring Seal
4C-3487 Cylinder
4C-3658 Col Spring
4C-9674 Screw
1U-6661 Tester
6V-4172 Injector Sleeve
Model: D11N, 3508, 3512, 3516, 777B, 785, 789, 3500
Warranty: Six Months
• Usedtocoverfuelportswhen
cleaning injectors on D11N. 777B,
785, 789, and 3500 Series Engines
Part Number Description
6V-4172 InjectorSleeve
