Caterpillar Engine Tools Cat Overhaul 3512 Page 136

Operation and Maintenance Manual
2591570
2591589
2591611
3-136
Engine Tools
Cylinder Head, Valves and Cam Followers

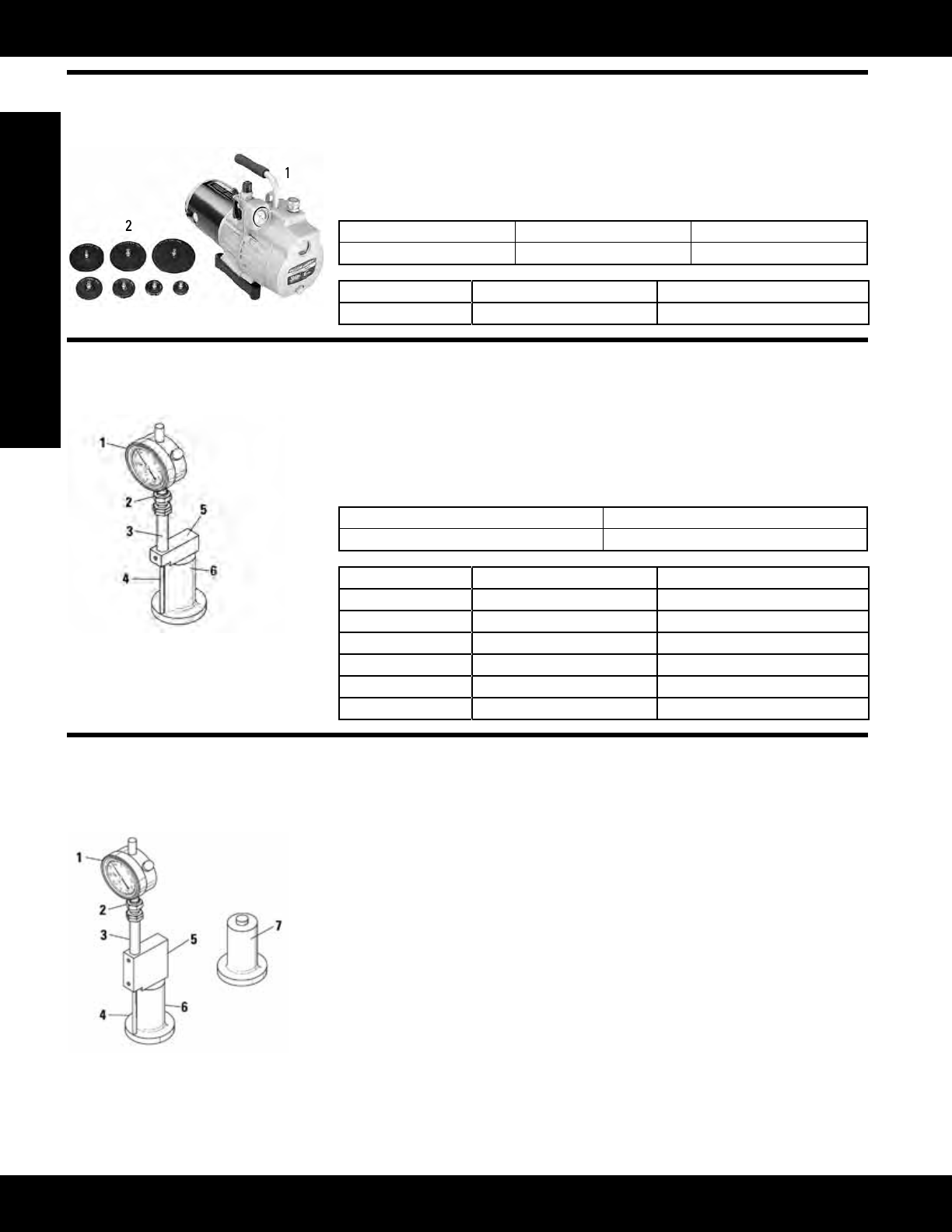

FT1741 Vacuum Tester
Model: 3612, 3616
Warranty: None
• Usedtocheckforleaksbetweenvalvefaceandseatoncylinderheadsafter
valvesandseatshavebeengroundandvalvespringsassembled
• Consistsofvacuumpumpwithconnectingpartsandsetof8fabricatedadapt-
erstotoverallsizesofvalvesusedintheCat
®
Engine line
Item Description Quantity
2 Fabricated Adapters 8
Item Part Number Description
1 208-1356 Vacuum Pump
148-2997 Valve Recession Tool Kit
Model: 3600 and G3600 Engines
Warranty: Six Months
• Usedtodetermineactualvalveandvalveseatwear
• Canbeusedwithoutremovingrockerarms(reducesenginedowntime)
• Can be used with 369-2607 Digital Indicator
Reference
NEHS0710, Tool Operating Manual
Item Description
3 Body(notservicedseparately)
Item Part Number Description
1 6V-3075 Indicator - Dial
2 5P-4814 Collet As - Clamp
4 146-3271 Extension Rod
5 146-3270 Base Assembly
6 146-2738 Projection Gauge Block
-- 148-2997 ValveRecessionToolKit
Valve Recession Tooling
Essential Tool
Model: C175 Engines
Warranty: Six Months
• Usedtodetermineactualvalveandvalveseatwear
• Usedwithfollowingpartsfrom148-2997ValveRecession
Kit:
-Dial Indicator (1)
-Clamp Collet (2)
-Body (3)
-Extension Rod (4)
• Can also be used with 369-2607 Digital Indicator (not part
of group)
• Allowsmeasurementswithoutremovingrockerarms
(reduces engine downtime)
• 326-7689ProjectionGaugeBlock(6)usedforintakevalves
• 326-7693 Projection Gauge Block (7) used for exhaust
valves
• Projection gauge blocks are laser etched with part num-
ber,intakeorexhaust,anddimensionforeasyidentica-
tion
(Continued)
