Caterpillar Engine Tools Cat Overhaul 3512 Page 372

Operation and Maintenance Manual
2600073
2600086
3-372
Engine Tools
Engine Lifting and Positioning

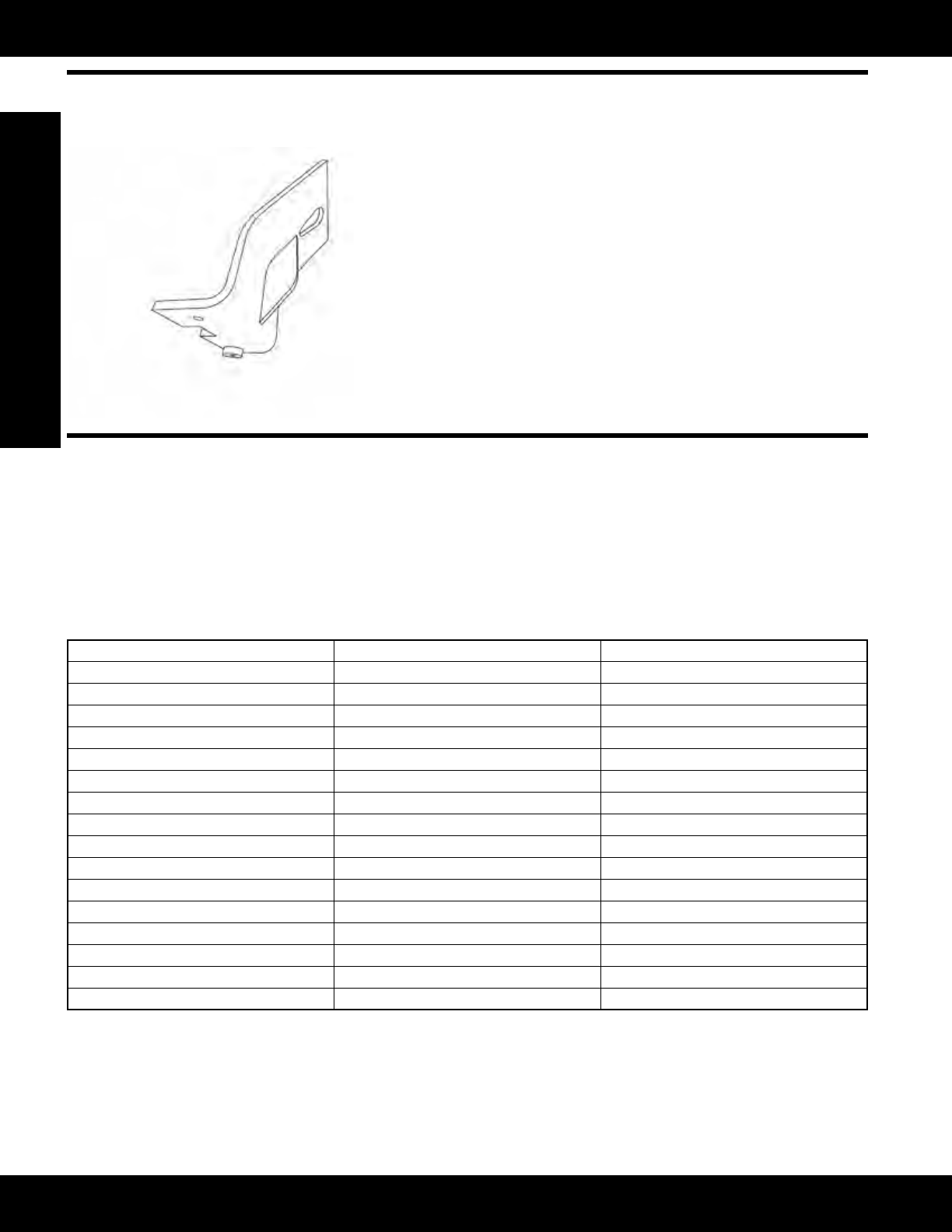

FT2792 Engine Lift Bracket
Model: 3512 Engine
Warranty: None
• Used to lift the engine out of the D10R track-type tractor
using 2 normal lift points at front of engine and this bolt-on
bracket at rear of engine
• Bracket mounts to top, rear side of engine (use bolts sup-
plied with engine)
• Only 1 bracket required
Motor Grader Rear Engine Support Groups
Model: All G-Series Motor Grader Engines
Warranty: Six Months
• UsedtoserviceallG-SeriesMotorGraderengines
• Allowremovalofmotorgradertransmissionwithoutremovingengine
• Savesabout4hoursoflabor
• Motor grader model serial number listed in chart coincides with release of load sensing hydraulic systems, threaded gland
hydraulic cylinders, and corporate electrical systems
• Contain2supportassemblieswhichbolttobothsidesofywheelhousingtosupportengine;forcingboltandlocknutprop-
erly position support assembly, which is attached to rear of engine, against top surface of motor grader frame
Model Serial Number Tool Group
12G 61M-12027&Up A
3WC1067&Up A
14G 96U-7046&Up D
3L193&Up D
16G 93U-2679&Up E
120G 87V-8360&Up C
11W-1251&Up C
61W591&Up C
2AB62&Up C
130B 74V-2321&Up B
12W-1082&Up B
59K82&Up B
140G 72V-10334&Up A
13W741&Up A
50H-1261&Up A
160G 4JD141&Up A
(Continued)
