Caterpillar Engine Tools Cat Overhaul 3512 Page 18

Operation and Maintenance Manual
2586816
2586836
3-18
Engine Tools
Air Induction

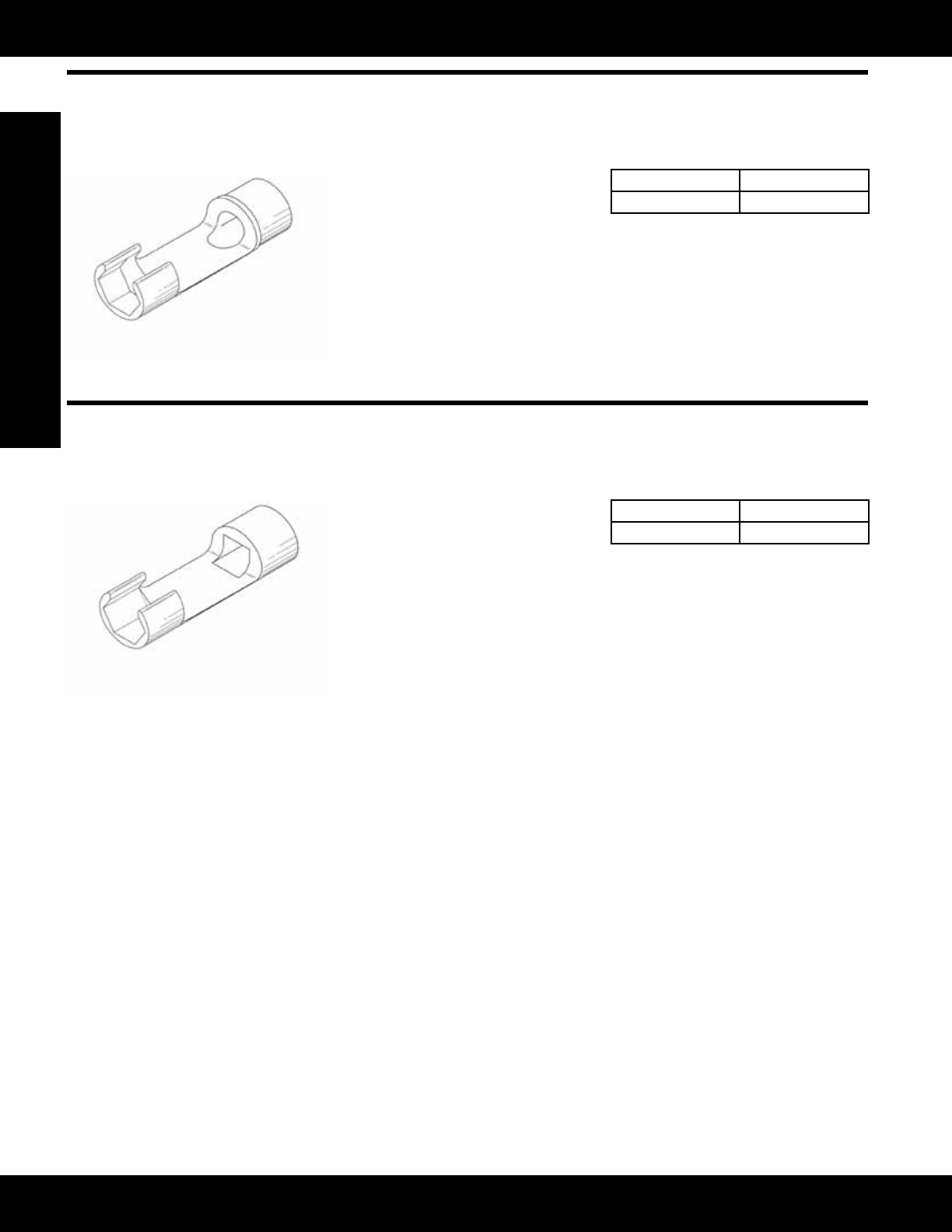

349-3548 Slotted Socket
Essential Tool
Model: All Tier 4 Engines
Warranty: Six Months
• Usedtoremoveandinstallame
detect sensor on Cat
®
Tier 4 Engines
with Caterpillar
®
Regeneration
System (CRS) heads
• Usedwith3/8inchsquaredrive
wrench
• Cutout,deep-welldesignprovides
clearance for sensor connector
• Fivepointhex(16mm)designhelps
preventsensordamage
• Socket is 78 mm (3.0 in) long with a
durablechromeplatednish
Part Number Description
349-3548 Slotted Socket
342-9516 Slotted Socket
Essential Tool
Model:330EExcavators
Warranty: Six Months
• Usedtoremoveandinstall320-0576
Engine Temperature Sensor
• Usedwith3/8inchsquaredrive
wrench
• 17 mm deep-well socket with cut
outprovidesclearanceforsensor
body
• Five-pointhexgripssensorbase
helpingpreventdamagetosensor
• Chrome plated for corrosion resis-
tance
• Length: 78 mm (3.07 in)
Part Number Description
342-9516 Slotted Socket
