3-257

Engine Tools

Fuel System Repair and Adjust

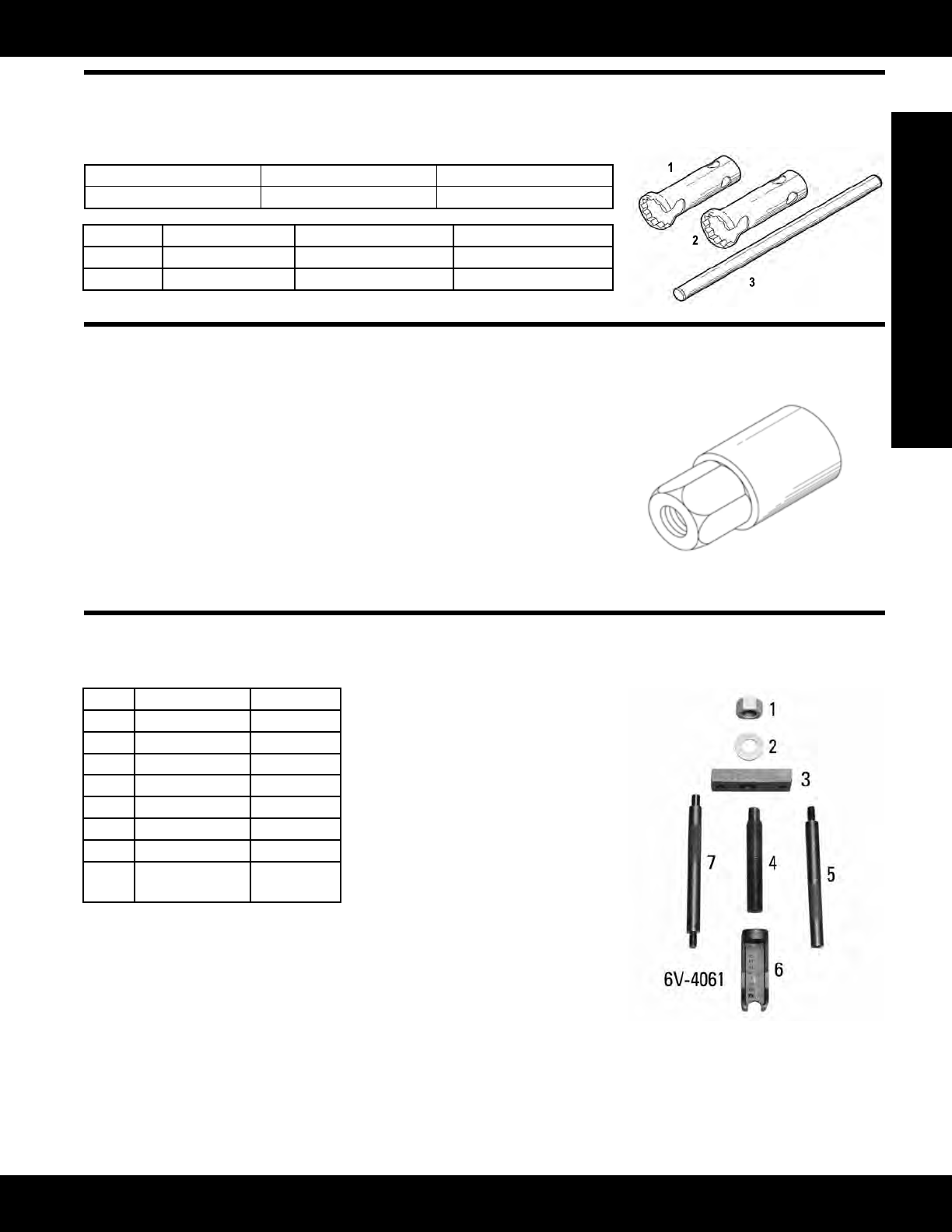

Fuel Injection Valve Nut Removal Tools

Model: Cat

Engines

Warranty: Six Months

• Usedforfuelinjectionvalvenutremovalonearlyengines

Item Description Size

2 Wrench 17/8 in hex

Item Part Number Description Size

3 4B-9918 Handle --

1 9B-2029 Wrench 1 3/4 in hex

FT1533 Nozzle Adapter

Model: Cat

Engines

Warranty: None

• Recommendedforusewith1P-0074SlideHammerfornozzlesthataredifcult

toremove

6V-4061 Nozzle Puller Group

Model: D5B, D6D, 225B, 225B-3208, 3208, 518

Warranty: Six Months

• 6V-4061 Nozzle Puller Group used to

removedirectinjectionfuelnozzles

from 1100, 3100, 3200 and 3300

Series DI Engines

Item Part Number Description

1 1B-4206 Nut

2 2S-5658 Washer

6V-4153 Plate

6V-4152 Screw

5 6V-4150 Leg

6 6V-4149 Jaw

7 6V-4151 Leg

-- 6V-4061 Nozzle Puller

Group

Also part of 6V-4061 Puller Group
