3-61

Engine Tools

Crankshaft, Main Bearings and Flywheel

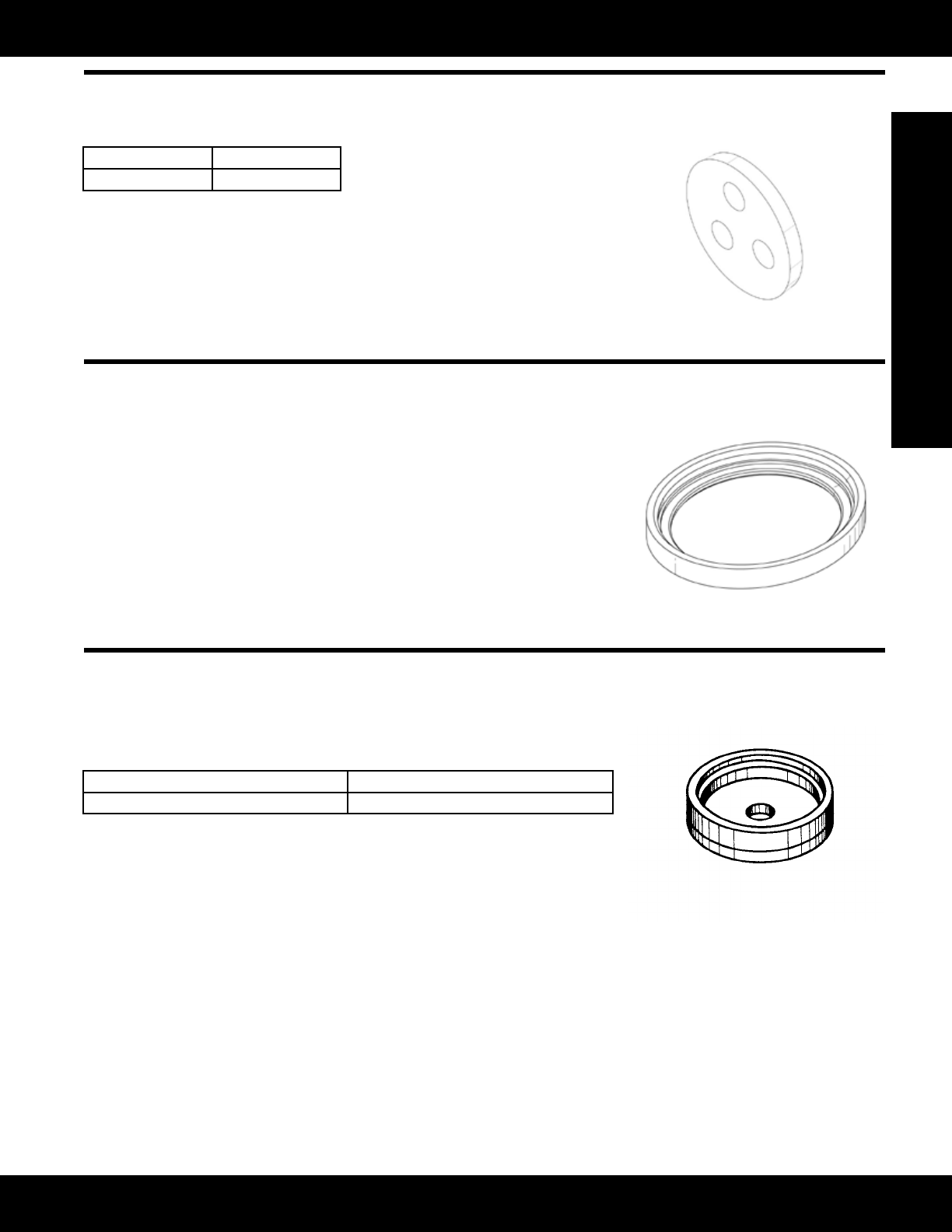

9U-6200 Alignment Group

Model: 3056 Engines

Warranty: Six Months

• Usedtoinstallfrontcover(correctly

aligns it for easier installation)

• Designedtotaroundcrankshaft

and into seal recess — centers

coveroncrankshaft

• Preventssealdamageduringinstal-

lation and helps assure uniform

contactofseallip—twoadvan-

tages that extend seal life

Reference

SENR5555,ServiceManual

Part Number Description

9U-6201 Alignment Group

FT2806 Seal Installer Ring

Model: 3054, 3056 Engines

Warranty: None

• Used to install rear crankshaft oil seal

• Material: SAE1018 steel

9U-5114 Seal and Wear Sleeve Installer

Model: D346, D348, D349

Warranty: Six Months

• Requiredtolocate7C-7474SealandWearSleeve,Rear,onD346,D348andD349

Engines, 5.4 bore, 60° Vee

Part Number Description

9U-5114 SealandWearSleeveInstaller
