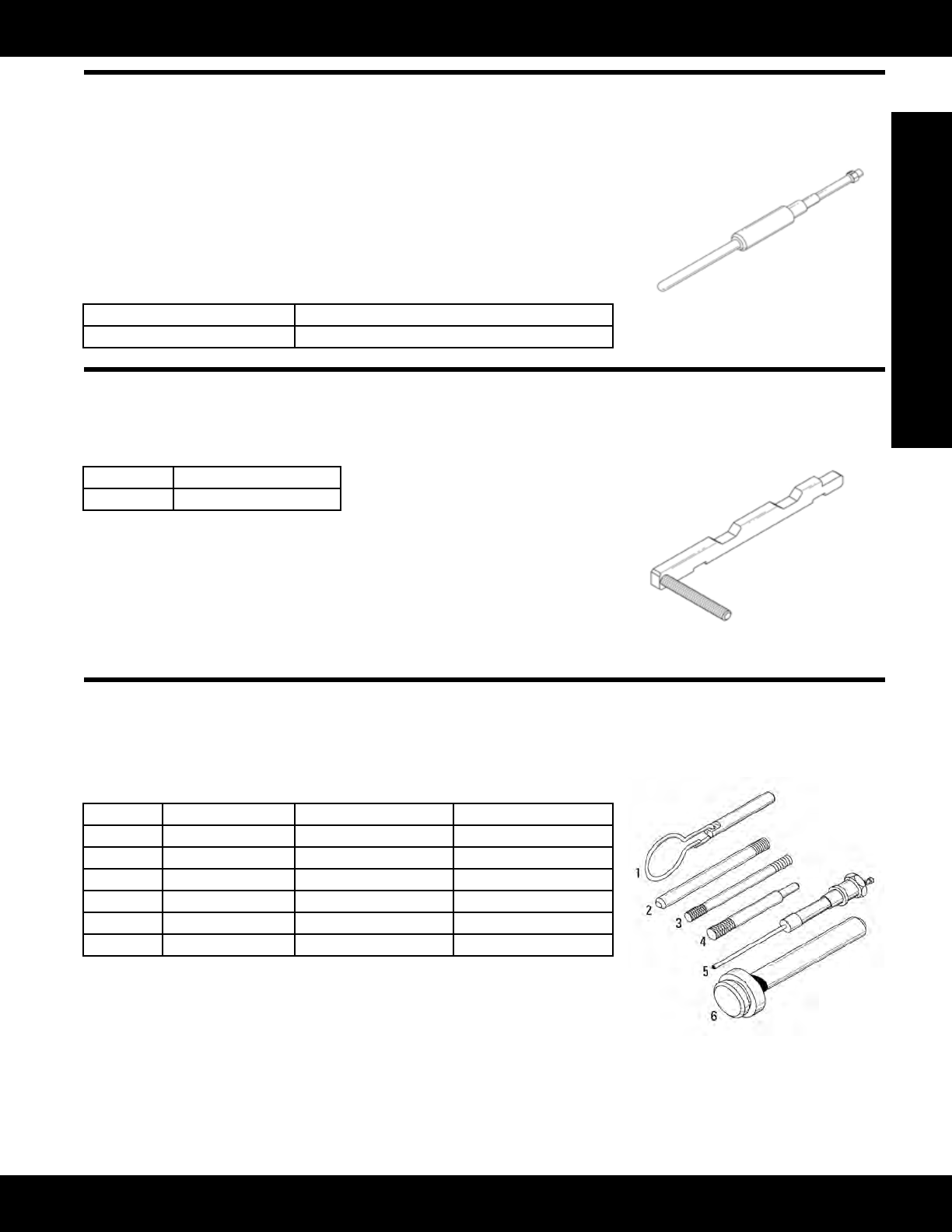

Engine Tools

Fuel System Repair and Adjust

127-1069 Timing Pin

Model: 3054 and 3056 Engines

Warranty: Six Months

• Used to set engine piston at 100° before top dead center (BTDC) when timing

Lucas fuel pump (at this location, the piston can be more accurately set to a

specicposition)

• Whistleontopoftimingpinconrmsthatpistonisoncompressionstroke

• Installs into nozzle bore and is held in place with nozzle clamp

• Material: SAE 1020 steel

Reference

SENR6525, Supplement, Lucas Fuel System

Part Number Description

127-1069 Timing Pin

329-6925 Timer Tool Assembly

Essential Tool

Model: 3054B Engine

Warranty: Six Months

• Usedtoremoveandinstallbalancer

(maintains timing)

• Also used during disassembly and

assembly of balancer

• Black oxide coated for corrosion

resistance

Part Number Description

329-6925 Timer Tool Assembly

Timing Setting Tools

Essential Tool

Model: 3054E and 3056E Engines

Warranty: Six Months

• Used to set timing of engine

Item Part Number Description Engine Used On

1 230-6283 Locking Pin 3054E

2 231-8848 Balancer Fitting Pin 3054E

3 231-8849 Locking Pin 3054E

4 230-6284 Locating Pin 3054E

5 226-2270 Timing Piston 3056E

6 226-2268 Plug Installer 3056E
