Caterpillar Engine Tools Cat Overhaul 3512 Page 4

Operation and Maintenance Manual
2586364
2641610
3-4
Engine Tools
Air Induction

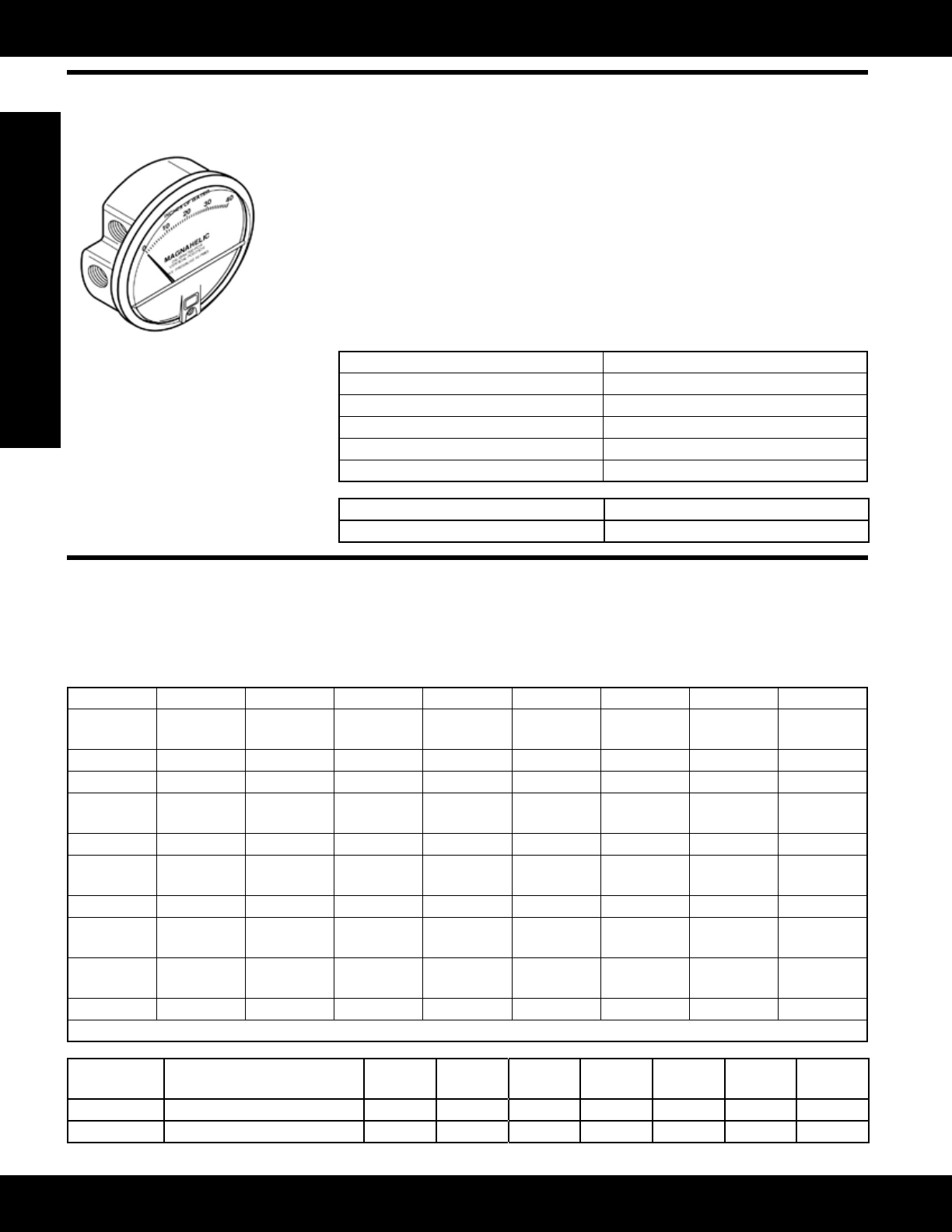

152-2067 Differential Pressure Gauge
Model: Multiple Engine Models
Warranty: Six Months
• Used to monitor aftercooler pressure drop in applications with crankcase fumes
recirculation
• Minimize risk of engine reliability problems
• Helps eliminate premature plugging of aftercooler cores
• Increaseservicelifeofaircleaner
• Eliminates need for using two gauges
• Installs easily across air side of aftercooler core
• Measuresdifferentialpressurecontinuously,regardlessofuctuationinsystem
pressure
• For maximum accuracy, calibrate gauge in position used
• Magnahelic gauge with high pressure option
Accuracy ±2% of full scale
Weight .51 kg (18 oz)
Range 0 - 101 cm (0 - 40 in) of water
Minordivisions 1.0
Temperature range (-6° to 60° C) 20° to 140° F
Maximum pressure 551 kPa (80 psi)
Part Number Description
152-2067 Differential Pressure Gauge
Turbocharging Reconditioning Tools
Model: Multiple Engine Models
Warranty: Six Months
Thetoolsneededtoserviceaparticularturbochargercanbedeterminedfromthefollowingcharts.
Reference
SMHS6854, Special Instruction
Part No. Description 3LK 4, 4A, 4C 4B, 4D V4HD, V4MD 4MD, 4ME 4HD F, E
FT0165¹ Fixture
(Modied)
X X X X X X X
FT0165 Fixture X X X X X X
FT0168 Adapter X X
FT0170 Support
Screw
X X X X X
FT0174 DriverTool X X X X X
FT0175 Expander
Sleeve
X X X X X
FT0623 RemovalTool X X
FT0626 Spacer
Block
X X X X X
FT0745 Pliers, Modi-
ed
X X X X X X
FT0808 Adapter X X X
¹FT0165(Modied)replacesFT0165TurboFixture
Part Number Description 3LK 4 4A 4C 4B 4D
V4HD
V4MD 4MD 4ME 4HD F E
9S-6343 Cartridge Fixture
1
-- -- -- -- X X X
9S-6363 Fixture Group
2
-- -- -- -- X X X
(Continued)
