3-263

Engine Tools

Fuel System Repair and Adjust

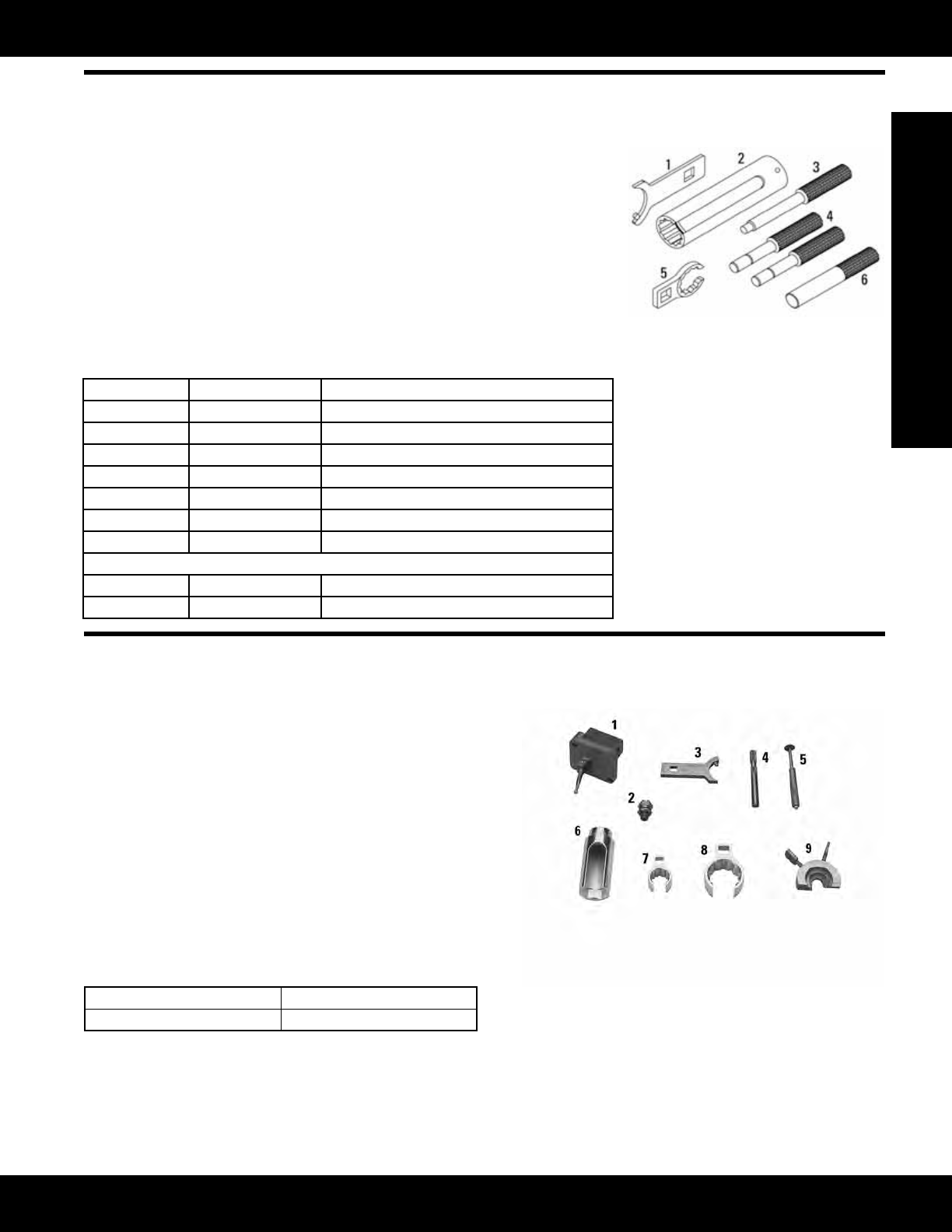

9U-5127 Tool Group, 3408 PEEC, and 3412 PEEC

Model: 3408 and 3412 PEEC Engine

Warranty: Six Months

• Replaces discontinued 4C-9579 Tool Group

• Used to test and adjust fuel pump timing on 3408 and 3412 PEEC Engines

• Increased accuracy

• On-engineeldadjustmentsexpandcapabilityofeldservicemechanics

• Increasesservicerevenueopportunities

• Durable,highqualitydesign—convenientcaseprotectstoolinvestment

• 90 mm (3.54 mm) long timing pin

• Two 89 mm (3.50 in) long rack zero pins

• Modied19.05mm(3/4in)crowsfootwith3/8inchdrive

• Slotted15/16inchsocketwith1/2inchdrive

• Solenoidspannerwrenchwith3/8inchsquaredrive

• 6V-2112 Pin for Haliburton Engines

Item Part Number Description

1 9U-5120 Spanner Wrench

2 136-3124 Socket-Sensor (rack)

3 6V-2112 Pin

3 and 6 6V-4186 Pin - Fuel Pump Timing

4 4C-9581 Pin

5 4C-9582 Crowfoot Wrench, 19.05 mm ( 3/4 in)

-- 9U-5127 Tool Group, 3408 PEEC, and 3412 PEEC

Not Shown

4 6V-3073 Case - Plastic

-- 9U-5128 Foam

9U-5219 Tool Group 3406 PEEC Engines

Model: 3406B PEEC Engine

Warranty: Six Months

• Replaces discontinued 1U-5540 Tool Group (to update for-

mer 1U-5540, order 9U-5103 Slotted Socket, 9U-5225 Foam

Block, and NEEG2516 Decal

• Used to set clearance dimension between engine speed

sensor and 4W-2485 Slotted Retainer (pulse wheel)

• Establish zero rack position, necessary before discontin-

ued 8T-8697 ECAP can be used to calibrate rack position

sensorwithoutbreakinggovernorseals

• Removeandinstall6T-9675Solenoid(fuelshutoff)

• Set timing position sensor, necessary before 8T-5282

DDT and/or discontinued 8T-8697 ECAP can be used to

calibrate timing position sensor

• Removeandinstallwatertemperaturesensor

Reference

SEHS8746, Special Instruction

Item (not shown) Description

NEEG2516 Decal

(Continued)
