Caterpillar Engine Tools Cat Overhaul 3512 Page 73

Operation and Maintenance Manual
2588919
2588934
2588950
3-73
Engine Tools

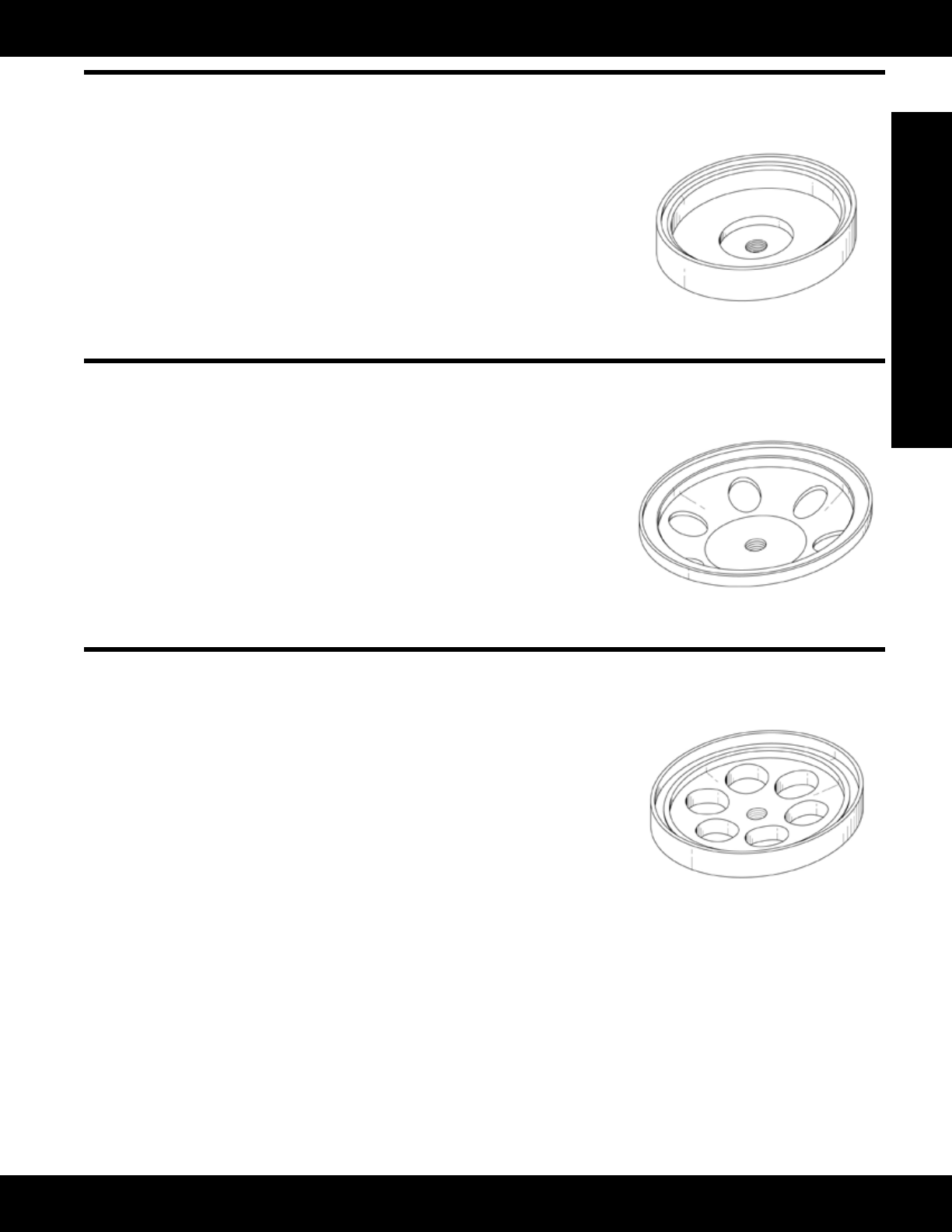

Crankshaft, Main Bearings and Flywheel
FT0807 Driver Body
Model: D9H
Warranty: None
• Used to install front oil thrower on crankshaft of D353 Engine
• UsedwithFT0108DriverHandle
• Material: SAE 1020 steel
FT0107 Driver Body
Model: 641, 650, 651, 657, 660, and 666 Tractors, 5.4 inch Bore
Warranty: None
• Used to install oil thrower on crankshaft of 13.72 cm (5.4 in) bore V8 engines
FT0885 Driver Body
Model: D10, 824C, 834B, 980C, 980F
Warranty: None
• Used to install oil thrower for crankshaft rear seal on 13.72 cm (5.4 in) bore 60°
V8 and V12 Engines
• UsedwithFT0108DriverHandle
• Material: SAE 4140 steel
