Caterpillar Engine Tools Cat Overhaul 3512 Page 387

Operation and Maintenance Manual
2667902
2668622
2668639
3-387

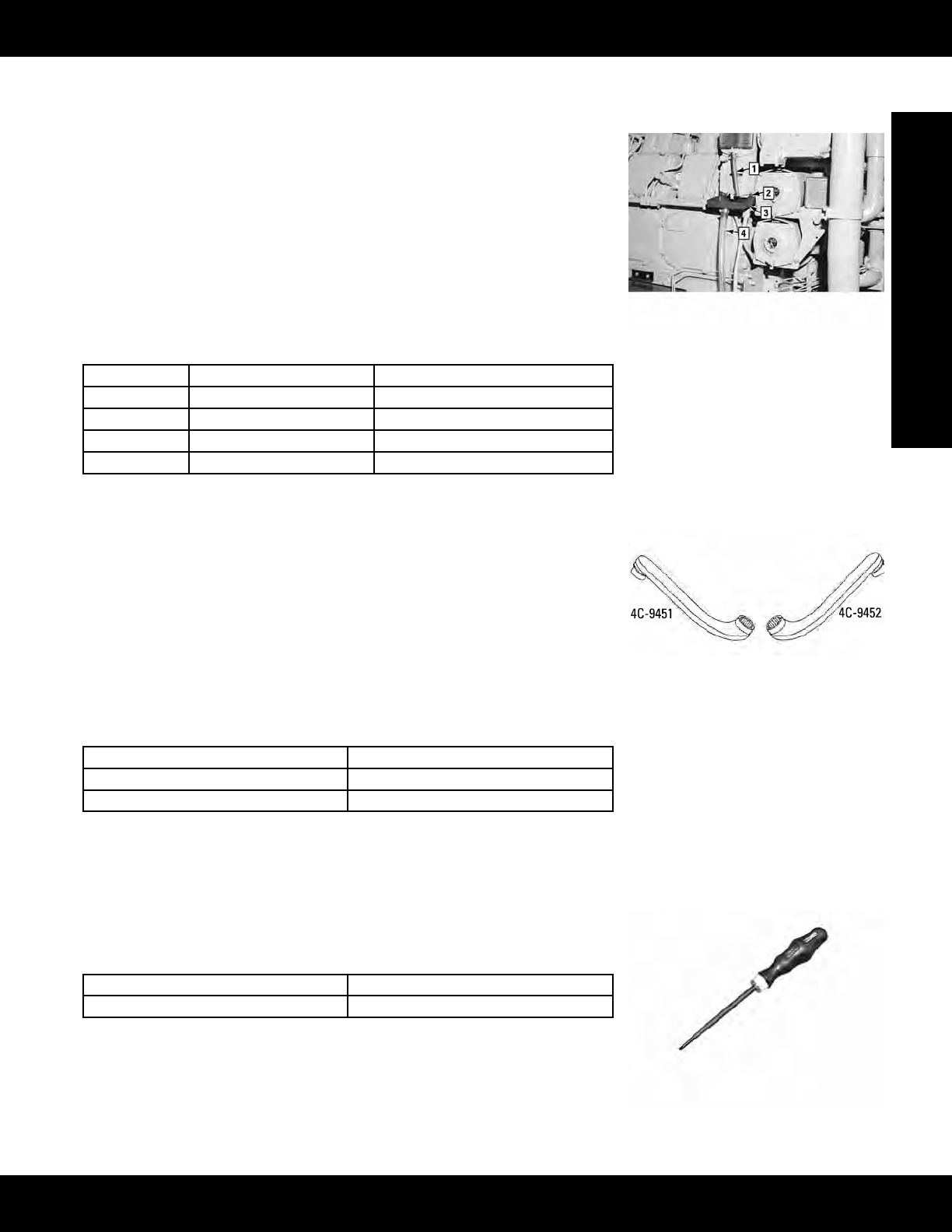

Engine Tools
3600 Engine Tools
4C-6173 Fuel Drain Tray Assembly (Part of 9U-5105 Group)
Model: 3600 Engines
Warranty: Six Months
• Usedtodrainfuelfromlterhousing(keepsengineclean,capturesallfuel,
reduces cleanup costs)
• 7V-0198Hoseand4C-6173Traycatchesfuel;5N-5566Hoseroutesittoacon-
tainer(trayattachestolterhousingwithtwo4F-4879Bolts)
• 1U-9823Scoop,from1U-9824OilDrainToolGroup,providesconvenientwayto
carryusedlterstoadisposalarea
• Allowslterreplacementwhileengineisrunning
• Draintraymadefromheavy-gaugesheetmetalwith25mm(1.0in)spout
References
SENR3594,ServiceManualModuleofSENR3590ServiceManual
SENR3600,ServiceManualModuleofSENR3595ServiceManual
SENR4259,ServiceManualModuleofSENR4255ServiceManual
Item Part Number Description
1 7V-0198 Hose (not part of 4C-6173)
2 4F-4879 Bolt, (2) (not part of 4C-6173)
3 4C-6173 Fuel Drain Tray Assembly
4 5N-5566 Hose (not part of 4C-6173)
4C-9451 and 4C-9452 Idler Gear Wrench (Part of 9U-5105 Group)
Model: 3600 Engines
• Usedtoremoveandinstallboltsonrearidlergearof3612and3616Engines(ac-
cesses hard to reach bolts)
• Has3/4inchsquare-drivetoconnecttorquewrench
• Torque extensions of 101.6 and 254 mm (4 and 10 in) are etched on each wrench
so correct torque can be calculated (refer to SEHS7150 Special Instruction for
correct torque wrench setting)
• 2 opposite L-shaped wrenches
12-point socket: 1 1/8 inch
Squaredriveend:3/4inch
Reference
SENR3594,ServiceManualModuleofSENR3590ServiceManual
Part Number Description
4C-9451 Idler Rear Wrench
4C-9452 Idler Rear Wrench
Engine Tools
9U-6461 Phoenix Screwdriver (Part of 9U-5105 Group)
Model: 3600 Engines
Warranty: Manufacturer’s
• UsedtotightenPhoenixconnectorstocorrecttorque(preventsover-torqueand
thus damage to terminals)
• Length: 180.0 mm (7.0 in)
Part Number Description
9U-6461 PhoenixScrewdriver
